Bolt-Pip
Miniature
exterior semi-recessed architectural marker light, providing soft and low levels of light for
pathways to assist with wayfinding.
Product
Description

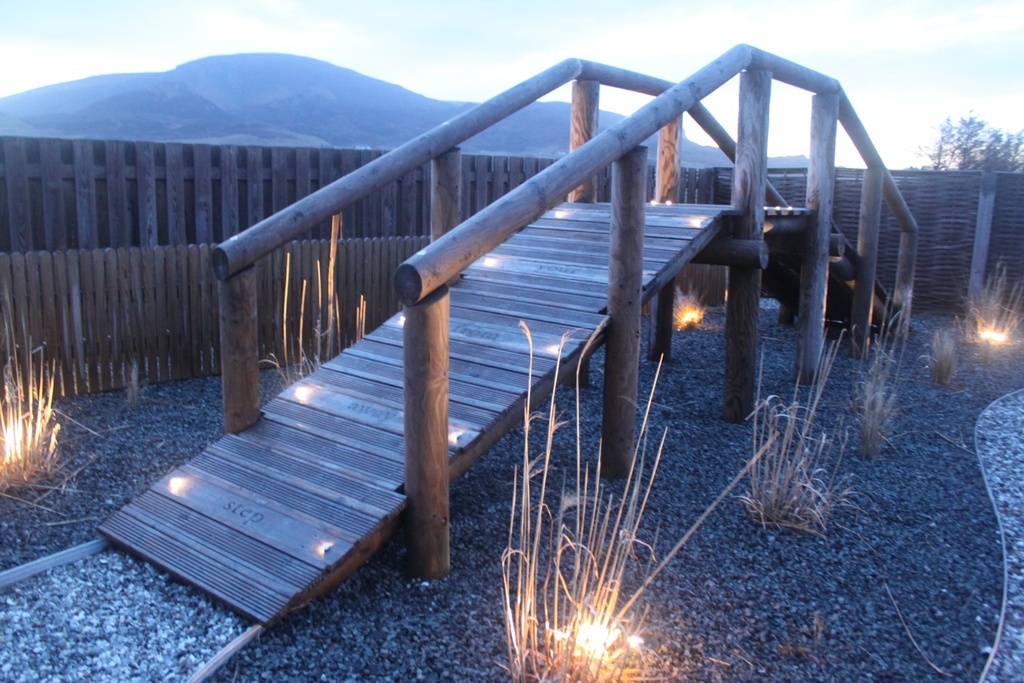

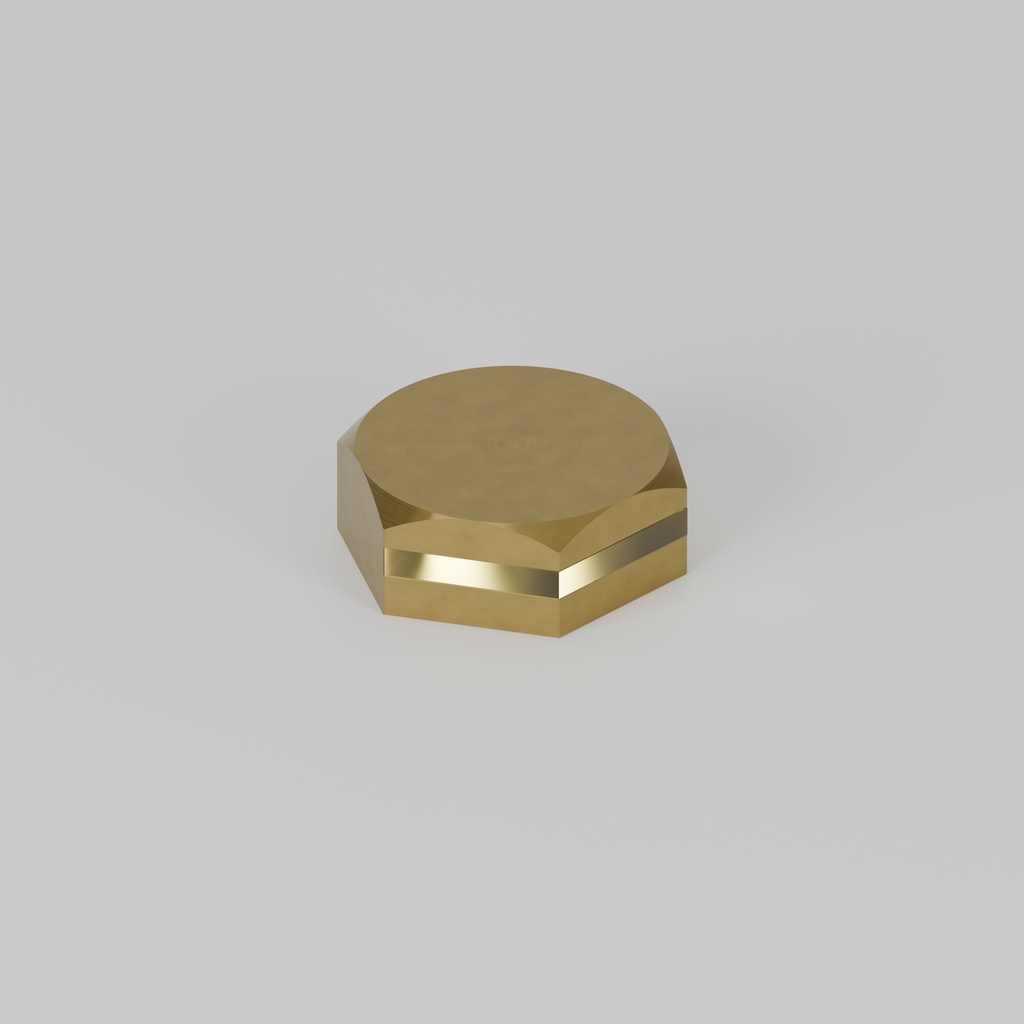

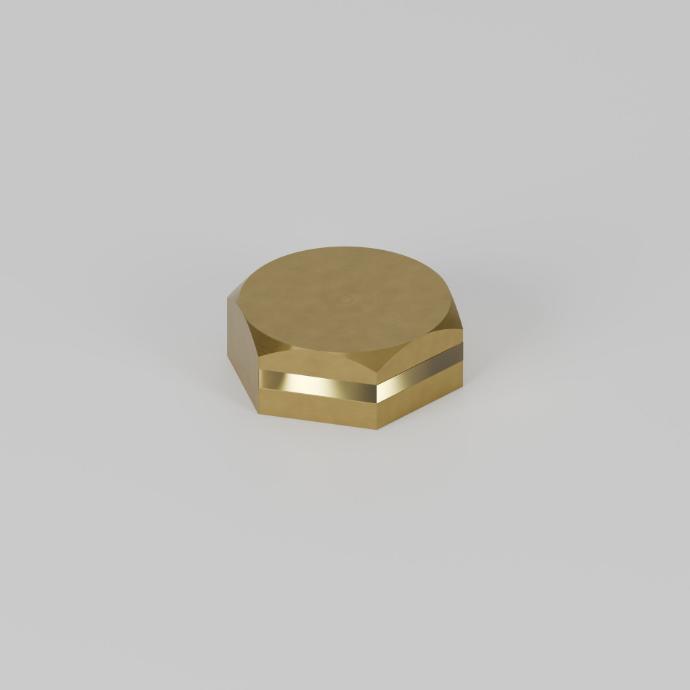

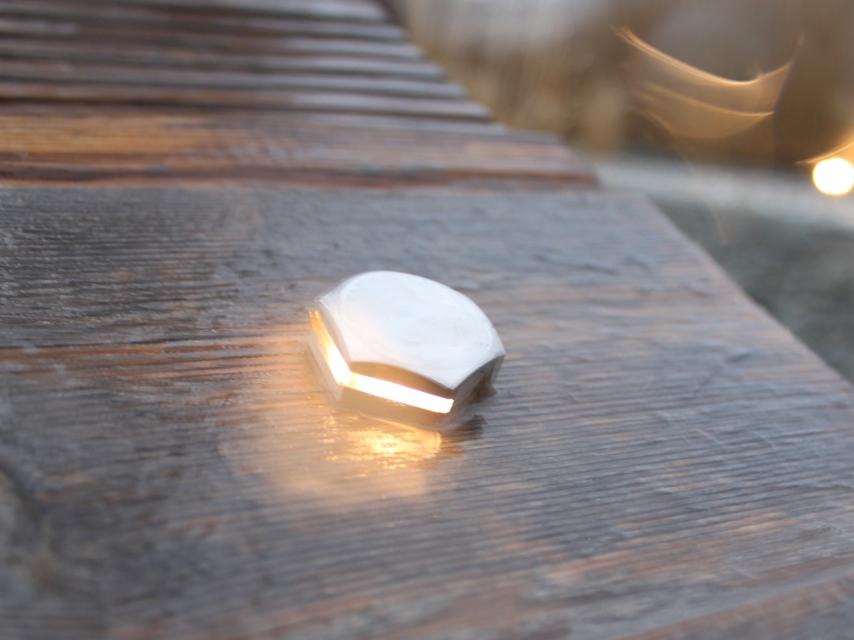

The Bolt-Pip is
a miniature IP66 rated marker light. Machined from Brass or 316

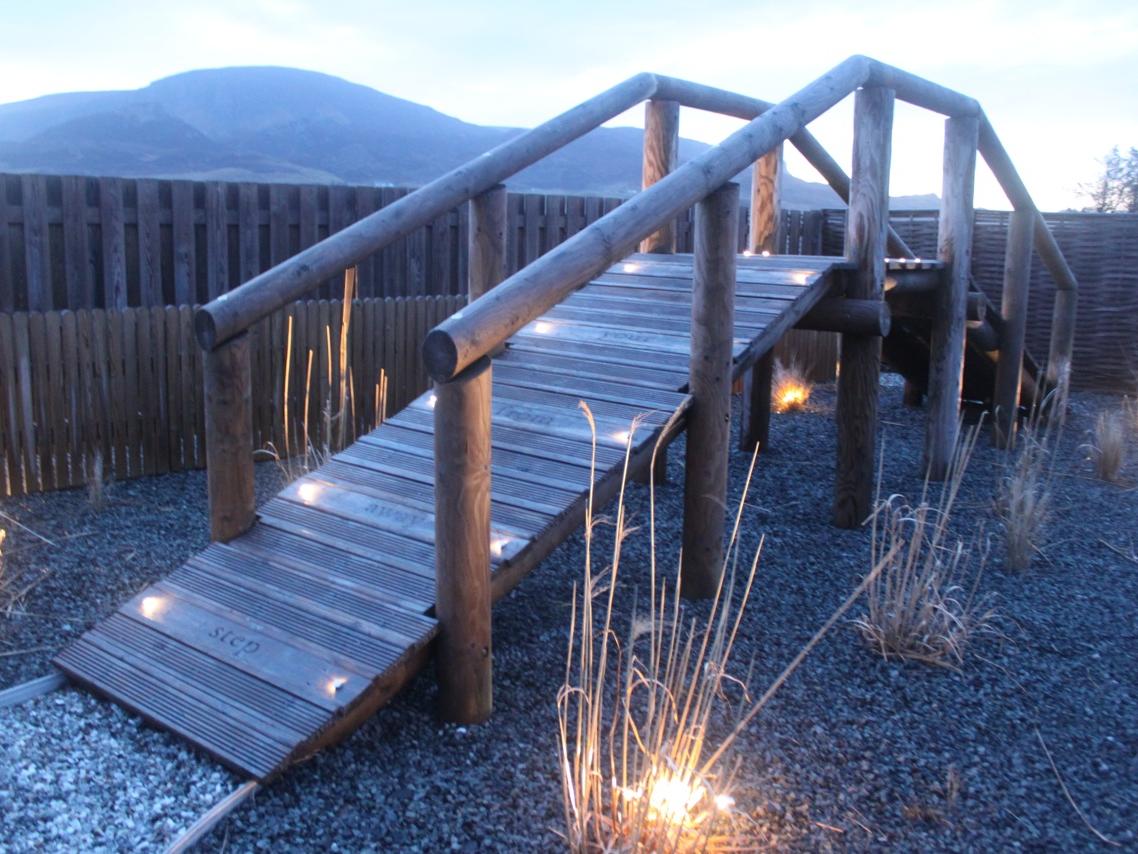

Stainless Steel for enhanced durability. It is useful for various applications
such as pathway and step lighting and can be used both internally or
externally.
Key Features
• Robust
construction: made from Brass or 316 Stainless Steel. Specialist finishes
available on request.
• Low levels of
light distribution for visual comfort.
• Advanced
dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
•
High-performance lighting: up to 97 CRI LEDs.
Miniature
exterior semi-recessed marker light, providing soft and low levels of light for
pathways to assist with wayfinding.
Product
Description
The Bolt-Pip is
a miniature IP66 rated marker light. Machined from Brass or 316
Stainless Steel for enhanced durability. It is useful for various applications
such as pathway and step lighting and can be used both internally or
externally.
Key Features
• Robust
construction: made from Brass or 316 Stainless Steel. Specialist finishes
available on request.
• Low levels of
light distribution for visual comfort.
• Advanced
dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
•
High-performance lighting: up to 97 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Star
Initial output
95CRI 1.4W 2.75Vf at 500mA
2700K • 139lm • 99lm/W
3000K • 148lm • 105lm/W
3500K • 158lm • 112lm/W
4000K • 169lm • 120lm/W
Light distribution
Elliptical 71.8° x 146º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP65

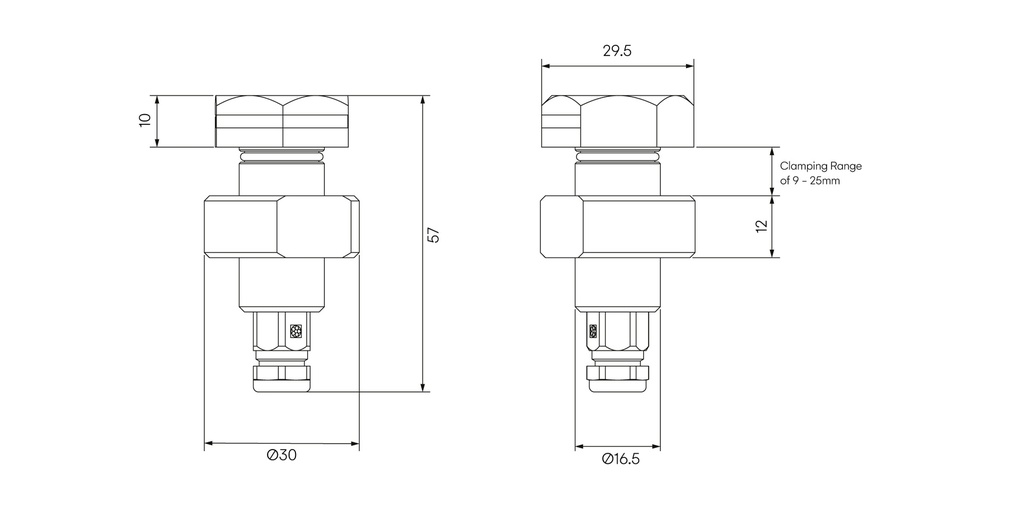

Weight
0.13kg
Lumen
Maintenance:L70 B05 >66,000 hours
IP Rating: IP65
Weight: 0.135kg
