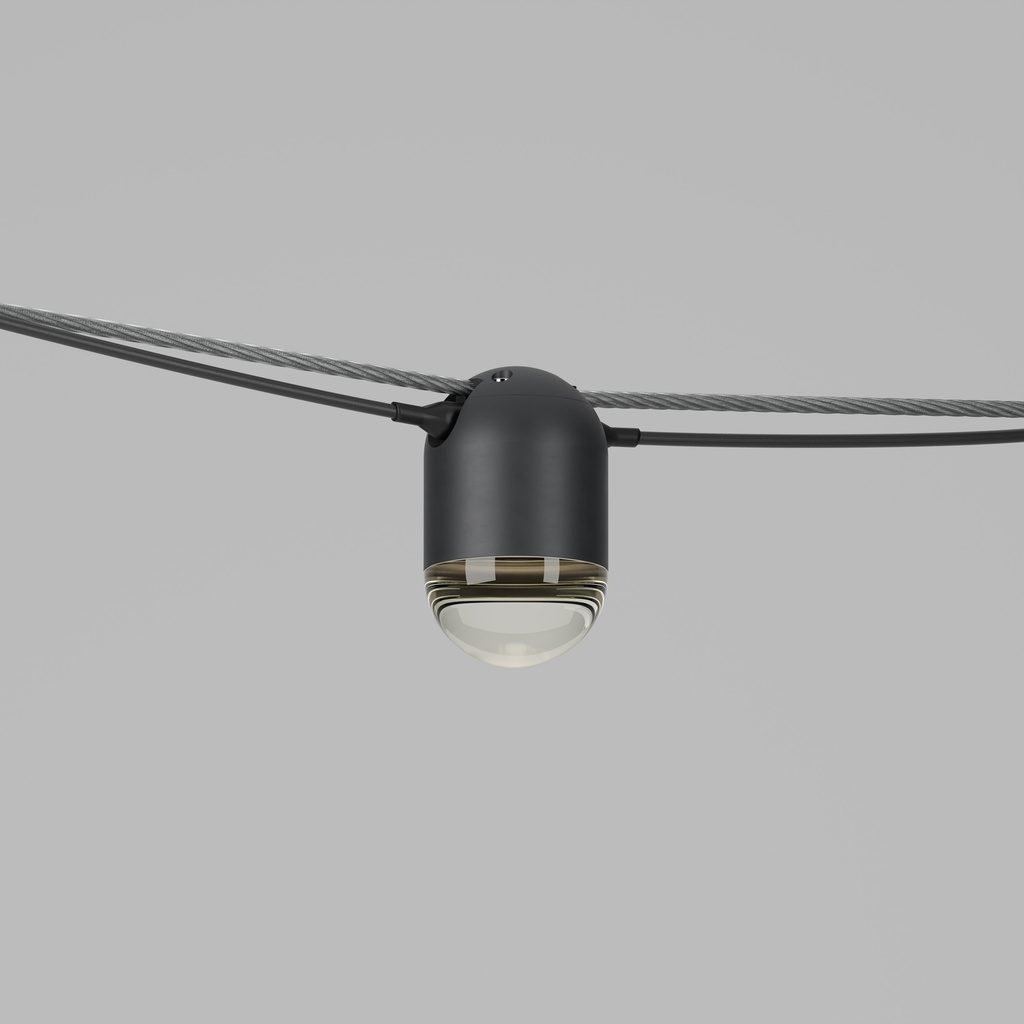

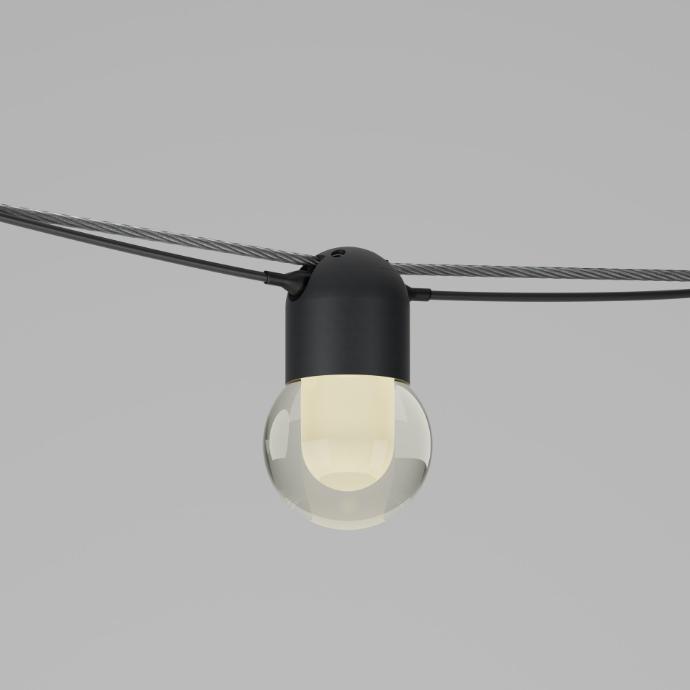

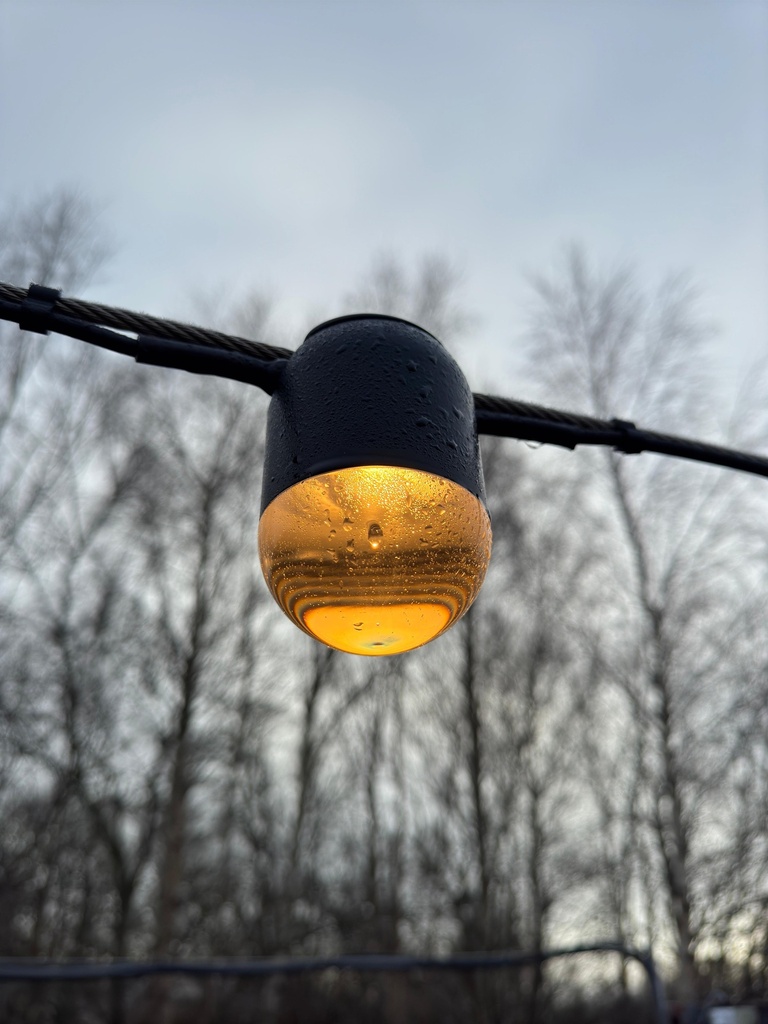

Mini G-Cat
Compact exterior lighting system, to enhance outdoor public spaces, pathways and more intimate hospitality and high end residential applications.
Product Description
The Mini G-Cat is an award winning IP66 exterior rated compact lighting system that offers versatile lighting options.

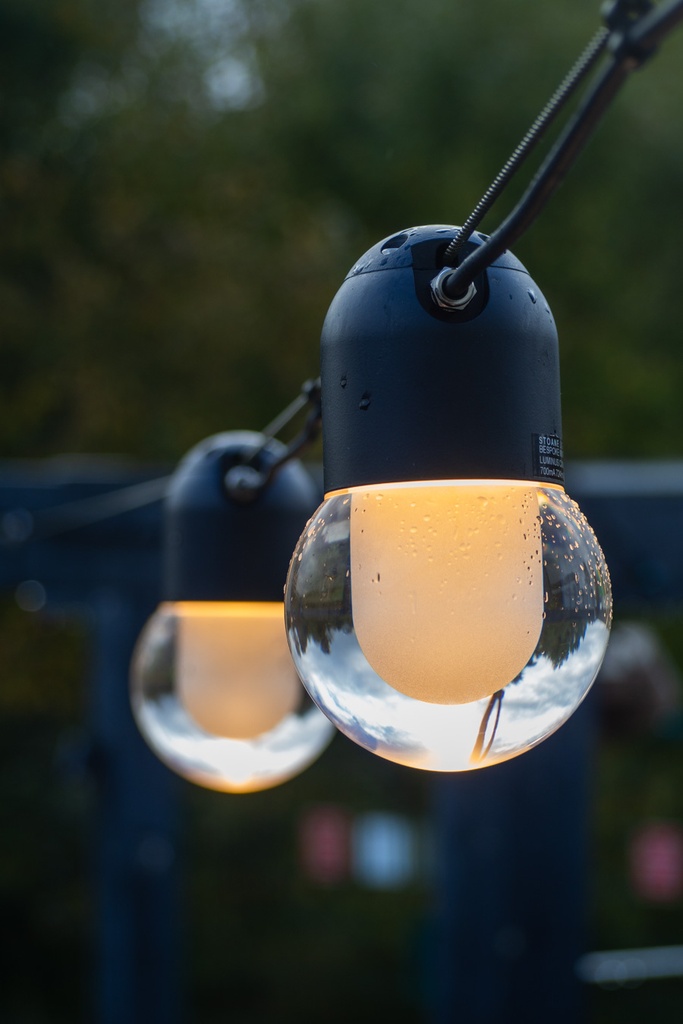

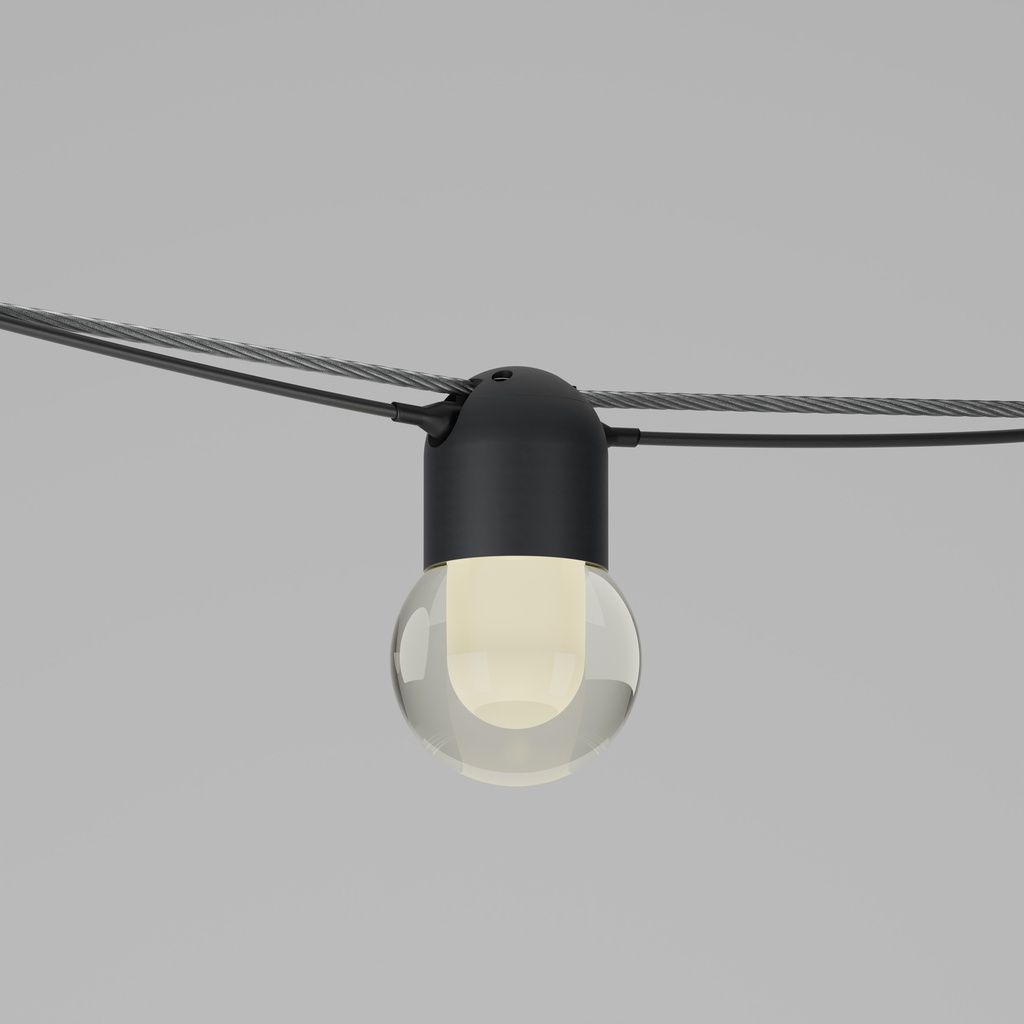

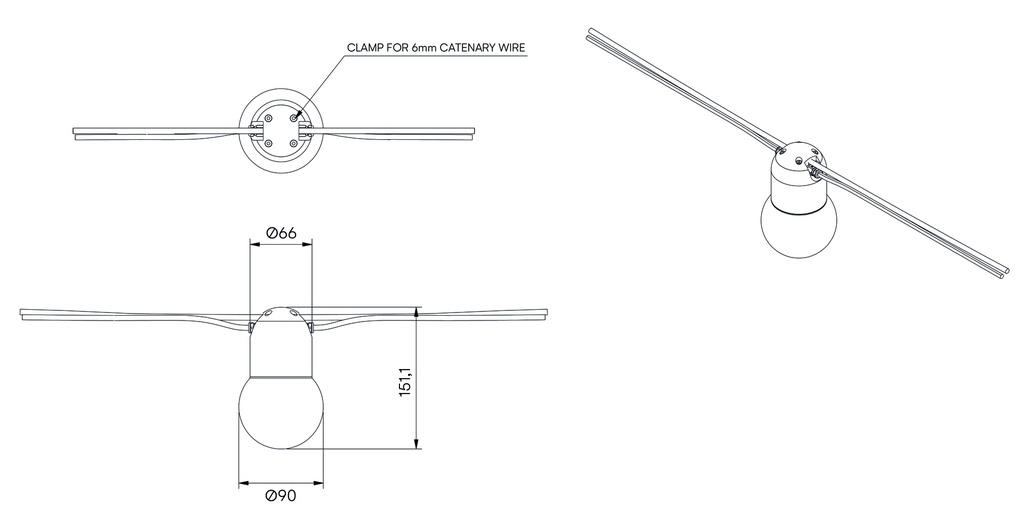

Clear polished, internally frosted Decorative Globe is joined by:

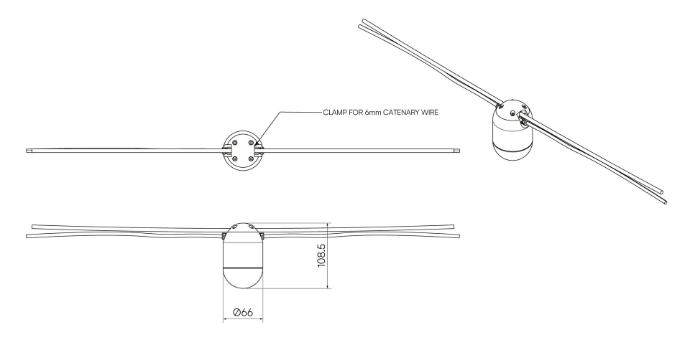

Low Glare A custom acrylic designed to minimise upward light spill. Suitable for Dark Sky applications.

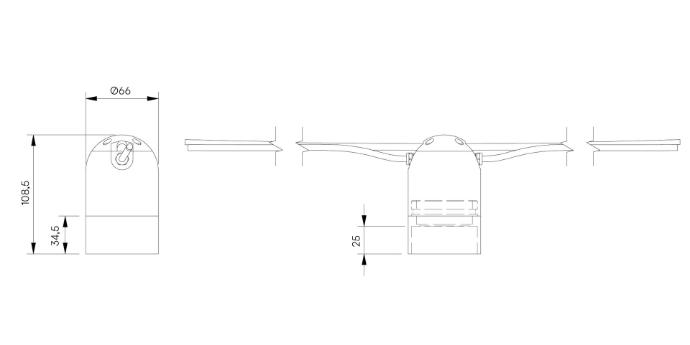

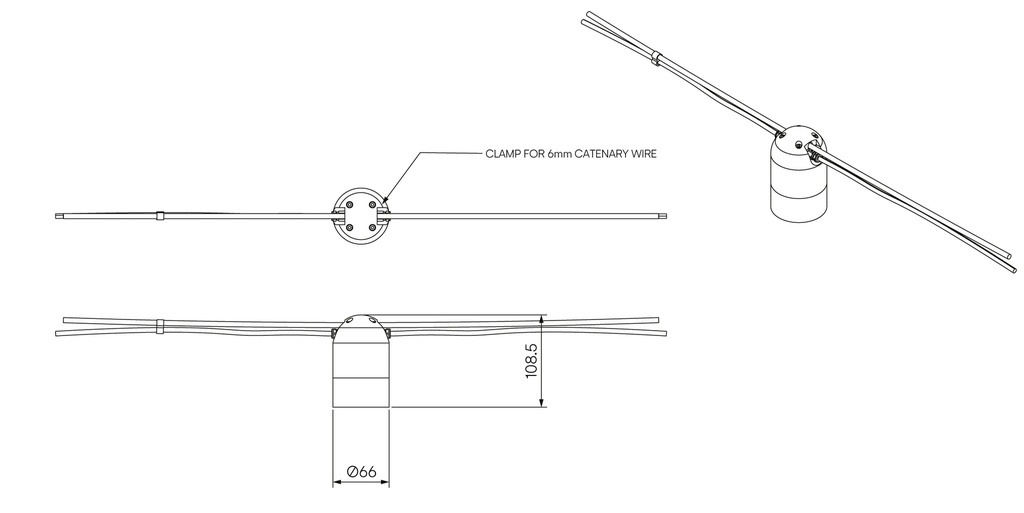

Technical Optics Very Narrow - Wide Flood options supplied with low glare snoot and frosted glass with provision for one lens accessory.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• IK10 rated.
• Adjustable beam angles with interchangeable optics with no upward light spill.
• Specialist Globe diffuser for decorative glow.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 90 CRI LEDs
Compact exterior lighting system, to enhance outdoor public spaces, pathways and more intimate hospitality and high end residential applications.
Product Description
The Mini G-Cat is an award winning IP66 exterior rated compact lighting system that offers versatile lighting options.
Clear polished, internally frosted Decorative Globe is joined by:
Low Glare A custom acrylic designed to minimise upward light spill. Suitable for Dark Sky applications.
Technical Optics Very Narrow - Wide Flood options supplied with low glare snoot and frosted glass with provision for one lens accessory.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• IK10 rated.
• Adjustable beam angles with interchangeable optics with no upward light spill.
• Specialist Globe diffuser for decorative glow.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 90 CRI LEDs
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
Mini G-Cat - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Technical
Supply

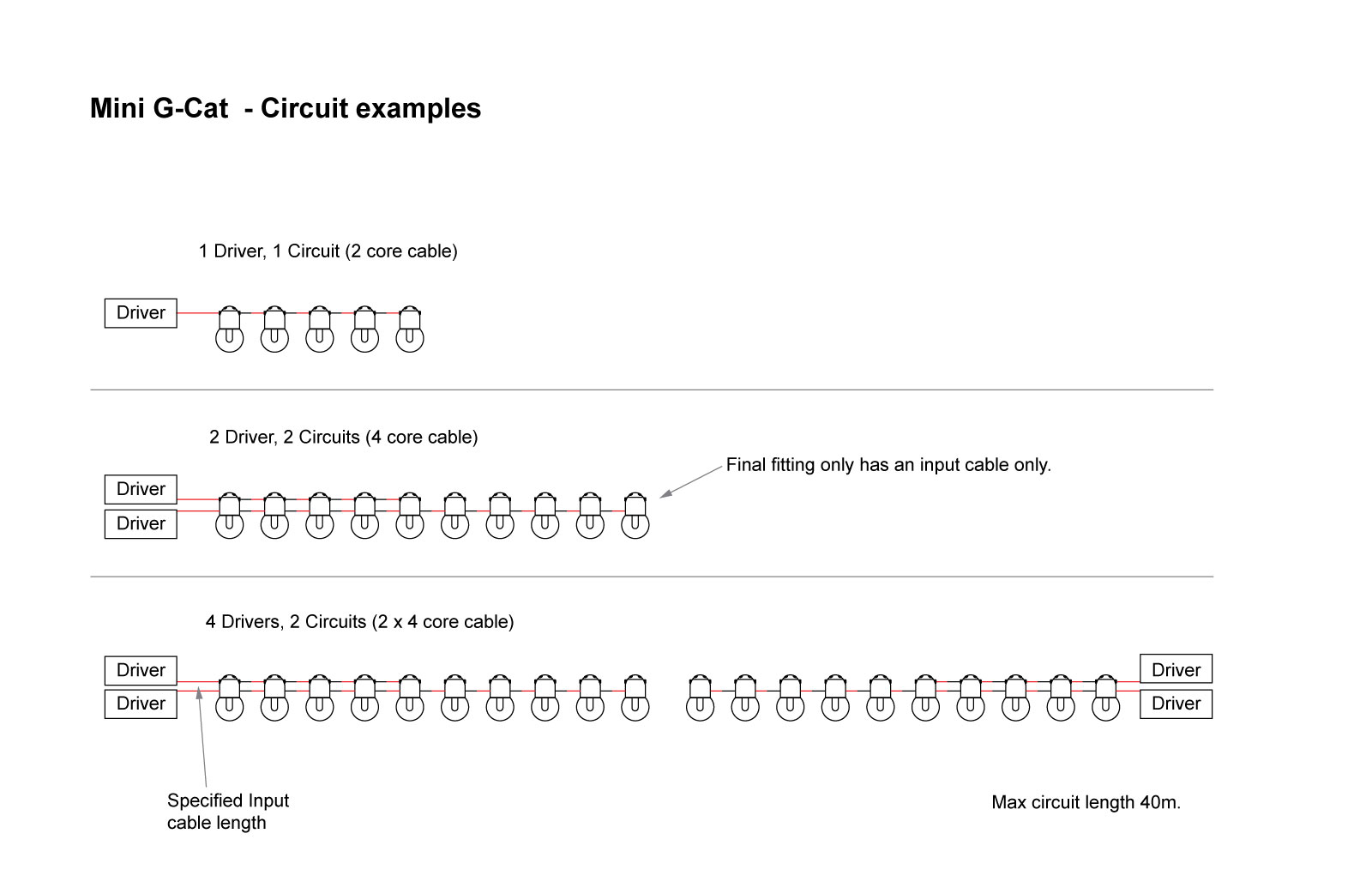

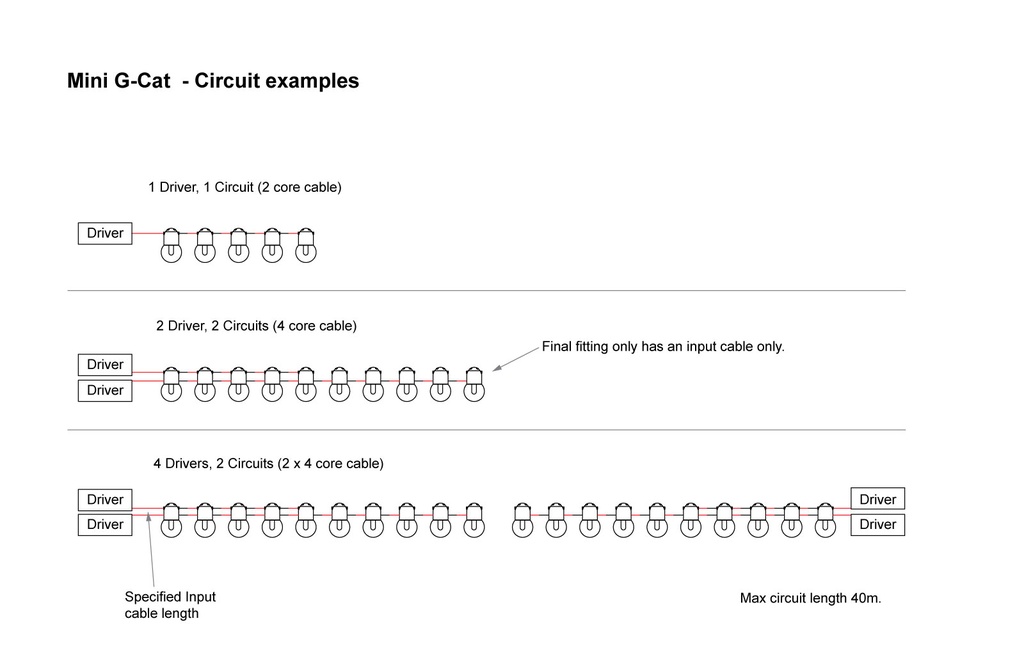

Remote constant current LED driver required
Light source
6mm LES COB
Initial output
90 CRI 6.3W 9Vf at 700mA
2400K • 706lm • 119lm/W
2700K • 763lm • 129lm/W
3000K • 792lm • 134lm/W
3500K • 809lm • 137lm/W
4000K • 826lm • 140lm/W
Light distribution
Decorative Globe 84.4º
Low Glare 63.7º

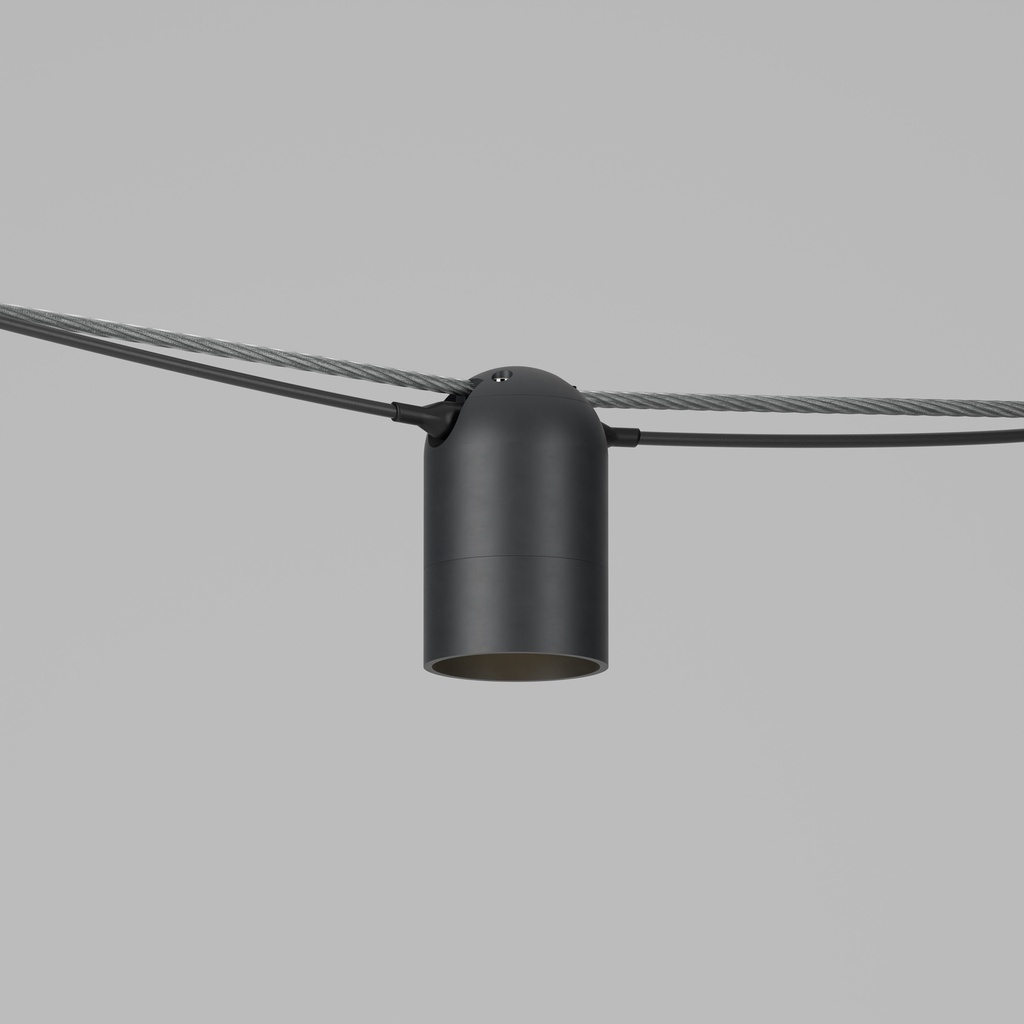

Very Narrow 12.6°
Medium 25.5º
Flood 36.6º
Wide Flood 51.3º
Colour consistency
3 SDCM
IP rating
IK rating
IP66
IK10
Weight
0.87kg
Colour
Consistency: 3 SDCM
IP Rating: IP66
IK Rating: IK10
Weight: 0.87kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
BUG Report
The Mini G-Cat product can have BUG ratings calculated based on the beam angle or diffuser and CRI selected. Please email us to request a BUG report
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
