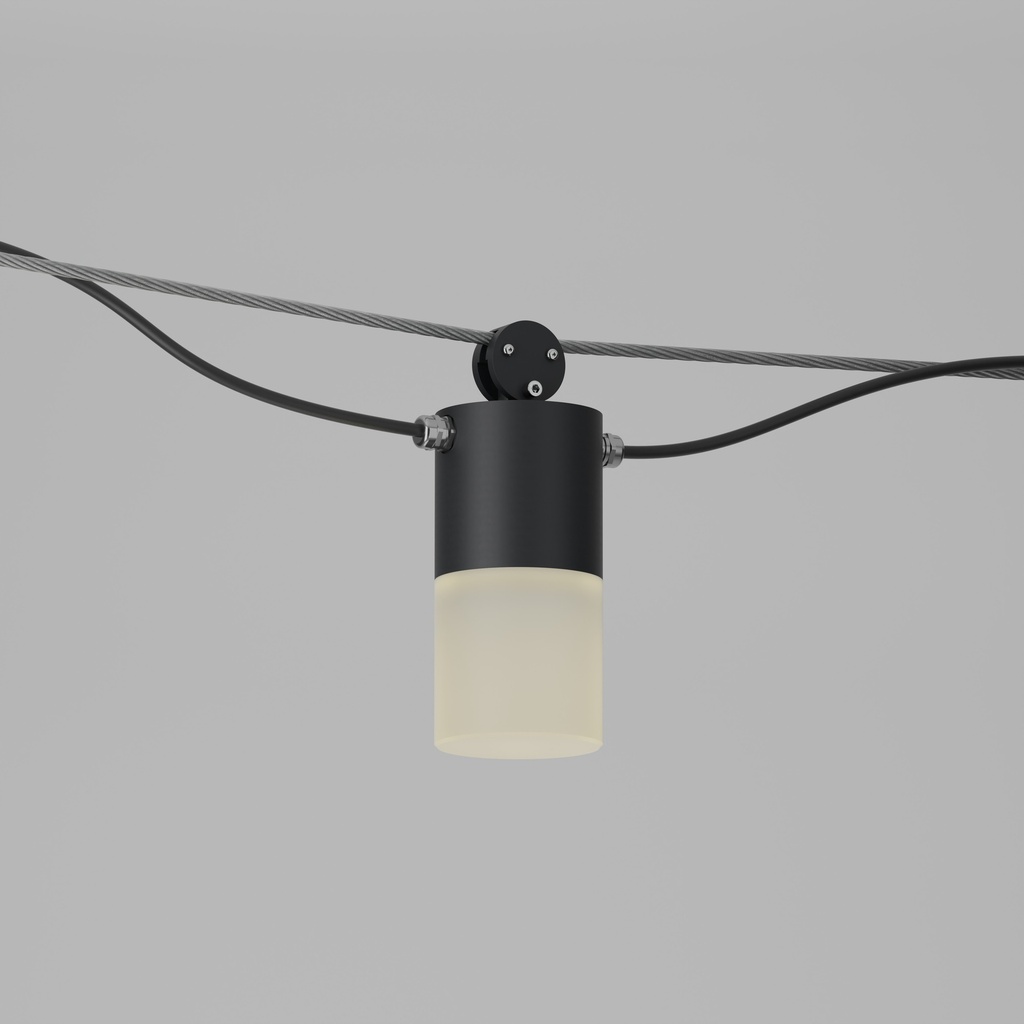

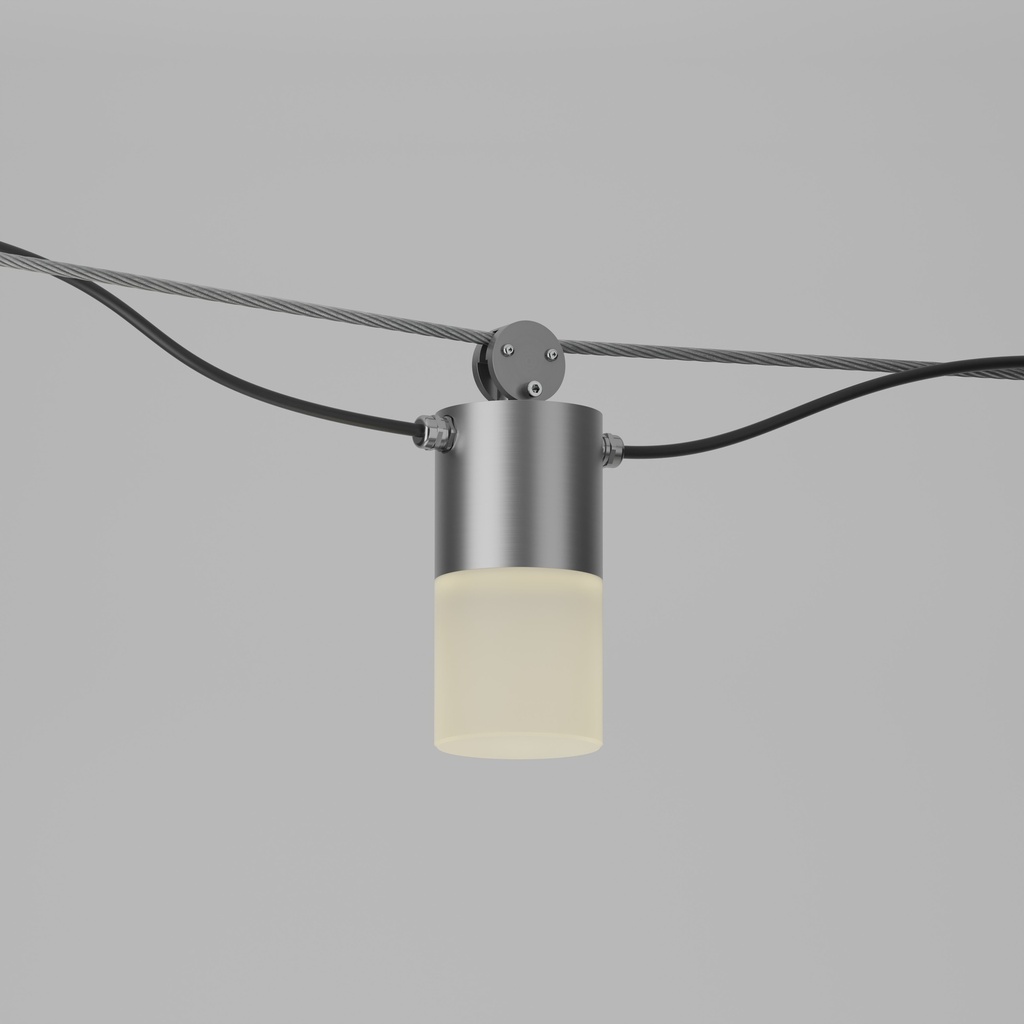

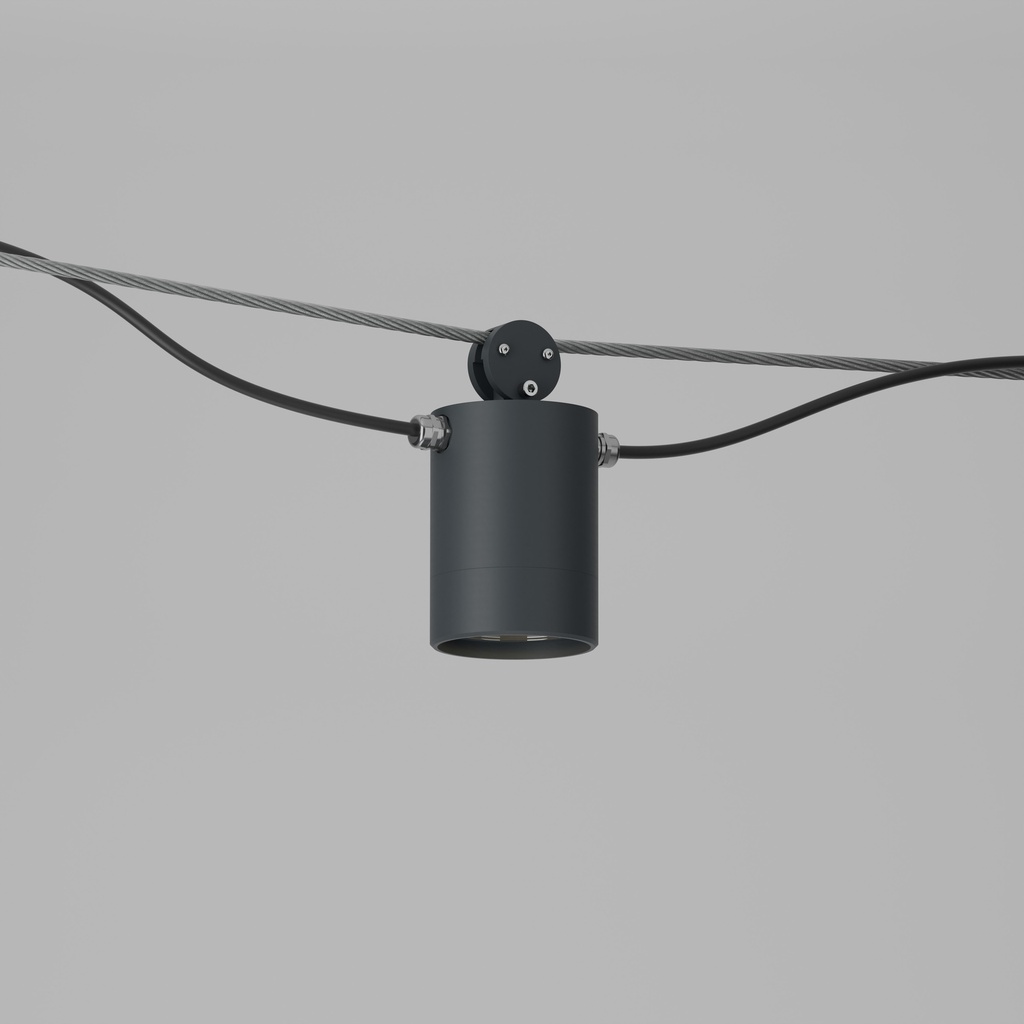

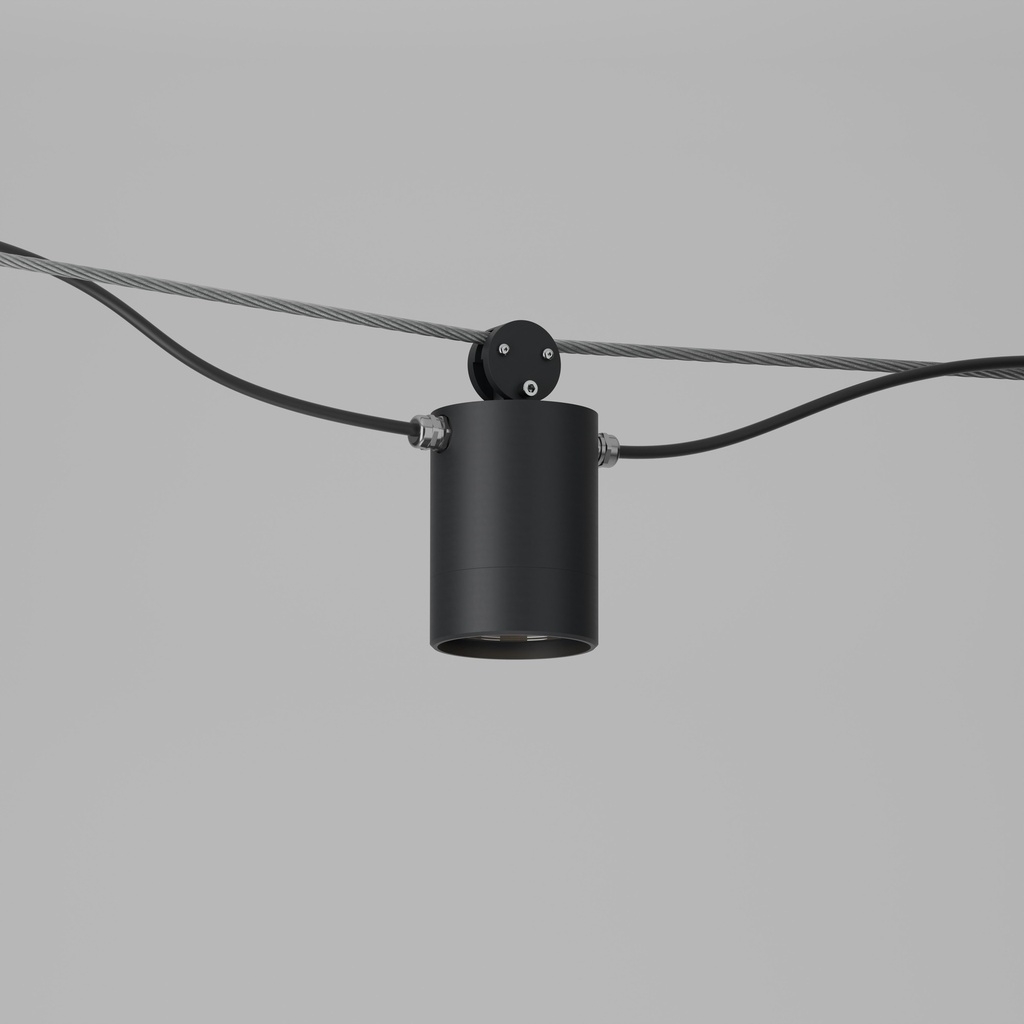

G-Cat
High-performance exterior lighting system, to enhance exterior architectural details and landscape illumination.
Product Description
The G-Cat is an IP66 exterior rated lighting system that offers versatile lighting options, with beam angles from narrow to flood to meet diverse project requirements.

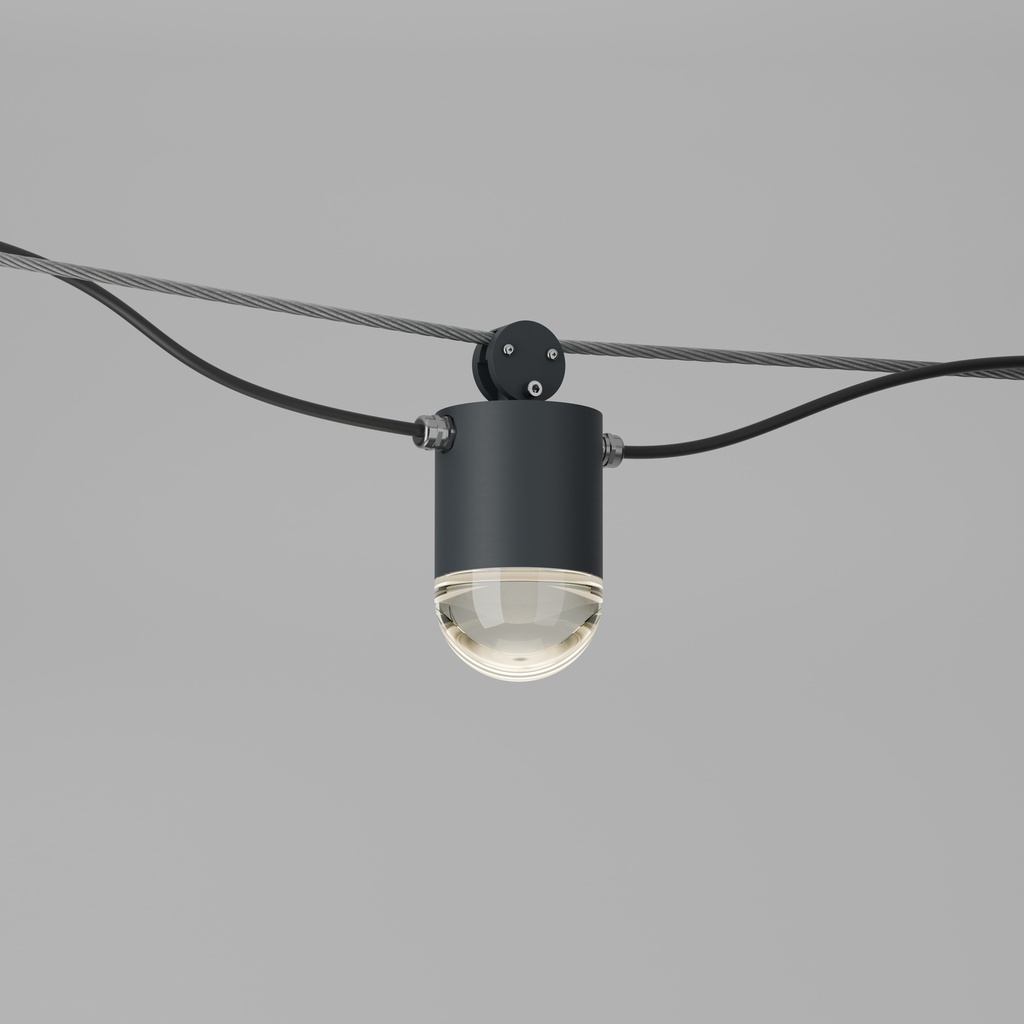

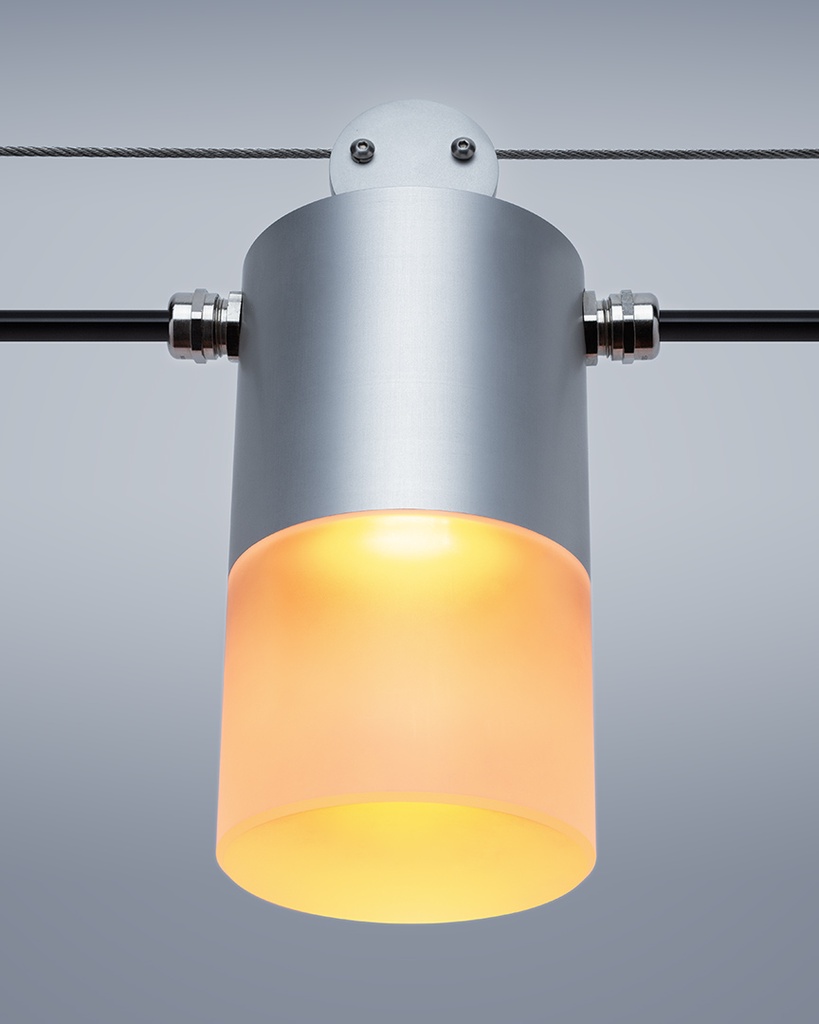

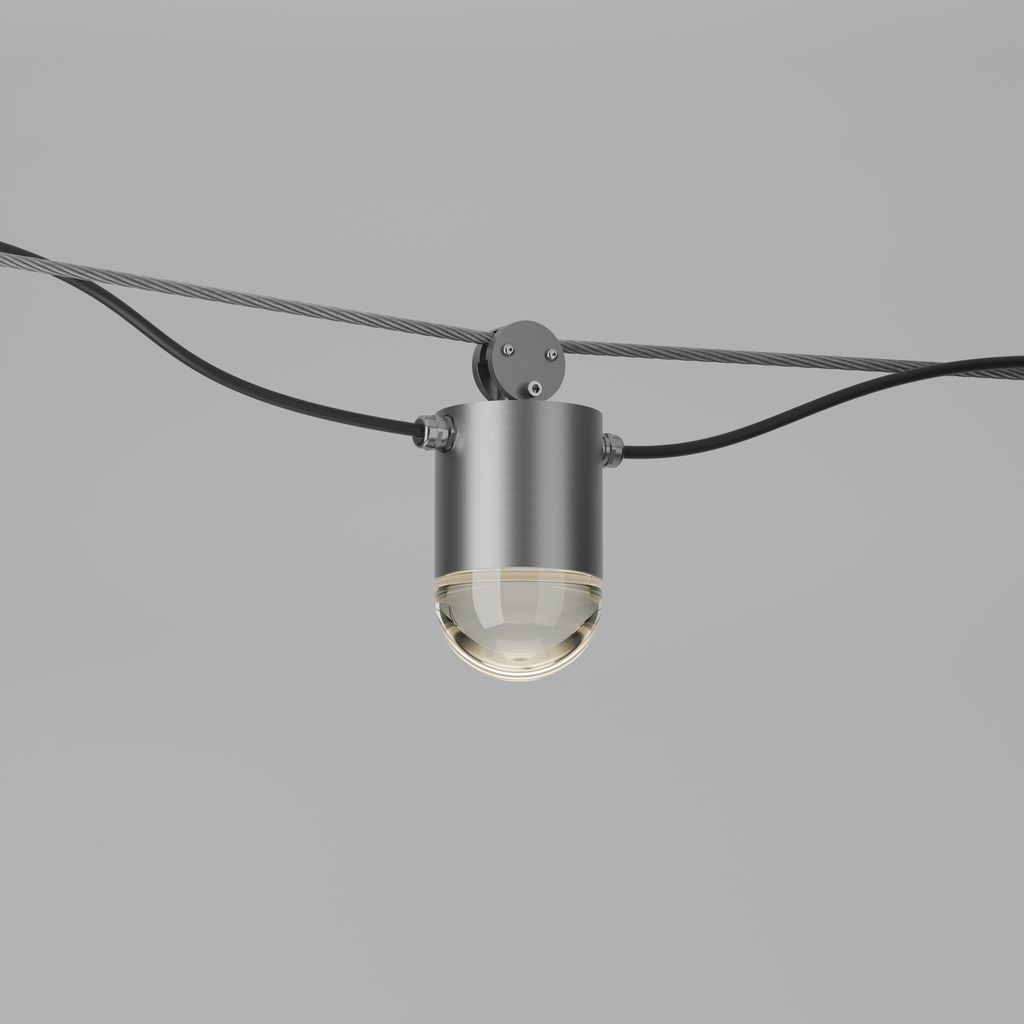

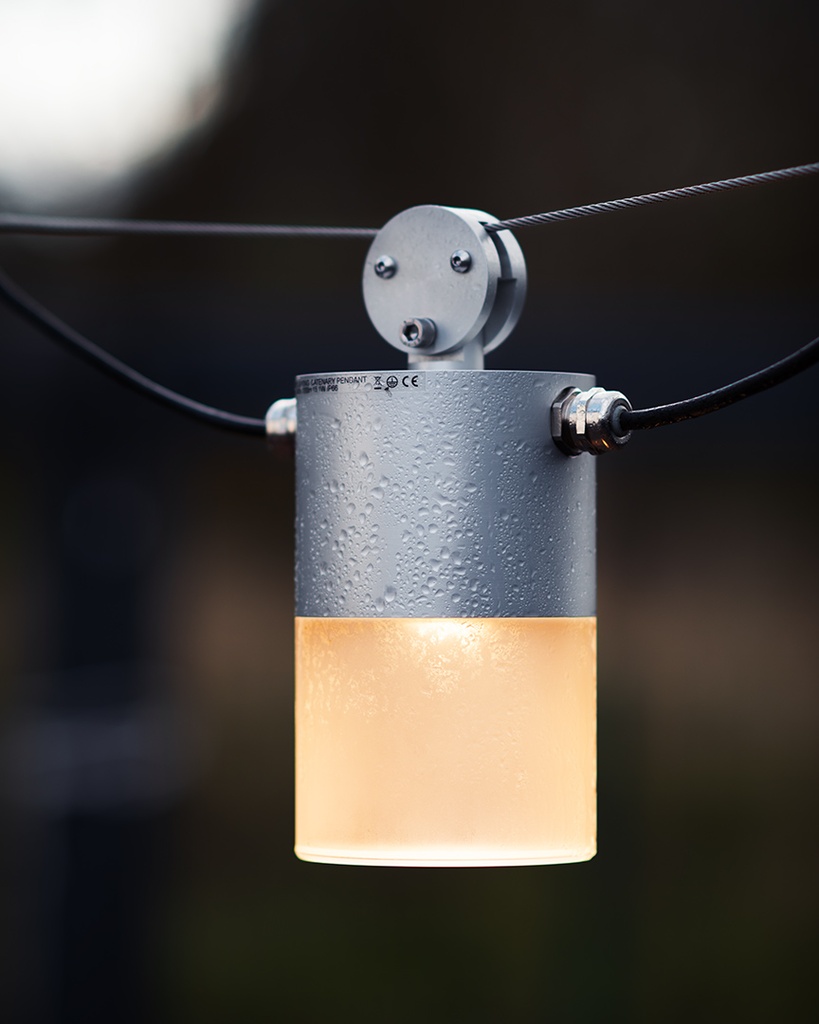

Including frosted acrylic attachments for soft wide beam distribution and specially developed domed optics to avoid upward light spill; providing dark sky compliance.
Constructed from precision-machined recycled aluminium, the system features an anodised and powder-coated finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• IK10 rated.
• Adjustable beam angles with interchangeable optics.
• Specialist diffusers for soft wide distribution or to provide zero upwards light for dark sky compliance.
• Advanced dimming options: DALI, 0-10V and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
9mm LES output up to 1929lm initial
14mm LES output up to 1975lm initial
Learn more about sl90 and sl98
High-performance exterior lighting system, to enhance exterior architectural details and landscape illumination.
Product Description
The G-Cat is an IP66 exterior rated lighting system that offers versatile lighting options, with beam angles from narrow to flood to meet diverse project requirements.
Including frosted acrylic attachments for soft wide beam distribution and specially developed domed optics to avoid upward light spill; providing dark sky compliance.
Constructed from precision-machined recycled aluminium, the system features an anodised and powder-coated finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• IK10 rated.
• Adjustable beam angles with interchangeable optics.
• Specialist diffusers for soft wide distribution or to provide zero upwards light for dark sky compliance.
• Advanced dimming options: DALI, 0-10V and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
9mm LES COB
14mm LES COB
Initial output
SL90 11.8W 33.8Vf at 350mA
2700K • 1822lm • 154lm/W
3000K • 1908lm • 161lm/W
3500K • 1929lm • 163lm/W
4000K • 1919lm • 162lm/W
SL98 10.6W 30.4Vf at 350mA
2700K • 1205lm • 113lm/W
3000K • 1288lm • 121lm/W
3500K • 1313lm • 124lm/W
4000K • 1352lm • 127lm/W
SL90 11.7W 33.4Vf at 350mA
2700K • 1865lm • 159lm/W
3000K • 1953lm • 167lm/W
3500K • 1975lm • 169lm/W
4000K • 1963lm • 168lm/W
SL98 13W 32.4Vf at 400mA
2700K • 1573lm • 121lm/W
3000K • 1680lm • 130lm/W
3500K • 1714lm • 132lm/W
4000K • 1764lm • 136lm/W
Light distribution
Narrow 14.1°
Narrow 2 16.4º
Medium 23.5º
Flood 35.6º
Wide Flood 55.3º
Beacon diffuser 106.6º

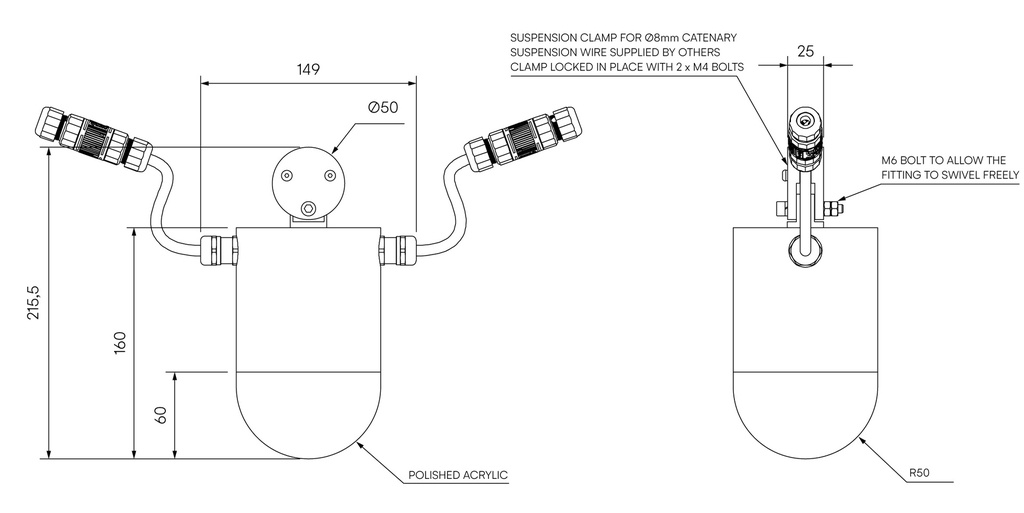

Glare free 62º
Narrow 21.6º
Medium 24.2°
Medium 2 28º
Flood 38.5°
Wide Flood 58.1º
Beacon diffuser 103.5º
Glare free 62º
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
IP rating
IK rating
IP66
IK10
Weight
2.5kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP66
IK Rating: IK10
Weight: 2.5kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
9mm LES COB
SL90 (1908lm initial output at 3000K)
9mm LES COB
SL98 (1288lm initial output at 3000K)
14mm LES COB
SL90 (1953lm initial output at 3000K)
14mm LES COB
SL98 (1680lm initial output at 3000K)
BUG Report
The G-Cat product can have BUG ratings calculated based on the beam angle or diffuser, output and CRI selected
. Please email us to request a BUG report
Photometry
To access our photometry files please view this page from a desktop device.
