Cu-Pip
Award-winning exterior rated
spike mounted light, designed to maintain precise focus with ease.
Product
Description
The Cu-Pip
design originated from a desire to create a simple, pared-back spike light.
Simplicity,
durability, and minimal points of failure were key drivers. Equally important
was minimising the overall manufacturing process and resource use. That's why
Cu-Pip shares a large number of its build with Pipien.

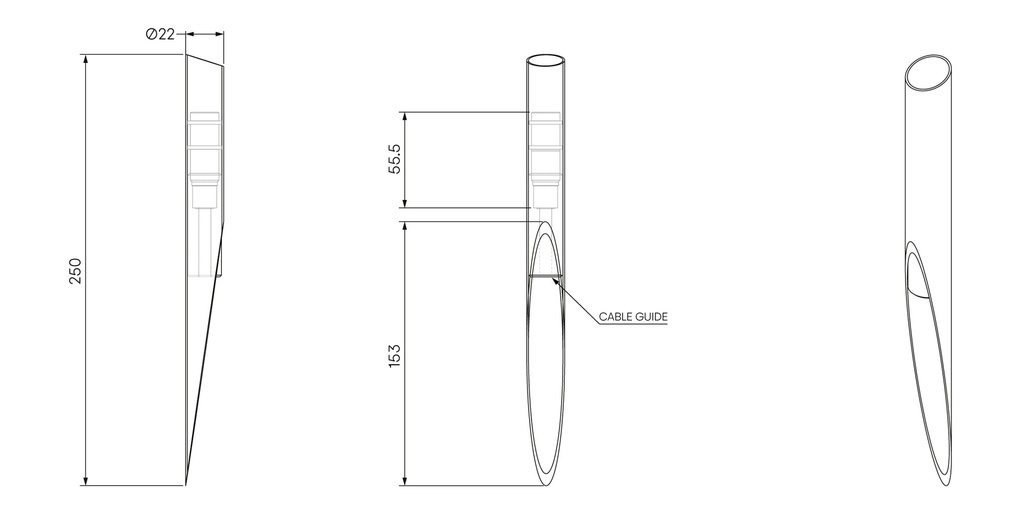

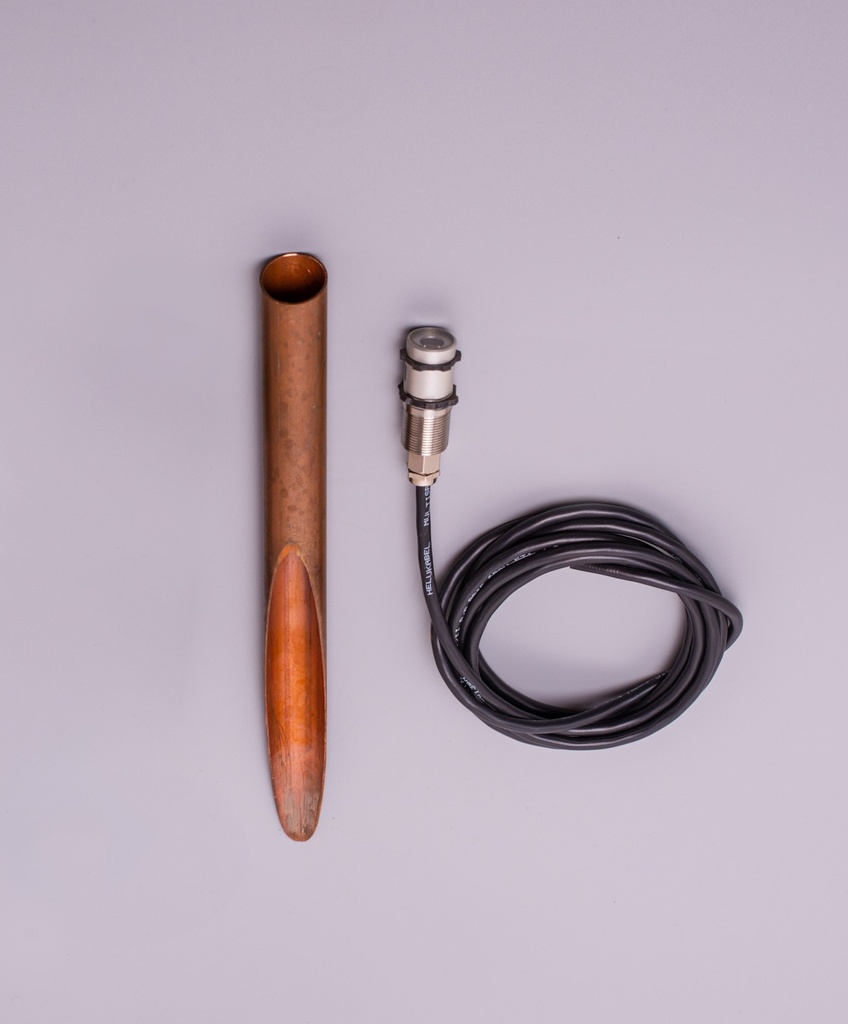

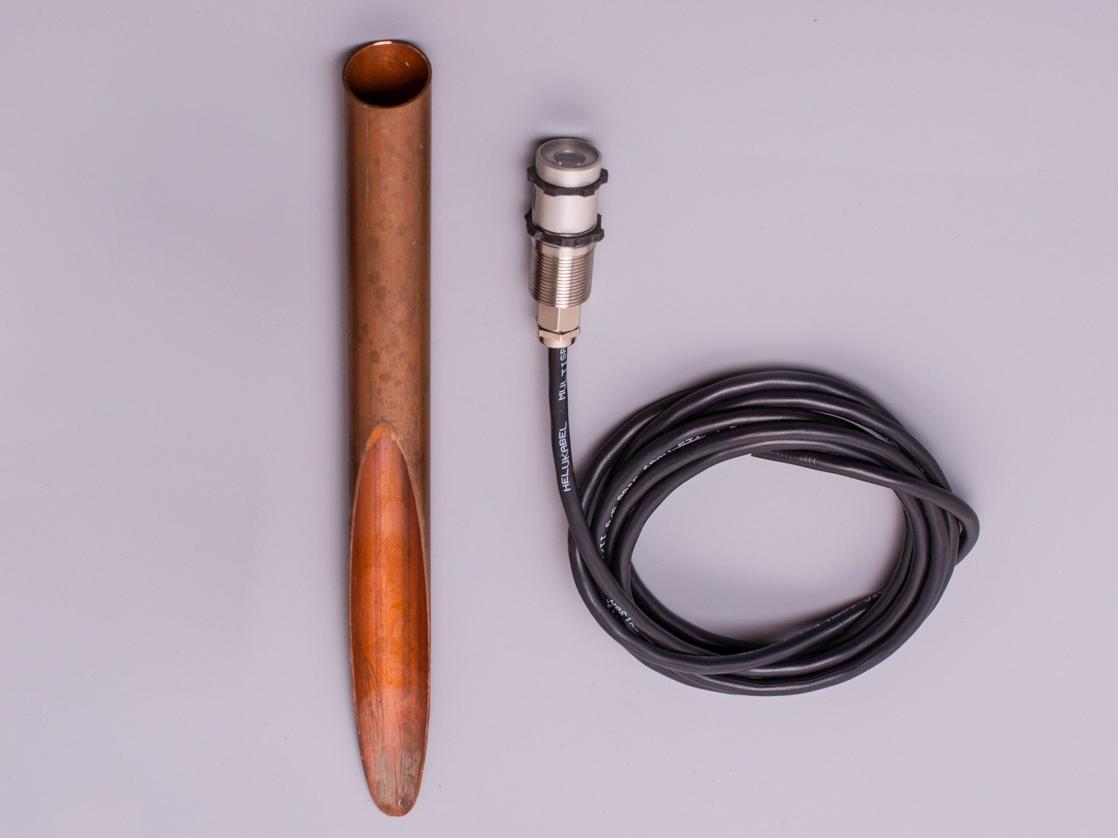

The outer
housing, machined from a single copper pipe, integrates both the ground spike
and anti-glare snoot into a single artifact. With its natural finish, compact
form, and elegant cable exit, the Cu-Pip almost disappears in any landscape.
The internal LED module can be specified with a range of colour temperatures
and site-changeable optics to hone the beam angle and glare control.
Key Features
• Robust
construction: made from copper. Specialist finishes available on request.
• High levels
of glare control and interchangeable optics.
• Advanced
dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
•
High-performance lighting: up to 97 CRI LEDs.
Award-winning exterior rated
spike mounted light, designed to maintain precise focus with ease.
Product
Description
The Cu-Pip
design originated from a desire to create a simple, pared-back spike light.
Simplicity,
durability, and minimal points of failure were key drivers. Equally important
was minimising the overall manufacturing process and resource use. That's why
Cu-Pip shares a large number of its build with Pipien.
The outer
housing, machined from a single copper pipe, integrates both the ground spike
and anti-glare snoot into a single artifact. With its natural finish, compact
form, and elegant cable exit, the Cu-Pip almost disappears in any landscape.
The internal LED module can be specified with a range of colour temperatures
and site-changeable optics to hone the beam angle and glare control.
Key Features
• Robust
construction: made from copper. Specialist finishes available on request.
• High levels
of glare control and interchangeable optics.
• Advanced
dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
•
High-performance lighting: up to 97 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Technical
Supply
Remote constant current LED driver required
Light source
SL Type S
Initial output
95 CRI 1.4W 2.75Vf at 500mA
2700K • 139lm • 99lm/W
3000K • 148lm • 105lm/W
3500K • 158lm • 112lm/W
4000K • 169lm • 120lm/W
Light distribution
Medium 22.9º
Flood 35.2º
Wide Flood 50.7º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP66
Weight
0.17kg
Lumen
Maintenance: L70 B0 66,000 hours
IP Rating: IP66
Weight: 0.17kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
Photometry
To access our photometry files please view this page from a desktop device.
