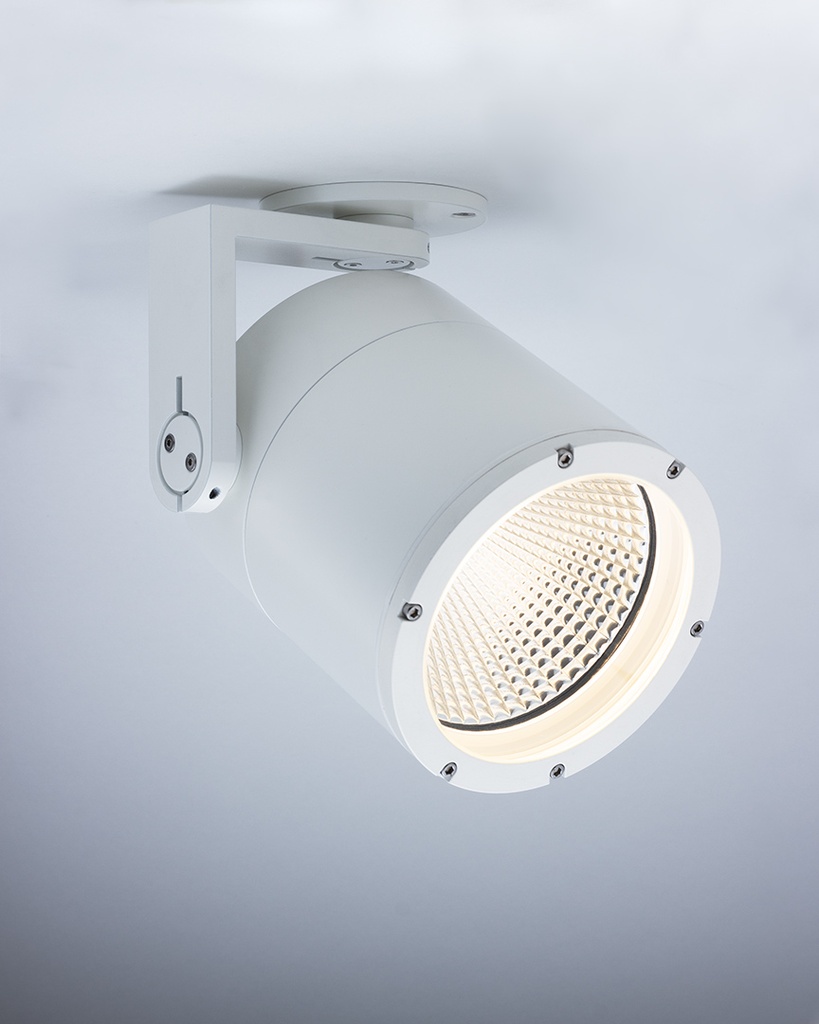

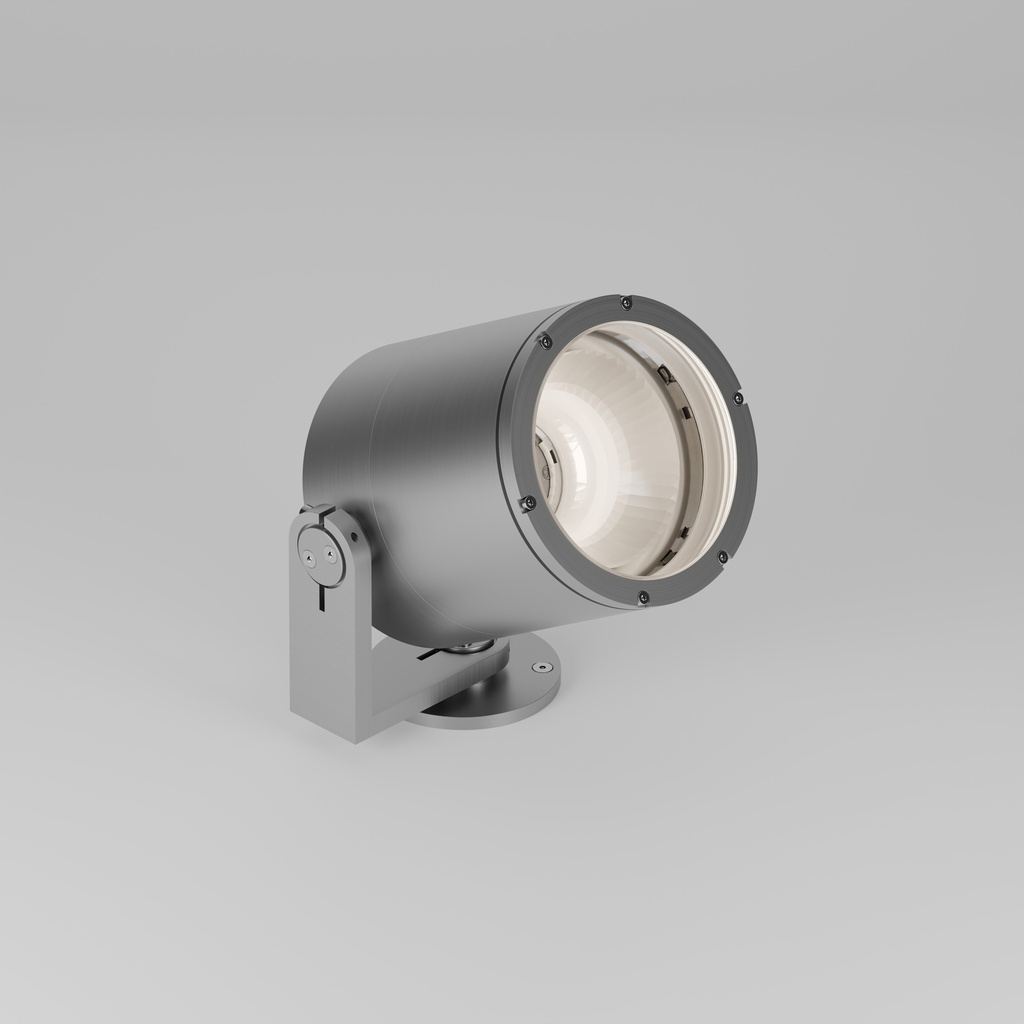

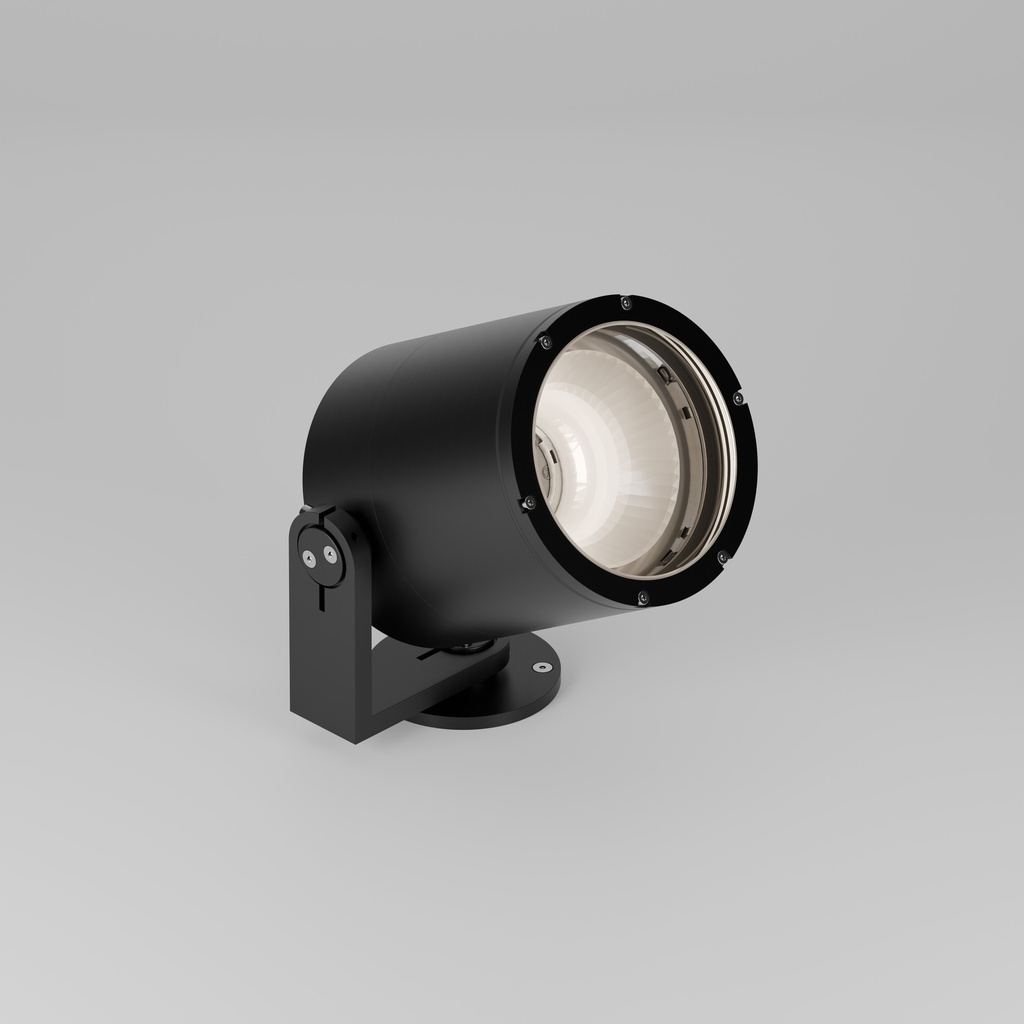

Toad (ATEX)
Special ATEX rated high-performance exterior spotlight, for ceiling and wall mounting to illuminate exterior architectural details.
Product Description
This product is an ATEX rated version of the Toad Type X luminaire, suitable for use in explosive atmospheres. A high power IP66 exterior rated, adjustable and lockable spotlight.
Constructed from precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Provided with interchangeable optics from Very Narrow to Wide Flood, a honeycomb louvre can be added for glare control. Snoot option is also available.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish.
• Fixed optics can be easily swapped from Very Narrow to Flood options, capable of holding up to two additional lens accessories.
• Snoot option available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
| CCT: 3000K |
Special ATEX rated high-performance exterior spotlight, for ceiling and wall mounting to illuminate exterior architectural details.
Product Description
This product is an ATEX rated version of the Toad Type X luminaire, suitable for use in explosive atmospheres. A high power IP66 exterior rated, adjustable and lockable spotlight.
Constructed from precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Provided with interchangeable optics from Very Narrow to Wide Flood, a honeycomb louvre can be added for glare control. Snoot option is also available.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised and powder-coated finish.
• Fixed optics can be easily swapped from Very Narrow to Flood options, capable of holding up to two additional lens accessories.
• Snoot option available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
Remote constant current LED driver required
Power
30.5W
29Vf
Technical
Light Source
19mm LES COB
80 CRI 1050mA
3850lm initial output at 3000K 126lm/W
Light Distribution
Narrow 13.2°
Medium 22.3°
Flood 40.4°
Wide Flood 56.2°
ATEX classification #
Ex 11 3 G Ex ec IIC T4 Gc
ATEX certificate available on request
Light Distribution
19mm LES COB
Narrow 13.2°
Medium 22.3°
Flood 40.4°
Wide Flood 56.2°
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.001 ∆u’v’
IP Rating IP66
Weight 2.4kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP66
Weight: 2.4kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
19mm LES COB
80 CRI (3850lm initial output)
Narrow 13.2°
Medium 22.3°
Flood 40.4°
Wide Flood 56.2°
Photometry
To access our photometry files please view this page from a desktop device.
Accessories and Attachments
This product can be supplied with one accessory:
Honeycomb louvre for glare control
Order no. ITY-000391
This product can accept the following attachment:
