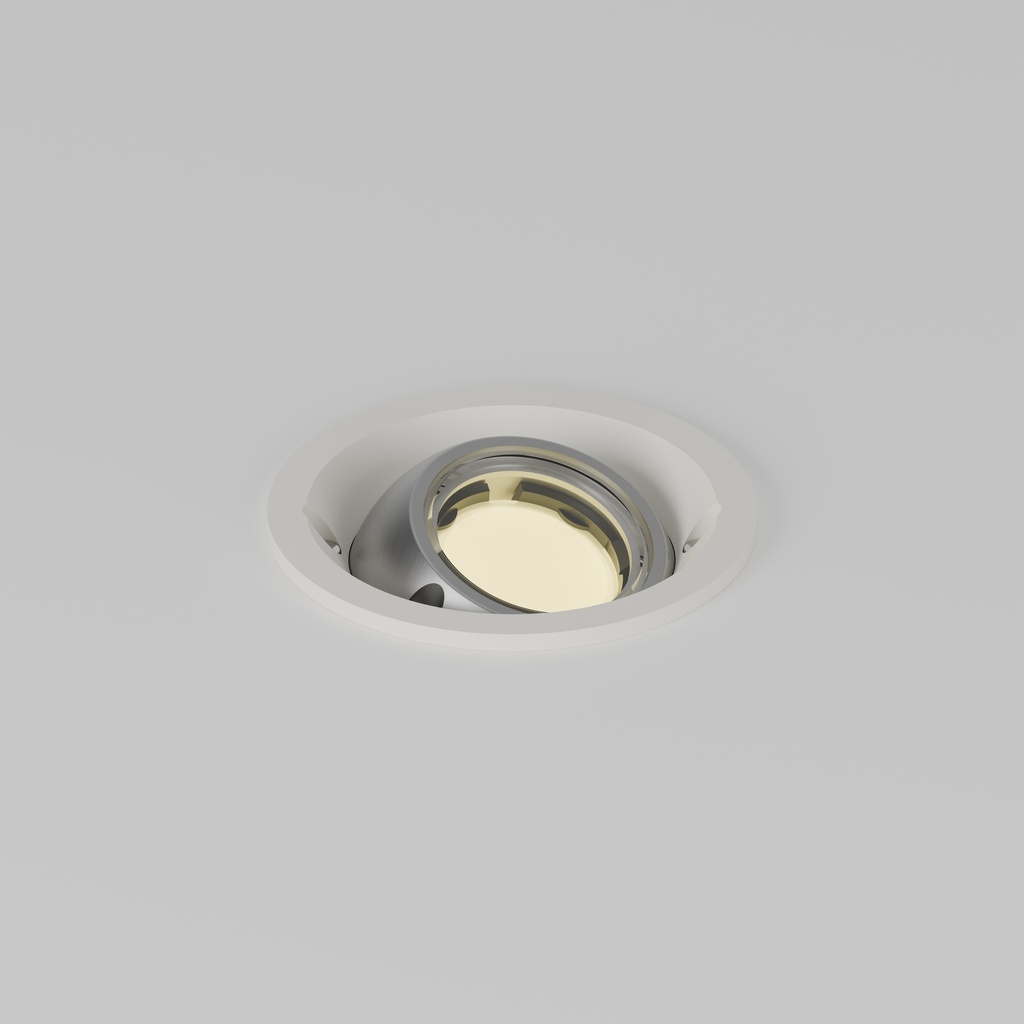

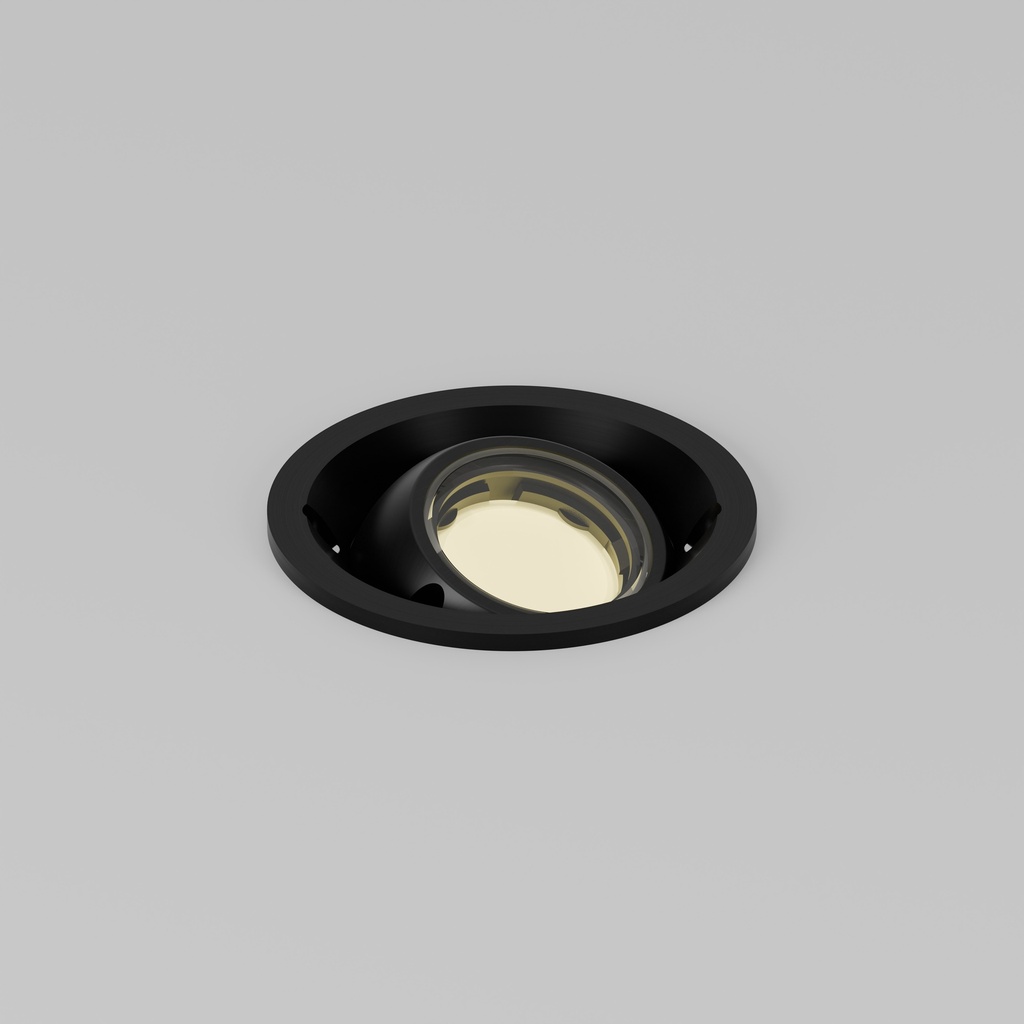

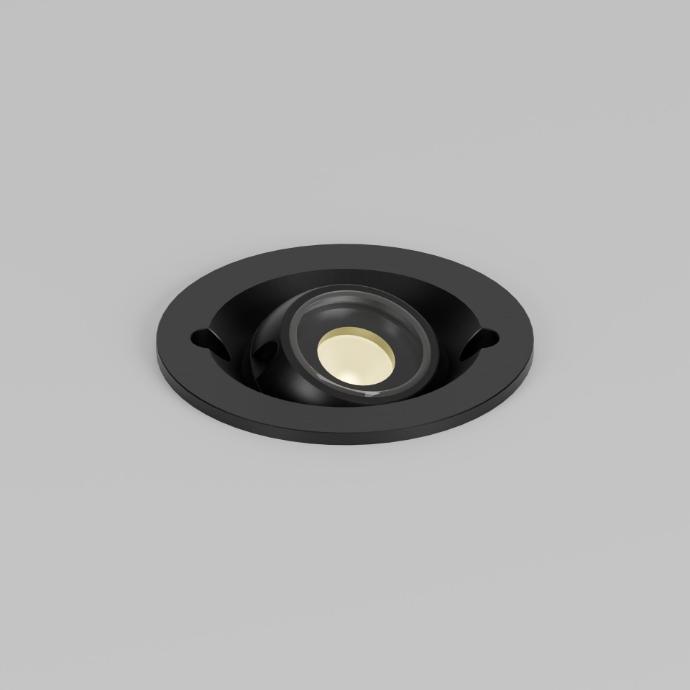

Iris
Compact adjustable recessed lighting fixture for Museum, Gallery and Retail displays.
Product Description
The Iris is an IP66 rated adjustable compact recessed and highly efficient fixture designed to provide precise illumination for Museum, Gallery and Retail applications. Iris is suitable where an airtight seal is required.
Key Features

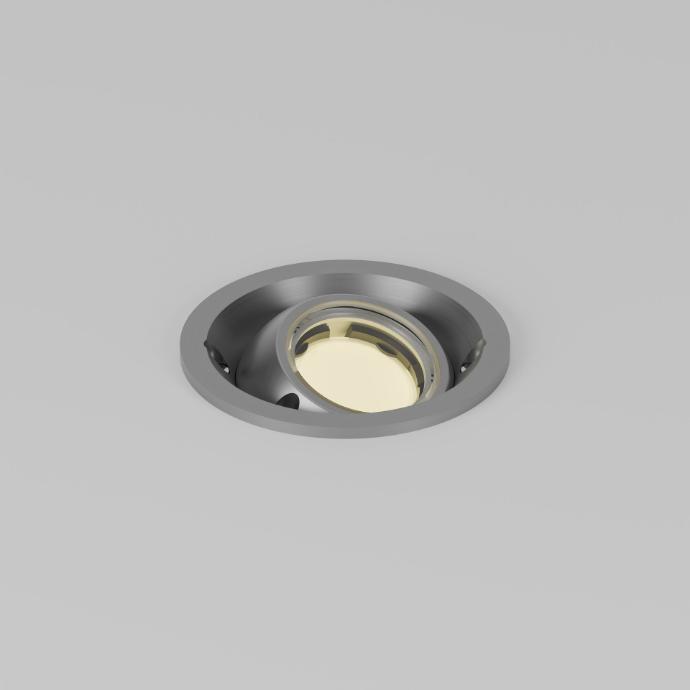

• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed optics can be easily swapped from Very Narrow to Flood to elliptical beam options
• Snoot and Cowl options available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs.
Compact adjustable recessed lighting fixture for Museum, Gallery and Retail displays.
Product Description
The Iris is an IP66 rated adjustable compact recessed and highly efficient fixture designed to provide precise illumination for Museum, Gallery and Retail applications. Iris is suitable where an airtight seal is required.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed optics can be easily swapped from Very Narrow to Flood to elliptical beam options
• Snoot and Cowl options available.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 97 CRI LEDs
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Star
Initial output
2W 2.9Vf at 700mA
80 CRI
2200K • 150lm • 71lm/W
90 CRI
2400K • 210lm • 105lm/W
95 CRI
2700K • 167lm • 82lm/W
3000K • 177lm • 87lm/W
3500K • 187lm • 92lm/W
4000K • 197lm • 97lm/W
Light distribution

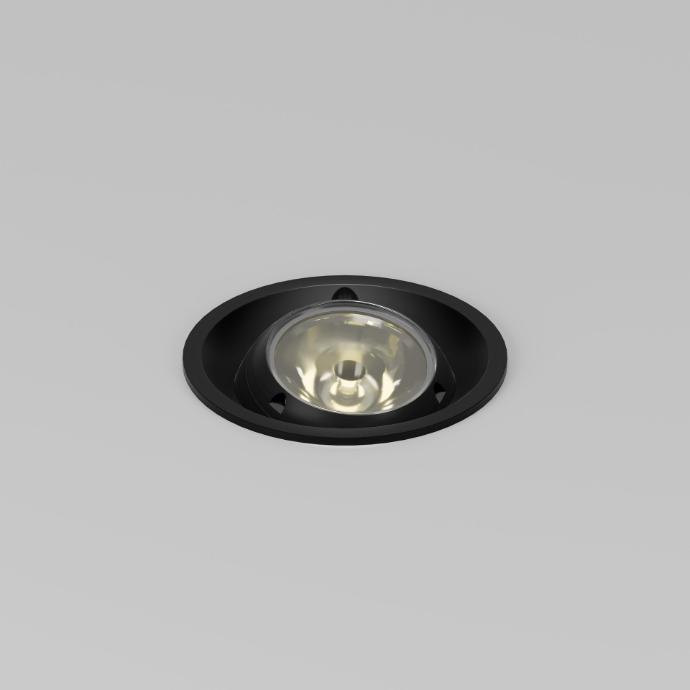

Very Narrow 8.9°
Narrow 11.7º
Medium 16.7º
Flood 34.4º
Wide Flood 66.4º
Elliptical 16.5º x 33.8º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.017 ∆u’v’
IP rating

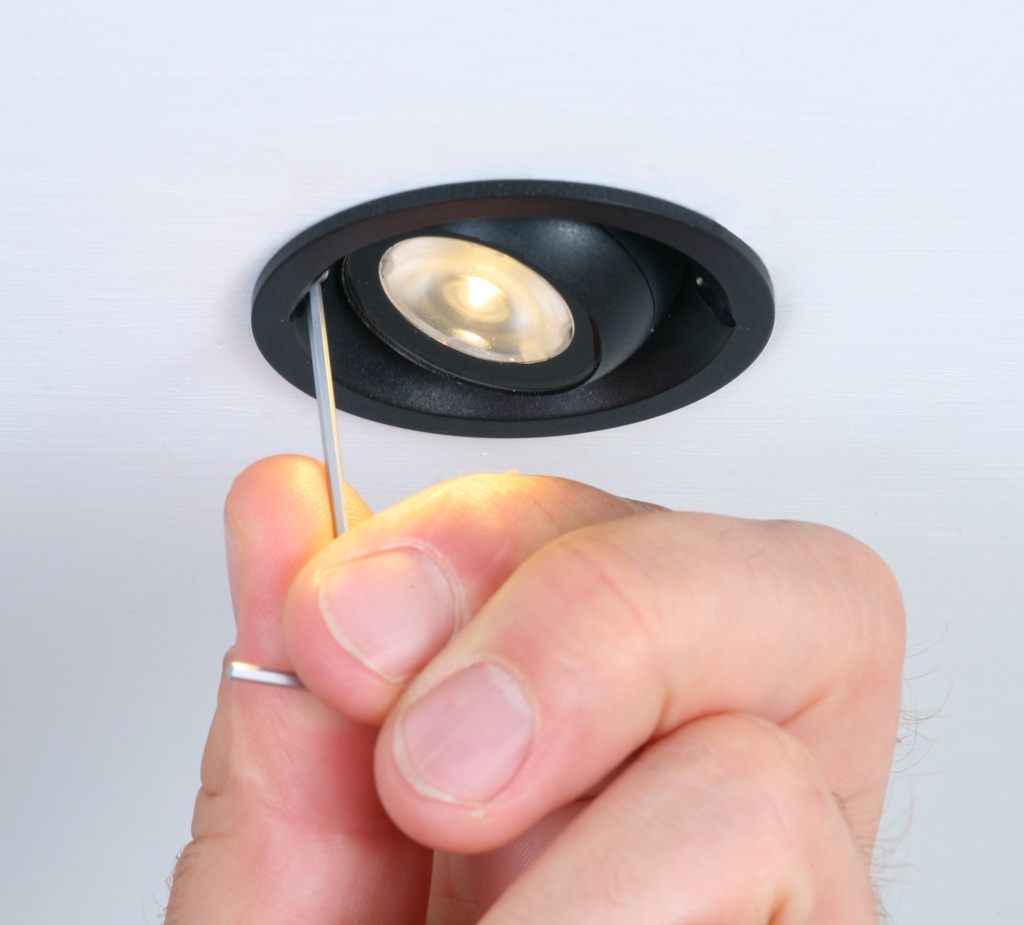

Available tilt
Cut out
IP66
±22º

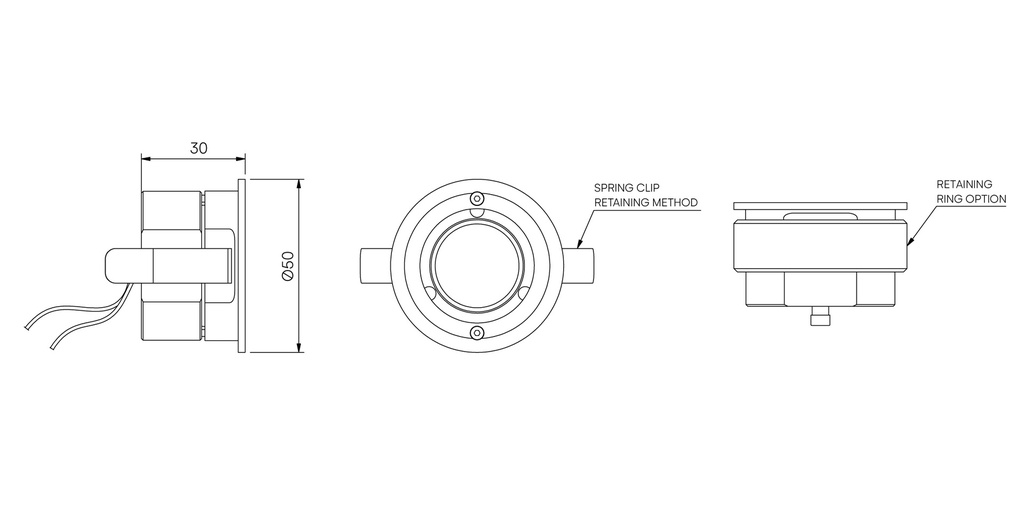

Ø44mm
Weight
0.1kg
Lumen
Maintenance: L70 B50 > 66,000 hours
IP Rating: IP66
Weight: 0.1kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (177lm initial output at 3000K)
Attachments
This product can accept the following attachment:
Photometry
To access our photometry files please view this page from a desktop device.

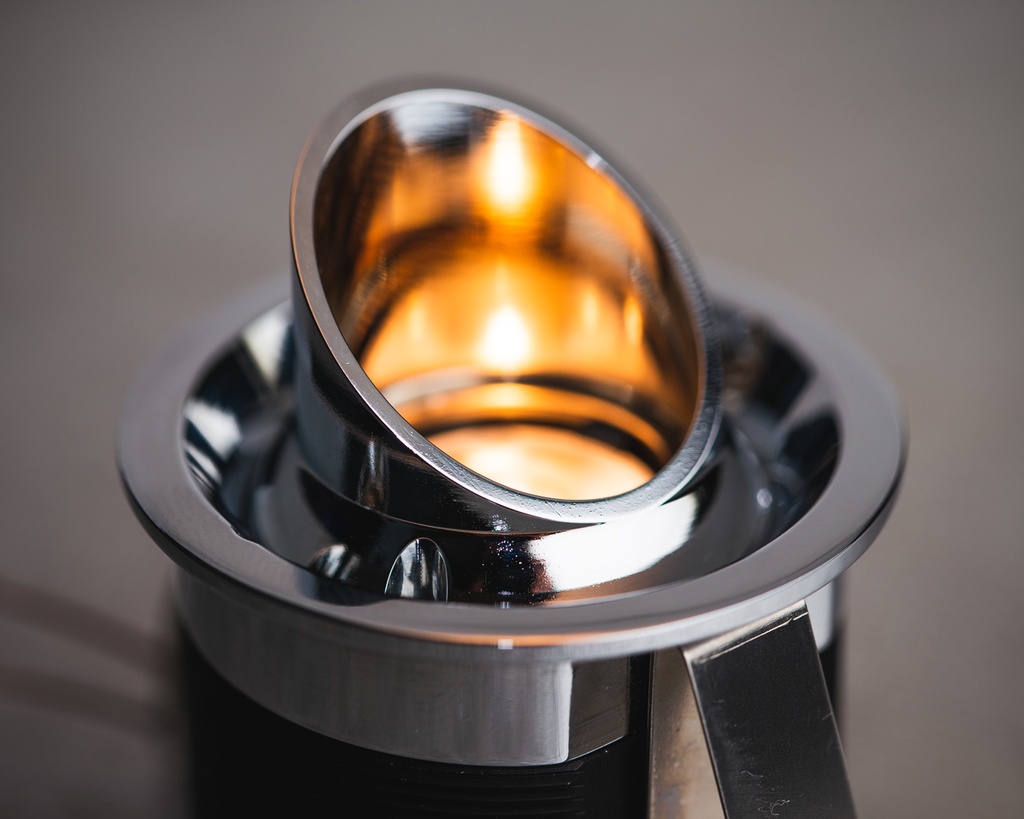

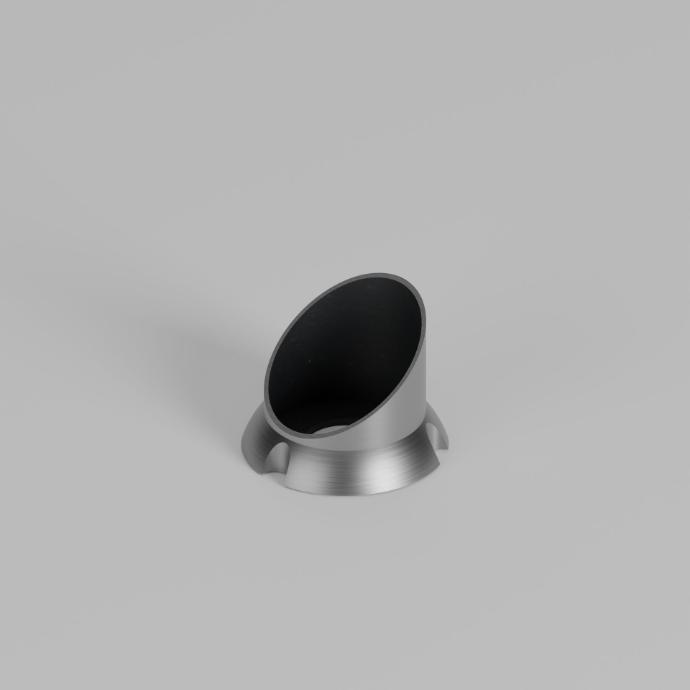

Removeable straight cut or slash cut snoot.
Order no. Snoot straight or slash cut

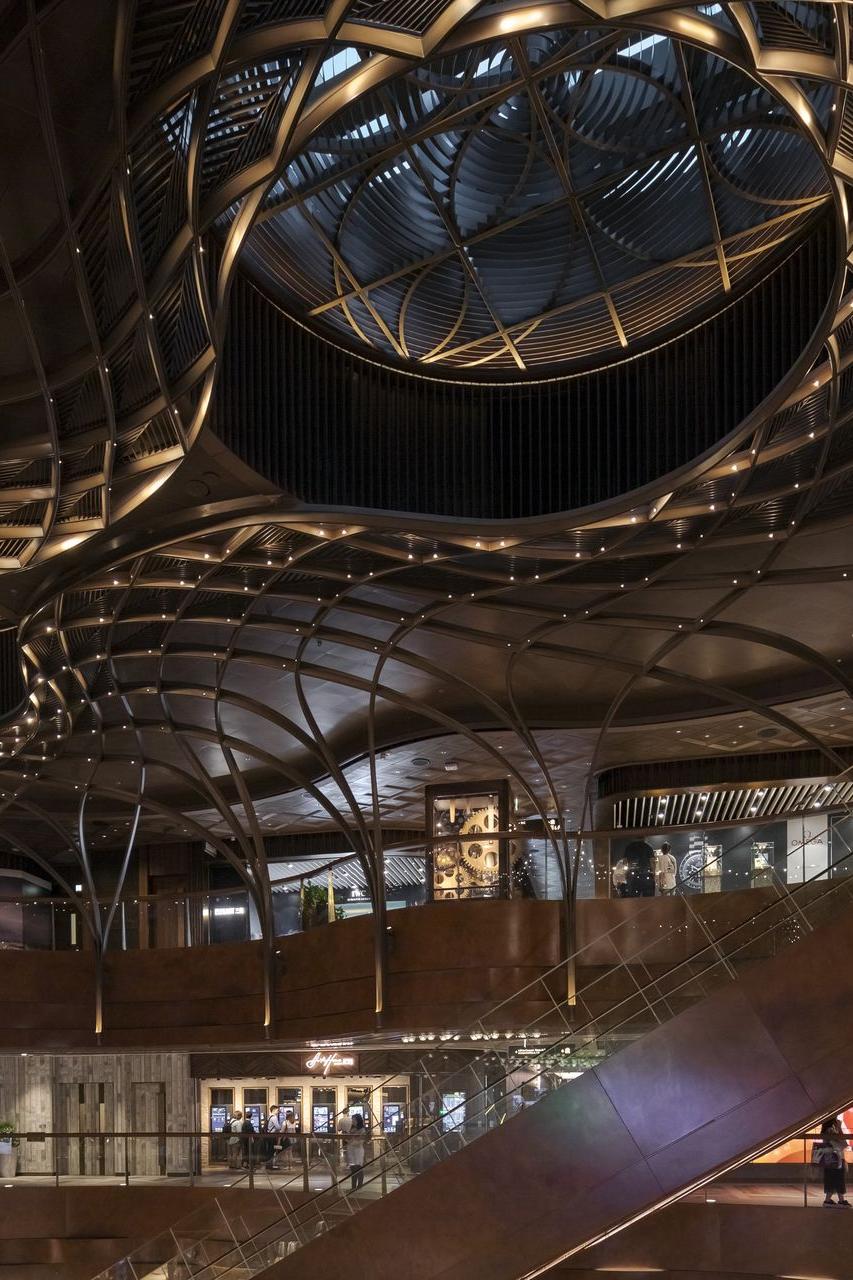

Related Projects
