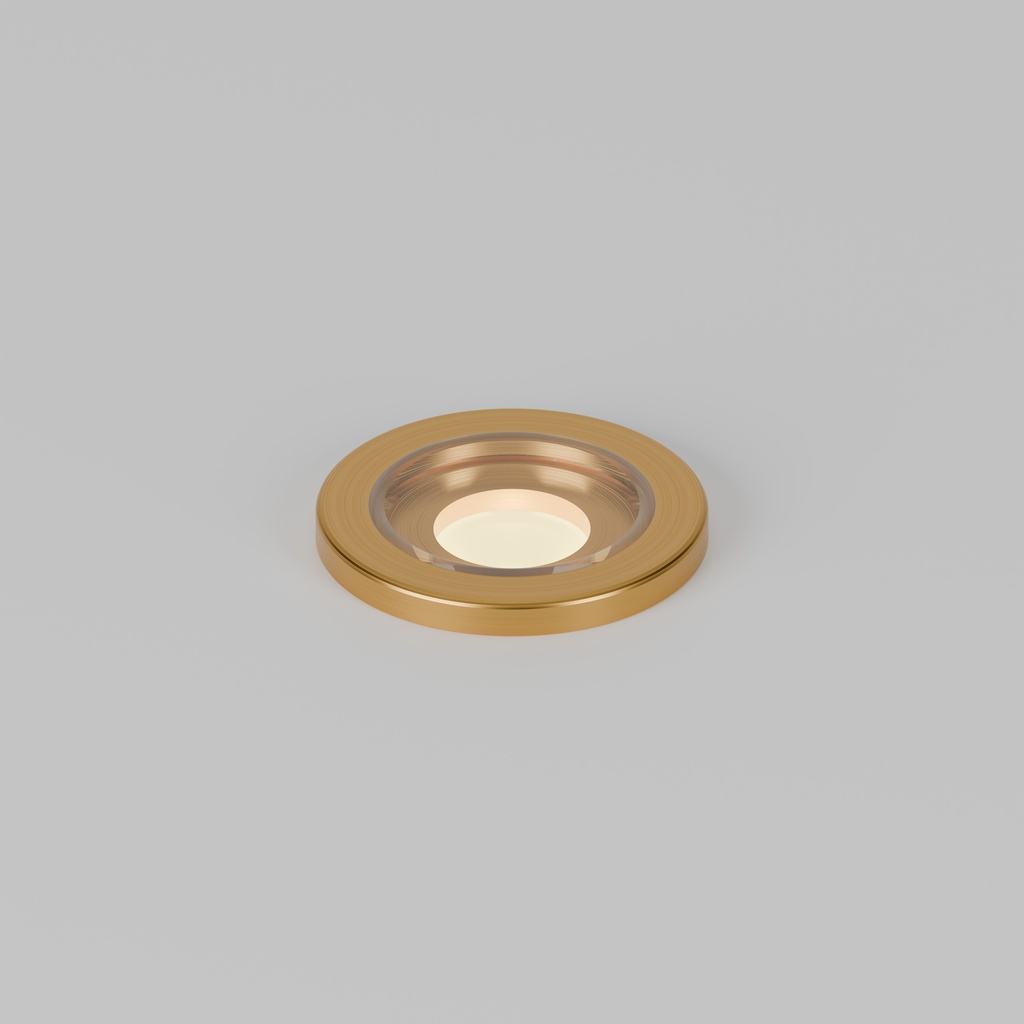

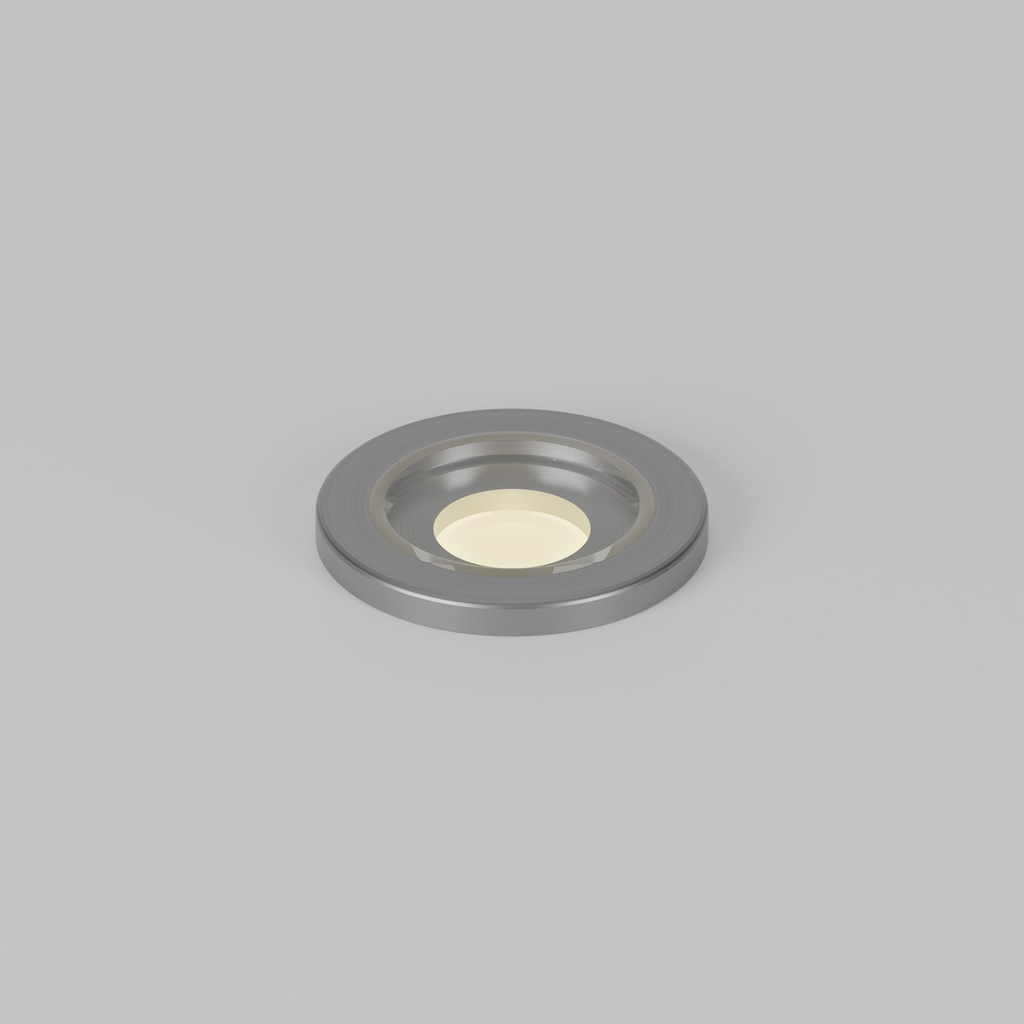

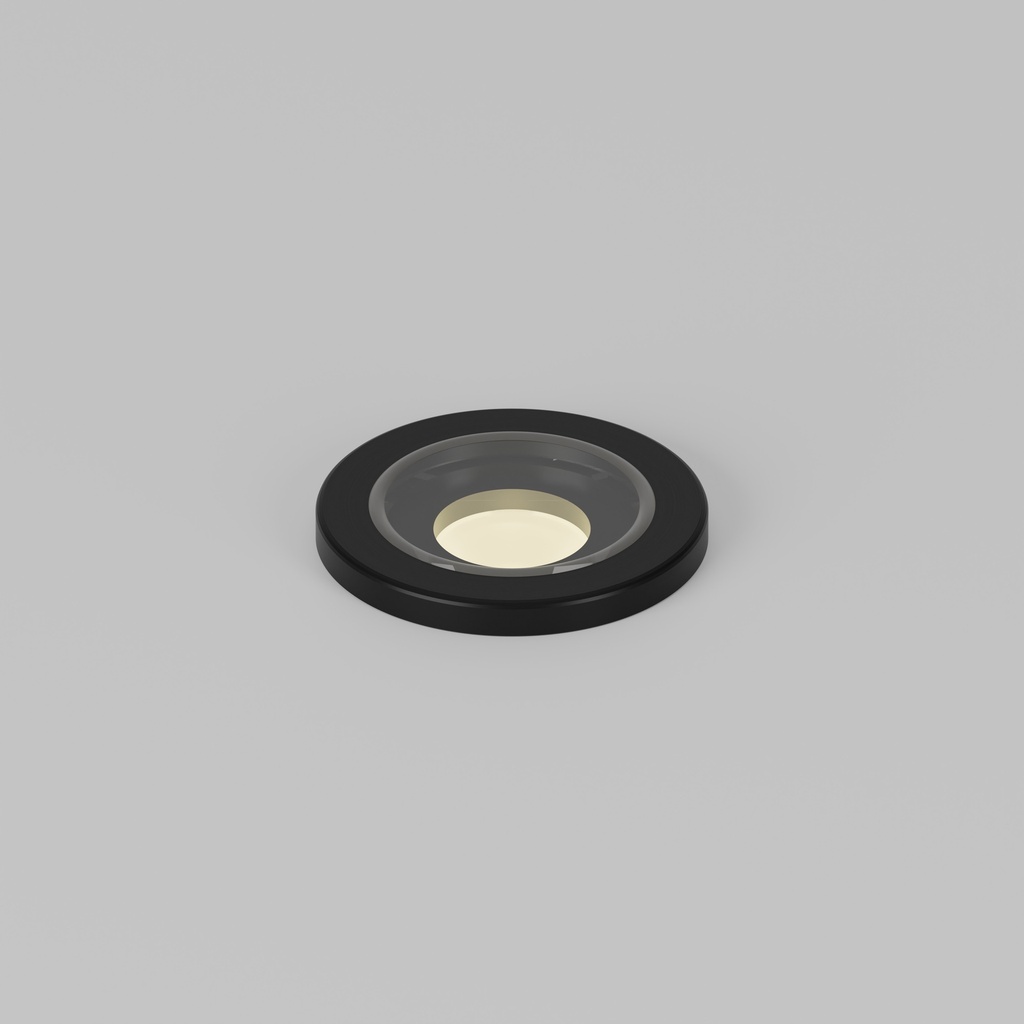

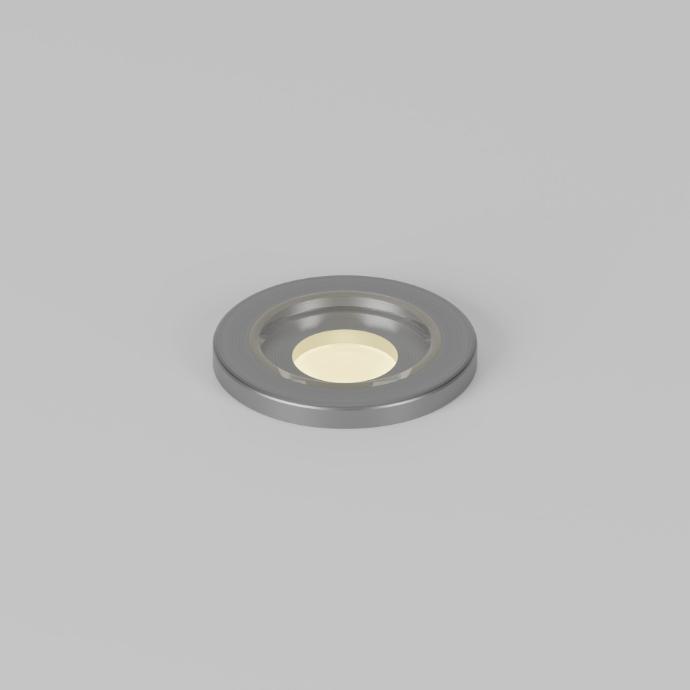

FXD Type S
Miniature exterior recessed fixed focus uplight or downlight, for enhancing exterior architectural details.
Product Description
The FXD Type S is a miniature IP65 rated fixed exterior uplight or downlight. Machined from recycled aluminium with an anodised finish for enhanced durability and a toughened glass lens.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Interchangeable optics to allow Medium to Wide Flood to elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.
Miniature exterior recessed fixed focus uplight or downlight, for enhancing exterior architectural details.
Product Description
The FXD Type S is a miniature IP65 rated fixed exterior downlight. Machined from recycled aluminium with an anodised finish for enhanced durability and a toughened glass lens.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Interchangeable optics to allow Medium to Wide Flood to elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Type S
Initial output
1.4W 2.8Vf at 500mA
80 CRI
2200K • 116lm • 77lm/W
90 CRI
2400K • 157lm • 115lm/W
95 CRI
2700K • 125lm • 88lm/W
3000K • 133lm • 94lm/W
3500K • 140lm • 99lm/W
4000K • 148lm • 104lm/W
Light distribution
Medium 18.5º
Flood 36.7º
Wide Flood 54.1º
Elliptical 17.1º x 34.5º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating

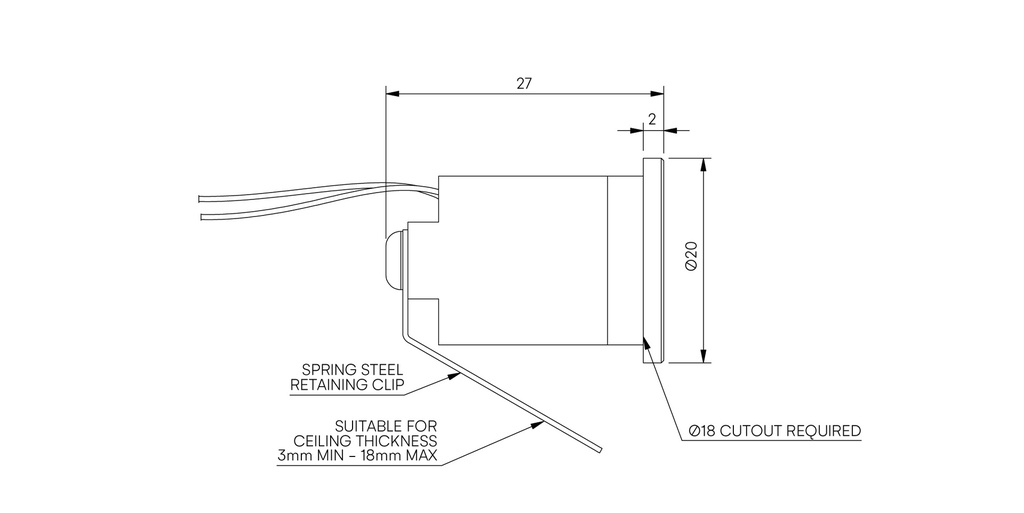

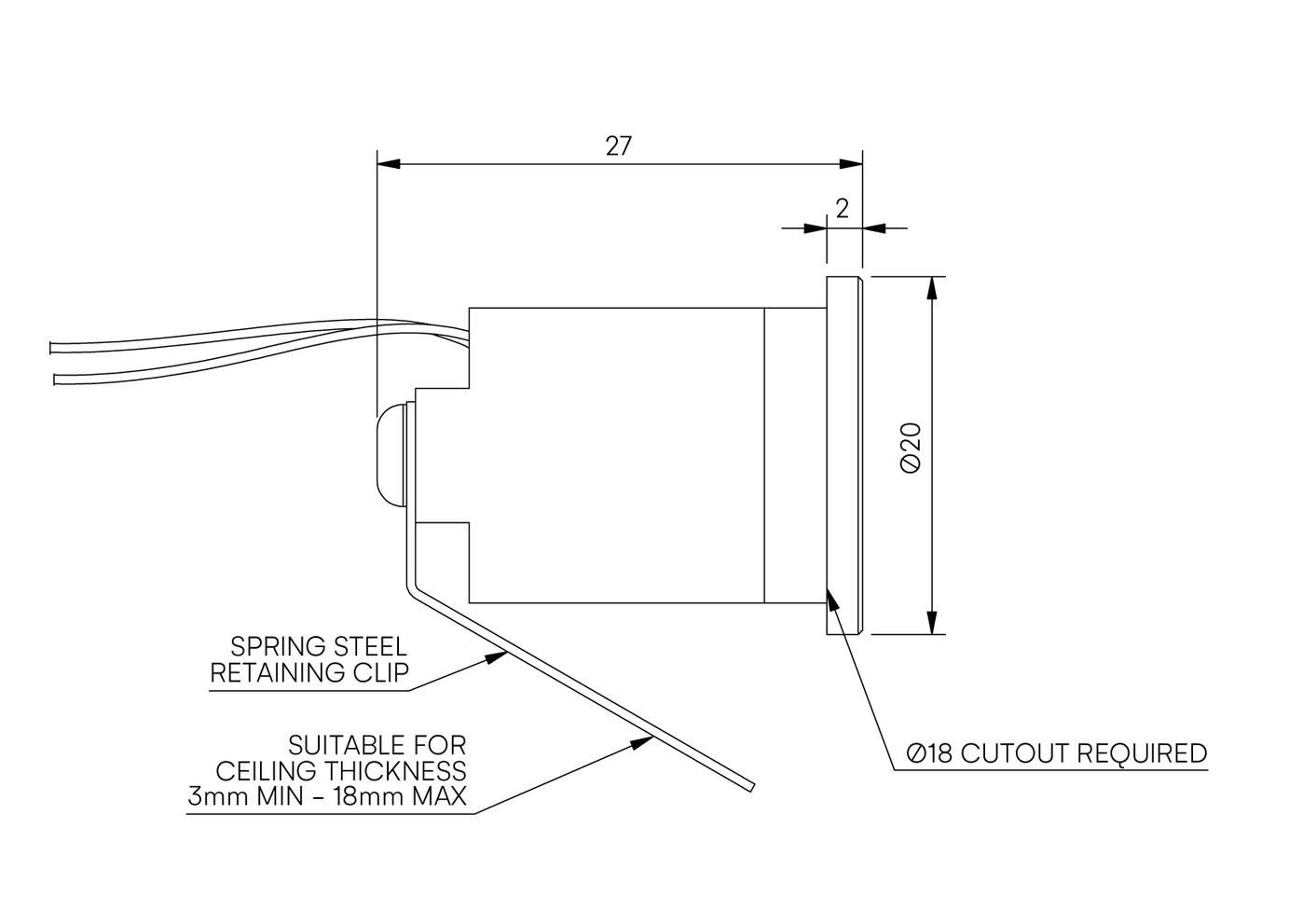

Cut out
IP65
Ø18mm
Weight
18g
Lumen
Maintenance: L70 B0 F0 50,000 hours
IP Rating: IP20
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
