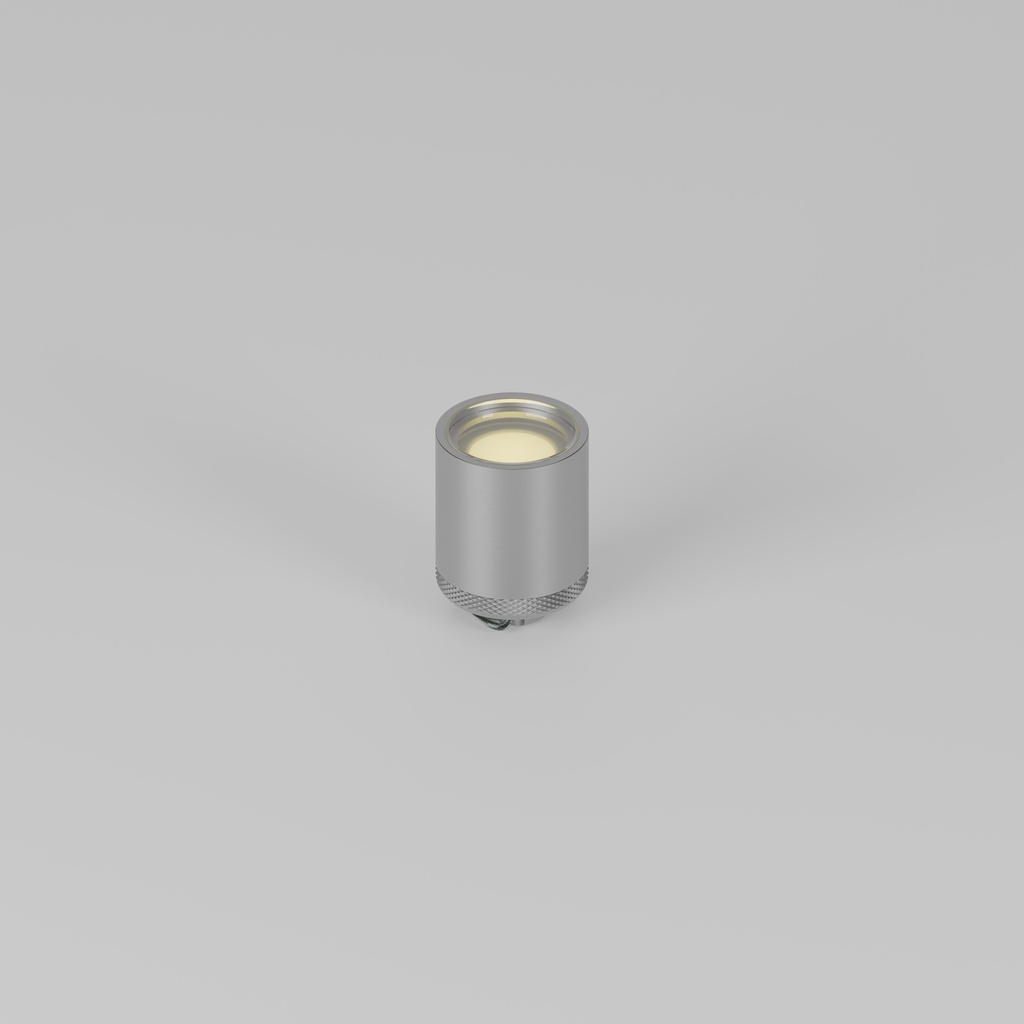

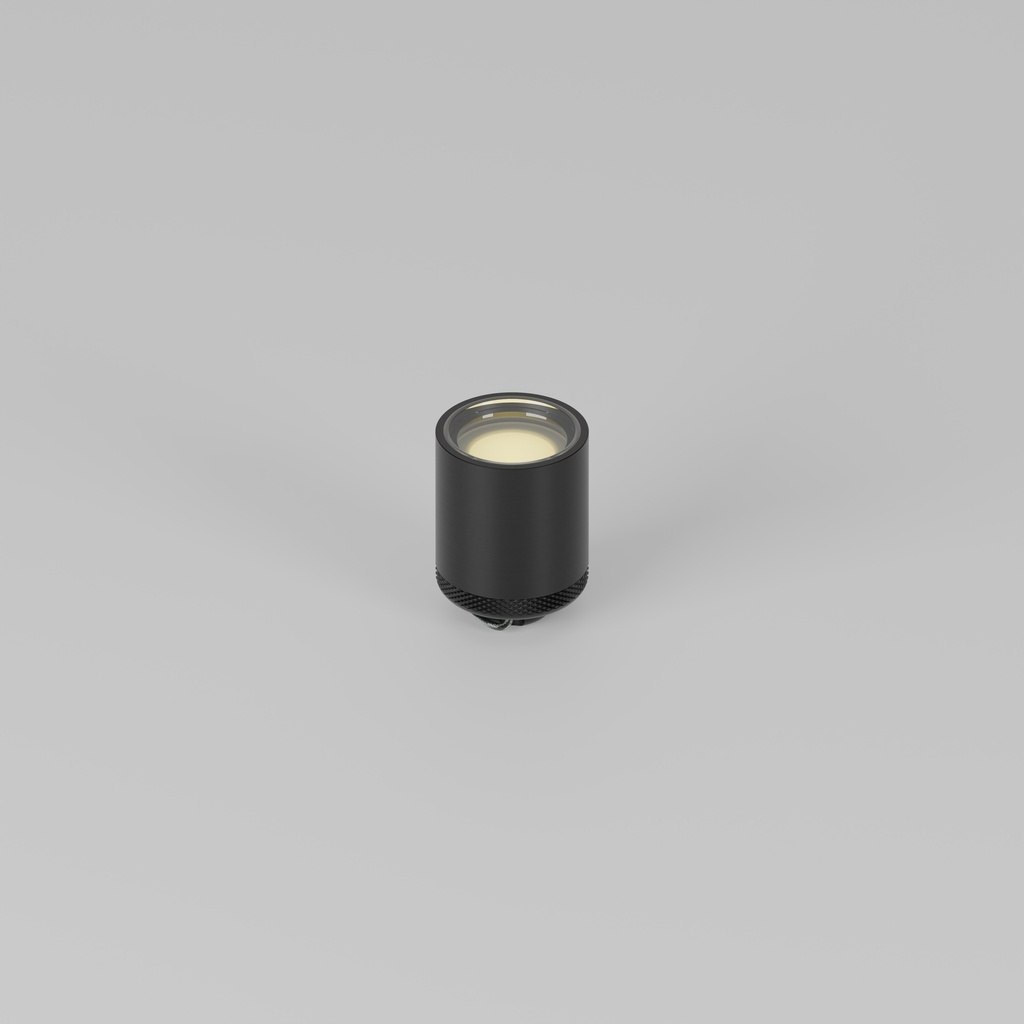

Module Star
Compact recessed fixed focus module, for enhancing both interior and exterior architectural details. Capable of recessing into walls, ceilings and furniture.
Product Description

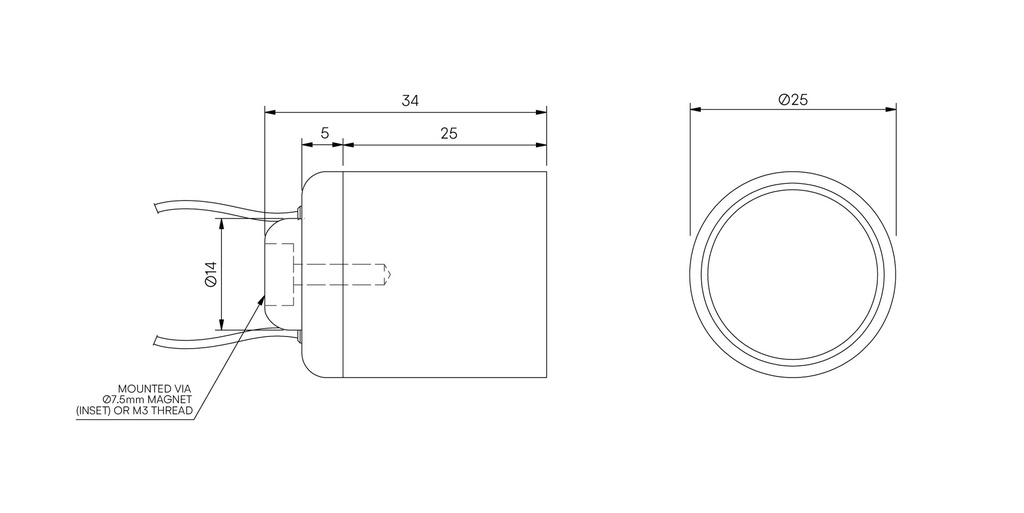

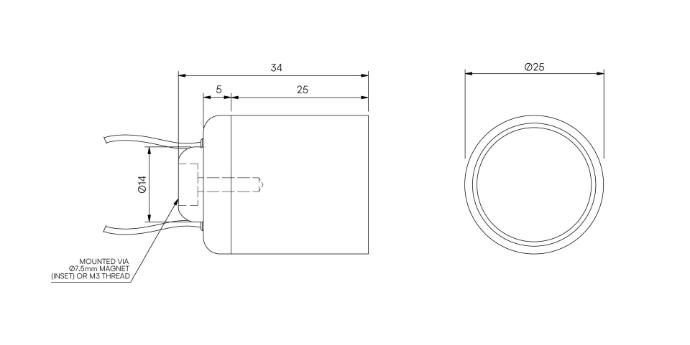

The Module Star is an IP66 rated fixed module, suitable for recessing into walls, ceiling or furniture, it can also be integrated into various architectural and lighting details via an M3 Stud or magnet.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request. Includes toughened glass lens.
• Interchangeable optics to allow Narrow to Wide Flood to elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.
Compact recessed fixed focus module, for enhancing both interior and exterior architectural details. Capable of recessing into walls, ceilings and furniture.
Product Description
The Module Star is an IP66 rated fixed module, suitable for recessing into walls, ceiling or furniture, it can also be integrated into various architectural and lighting details via an M3 Stud or magnet.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request. Includes toughened glass lens.
• Interchangeable optics to allow Narrow to Wide Flood to elliptical beam options.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Star
Initial output
95CRI 2W 2.9Vf at 700mA
2700K • 167lm • 82lm/W
3000K • 177lm • 87lm/W
3500K • 187lm • 92lm/W
4000K • 197lm • 97lm/W
Light distribution
Very Narrow 8.9°
Narrow 11.7º
Medium 16.7º
Flood 34.4º
Wide Flood 66.4º
Elliptical 11.6º x 47º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP66
Weight
0.04kg
Lumen
Maintenance: L70 B0 >66,000 hours
IP Rating: IP66
Weight: 0.04kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (177lm initial output at 3000K)
Related Projects

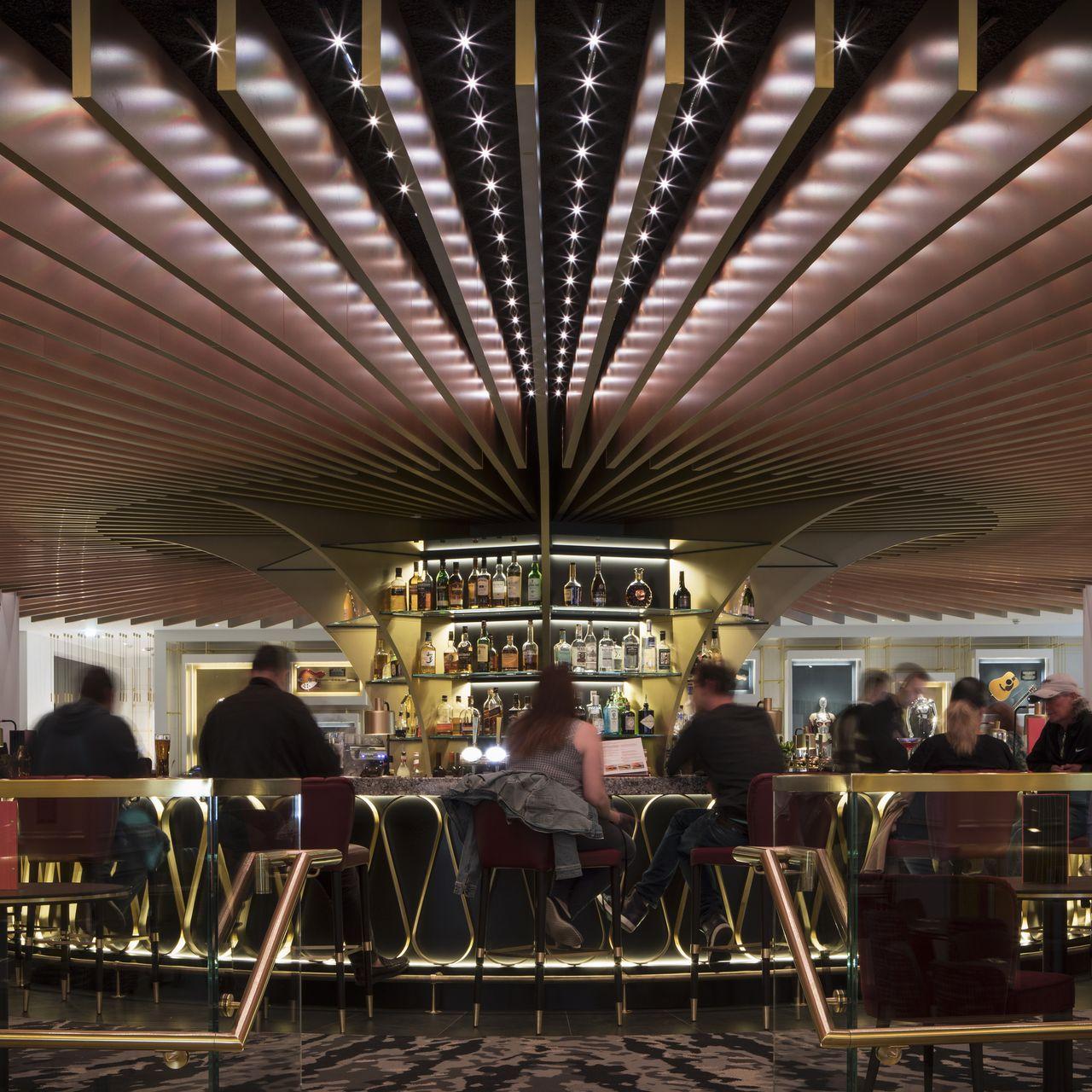

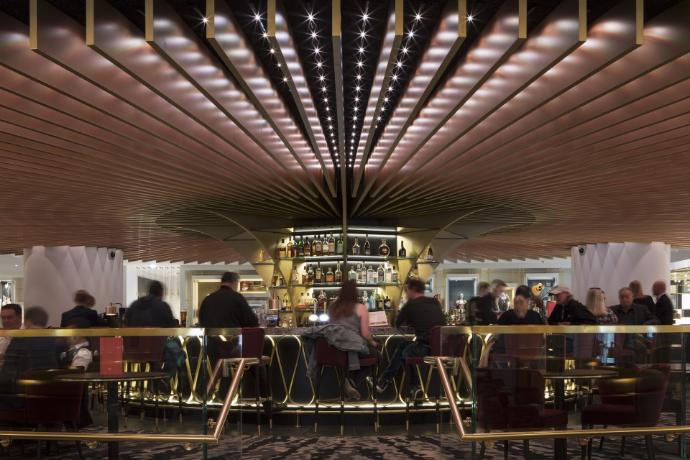

Hard Rock Hotel, London
