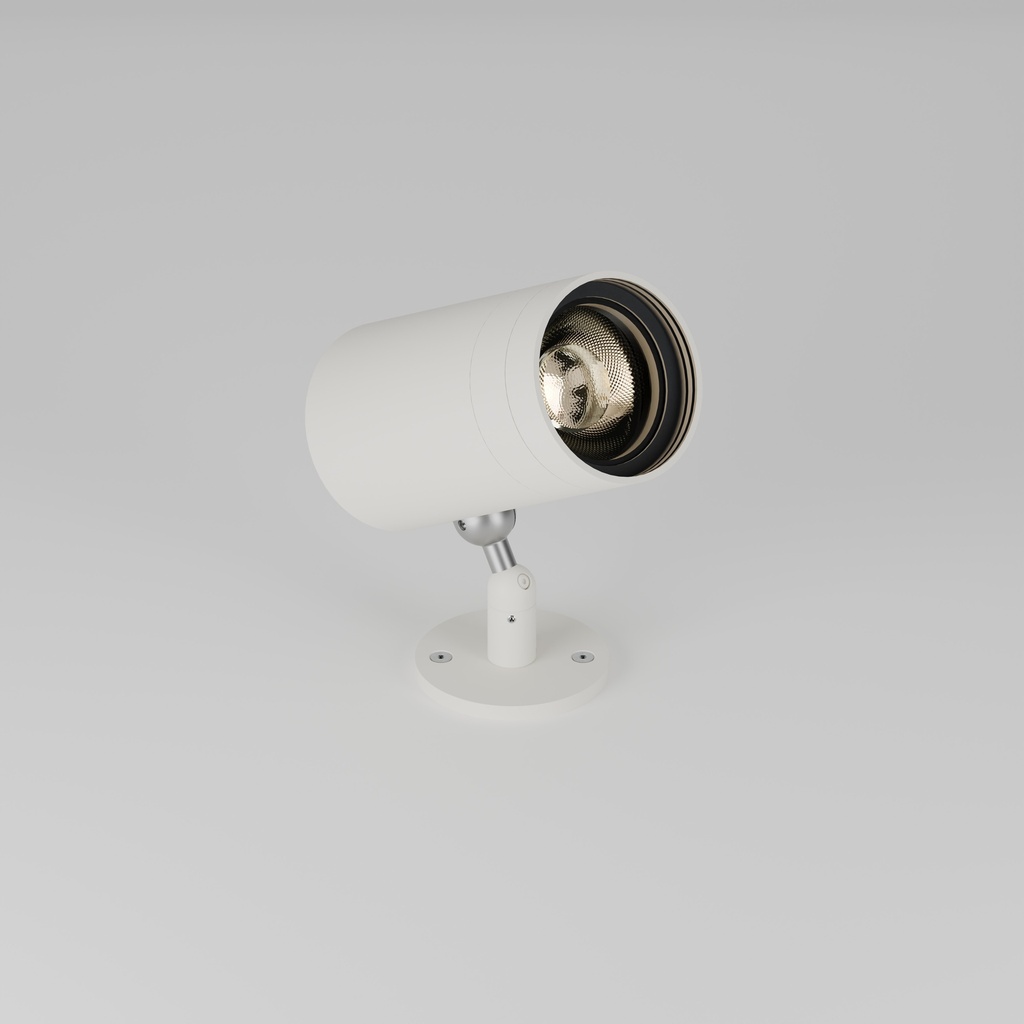

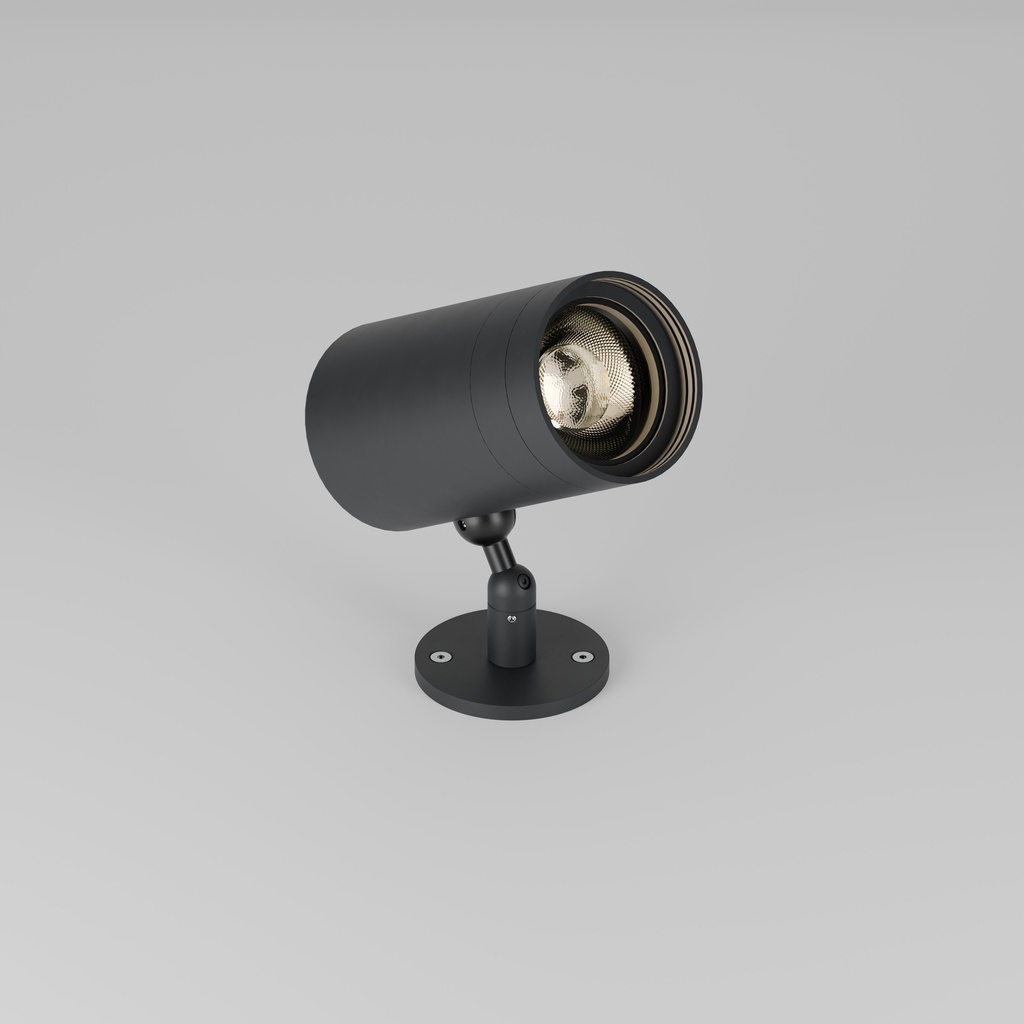

ZTA.70.Surface.Zoom.N
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.70.Surface.Zoom.N is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
This version features a variable zoom optic range of 17.2° to 58.5° maintaining excellent beam quality throughout. With a high output of up to 1419lm and CRI up to 98, it delivers exceptional performance for focused, adjustable illumination.
Key Features
• Sustainable construction: made from recycled aluminium with durable anodised and powder-coated finishes. Specialist finishes available on request.
• Variable zoom: adjustable beam from 17.2° to 58.5°, with smooth optical transition and minimal artefacting.
• High-output performance: delivered lumens up to 1419lm and CRI up to 98.
• Versatile adjustment: 363° pan and 130° tilt with lockable spot.
• Advanced dimming: local dim, DALI, 0–10V, and Wireless dimming options, down to 0.1%.
• Customisable Accessories: Can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling-mounted track installations.
Learn more about sl90 and sl98
Download:
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.70.Surface.Zoom.N is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
This version features a variable zoom optic range of 17.2° to 58.5° maintaining excellent beam quality throughout. With a high output of up to 1419lm and CRI up to 98, it delivers exceptional performance for focused, adjustable illumination.
Key Features
• Sustainable construction: made from recycled aluminium with durable anodised and powder-coated finishes. Specialist finishes available on request.
• Variable zoom: adjustable beam from 17.2° to 58.5°, with smooth optical transition and minimal artefacting.
• High-output performance: delivered lumens up to 1419lm and CRI up to 98.
• Versatile adjustment: 363° pan and 130° tilt with lockable spot.
• Advanced dimming: local dim, DALI, 0–10V, and Wireless dimming options, down to 0.1%.
• Customisable Accessories: Can house up to two lens accessories and various attachments.
• Ceiling mounting only: designed exclusively for ceiling-mounted track installations.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA70.surface.zoom.n - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
230V/240V via 3 circuit track
Light source
6mm LES COB
Initial output
SL90 13.6W 34Vf at 400mA
2700K • 1641lm • 121lm/W
3000K • 1710lm • 126lm/W
3500K • 1727lm • 127lm/W
4000K • 1773lm • 130lm/W
SL98 14.5W 36.4Vf at 400mA
2700K • 1313lm • 90lm/W
3000K • 1403lm • 97lm/W
3500K • 1403lm • 97lm/W
4000K • 1481lm • 102lm/W
Light distribution
Narrow zoom extent 17.2°
Wide Flood zoom extent 58.5°
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.84kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
SL90 (1710lm initial output at 3000K)
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000392
Soft spread lens to product a soft elliptical beam
Order no. ITY-000430
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000431
Diffuser lens used for softening and widening beams
Order no. ITY-000429
Clear lens can be used as protection from dirt/debris
Order no. ITY-000433
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000434
This product can accept one of the following attachments:
Removeable barn doors used to crop beams
Order no. STD-000302
Removeable straight cut or slash cut snoot.
Order no. STD-000612
