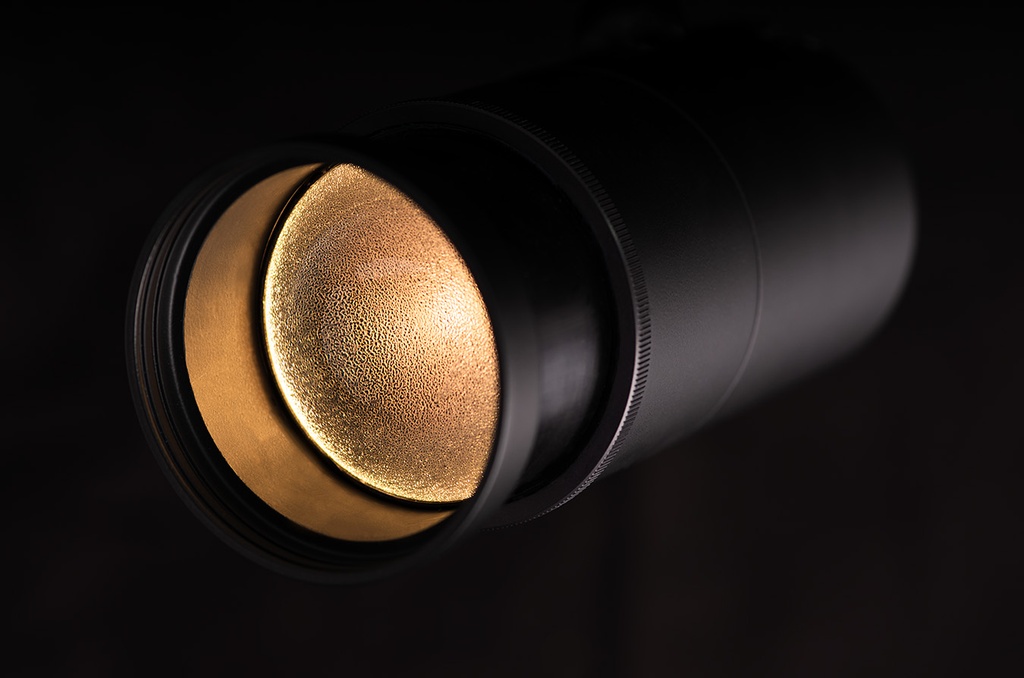

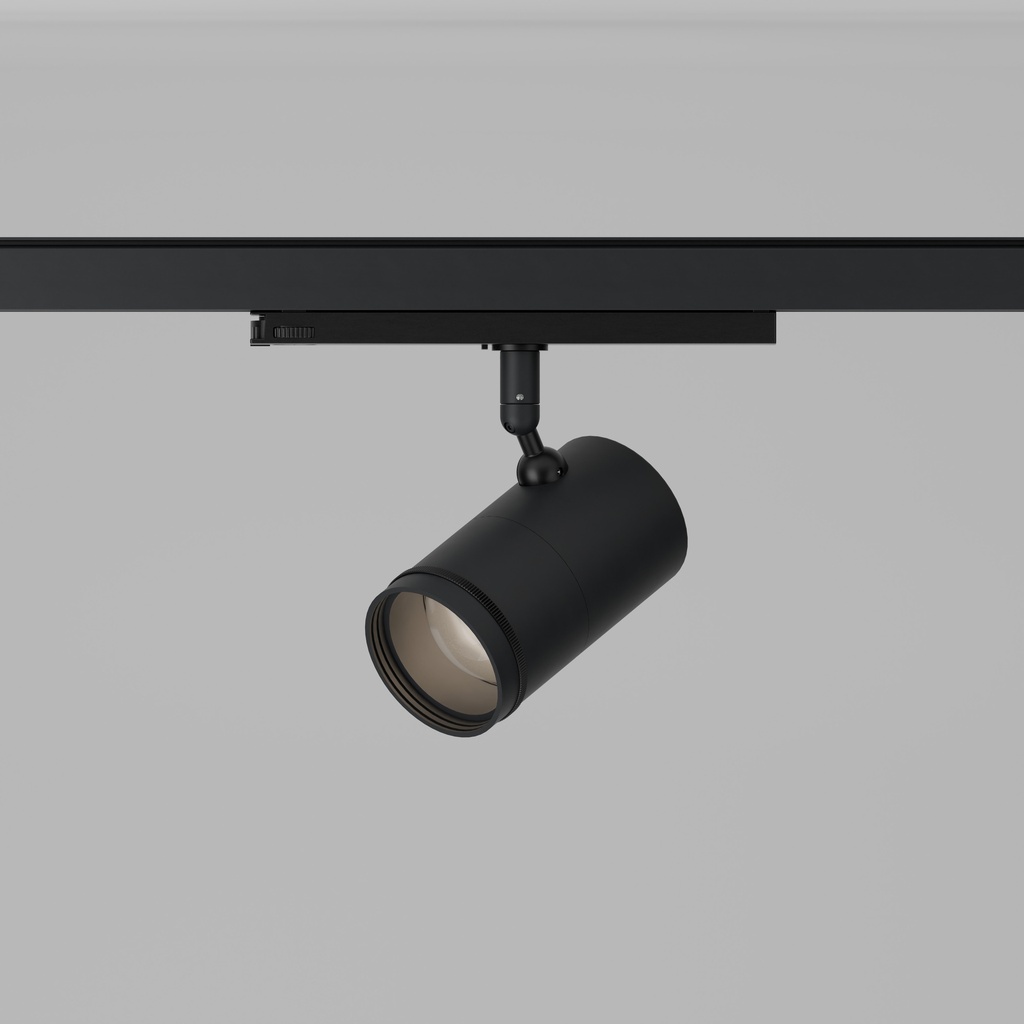

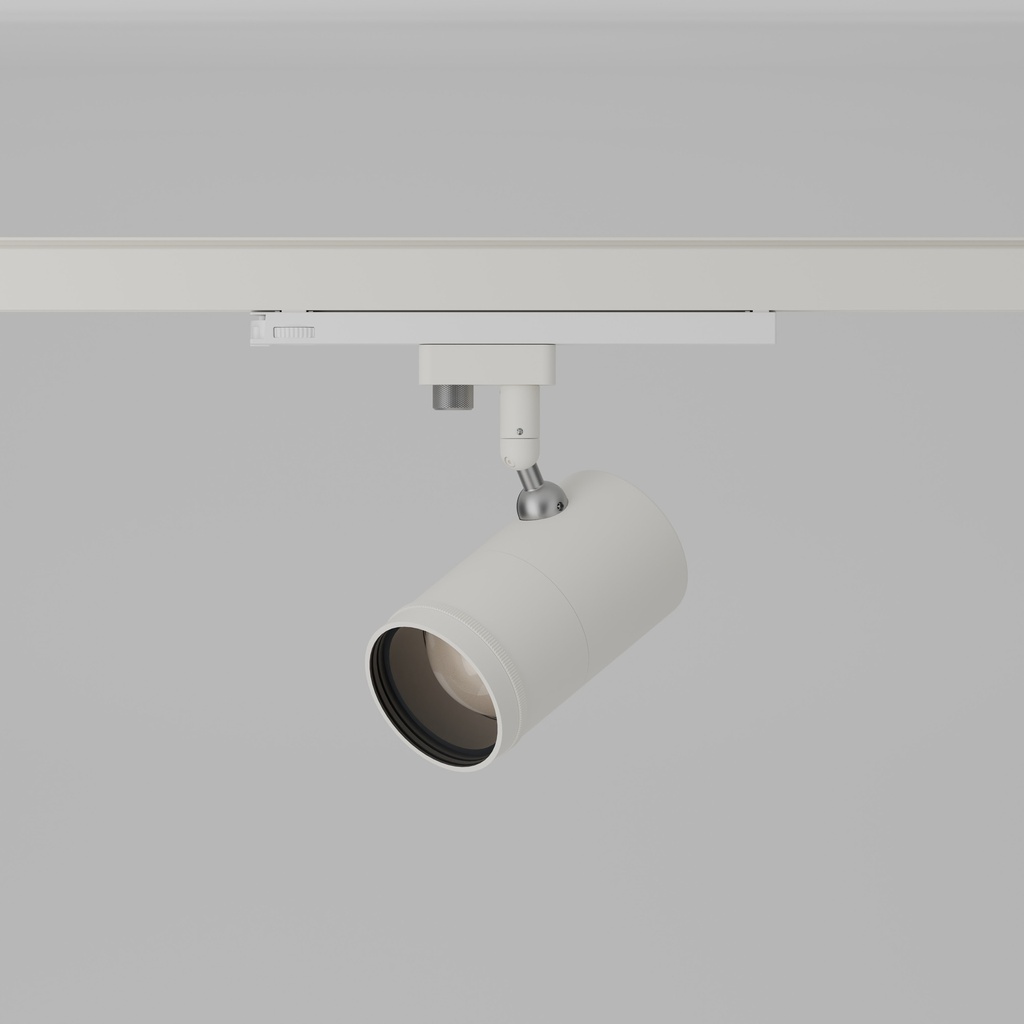

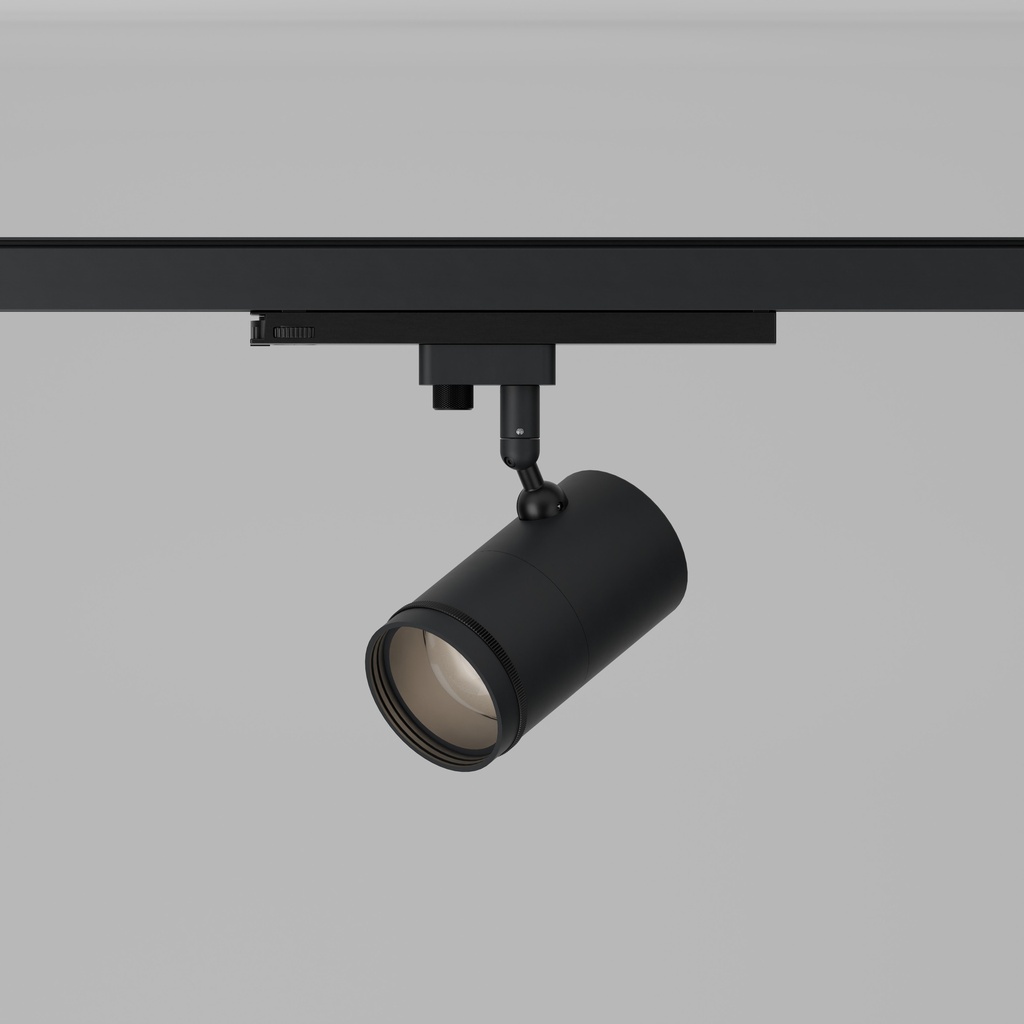

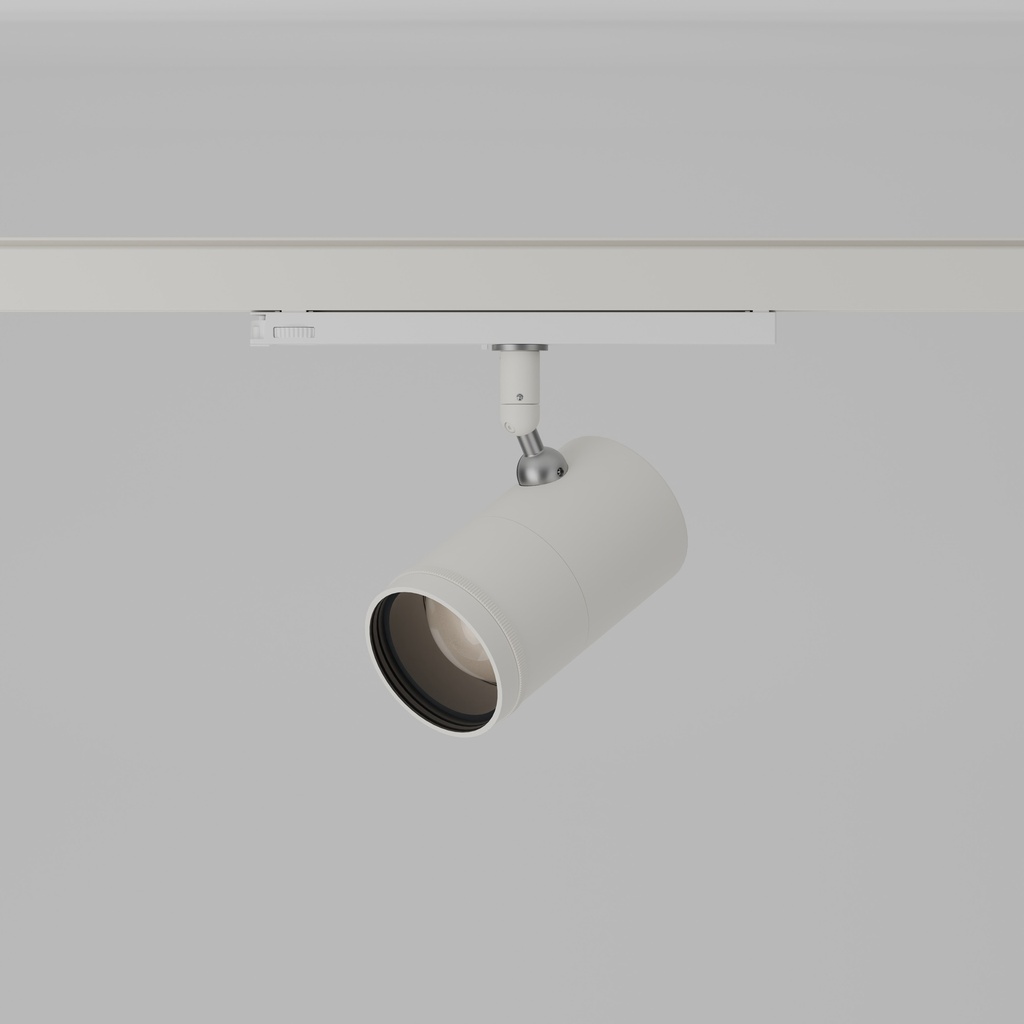

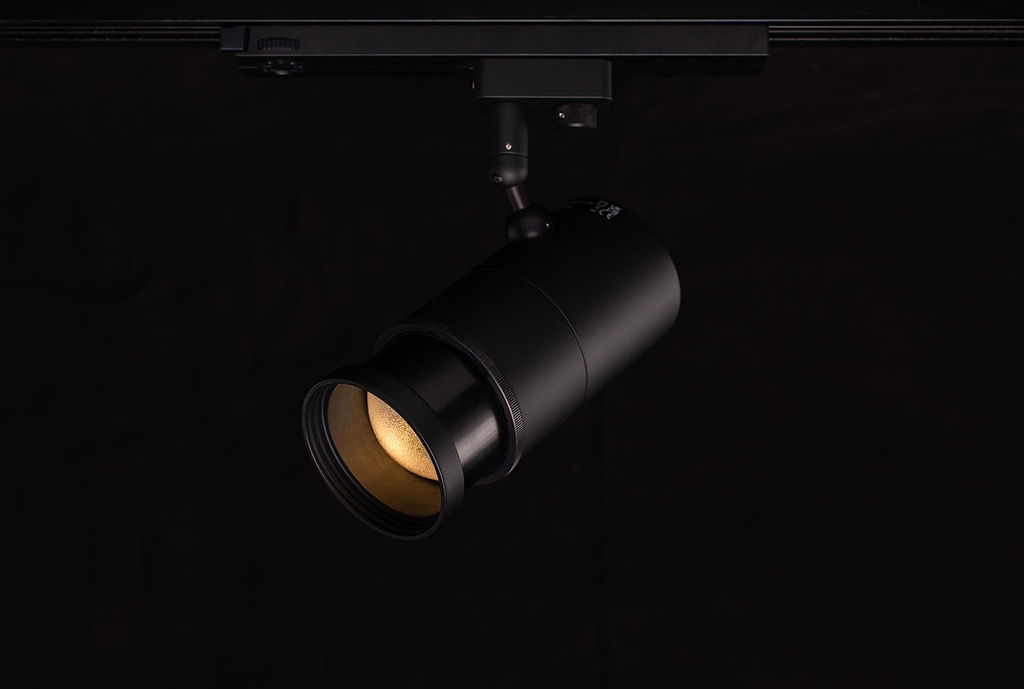

ZTA.70.Mains Track.Zoom.VN
Modular high-performance, mains track-mounted spotlight system, ideal for precise architectural lighting in Museums, Galleries, Retail and Workplace environments. Developed with long-term sustainability and reusability in mind, this spotlight achieves high technical performance without compromising environmental values.
Product Description

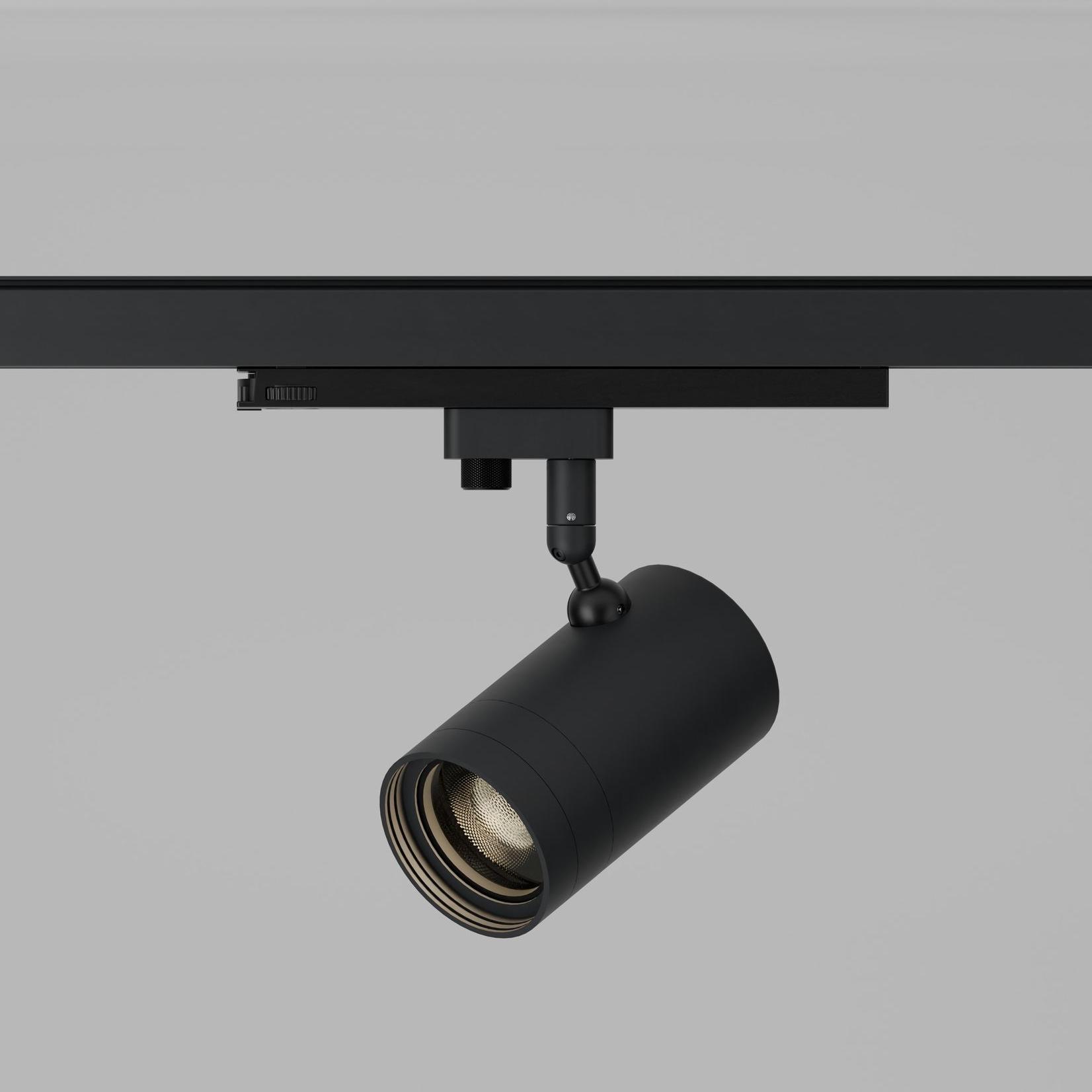

ZTA.70.Mains Track.Zoom.VN is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Compatible with 3-circuit adapters for 120-277V Stucchi, Eutrac, Global Pulse, and other track systems, this spotlight includes integral dimming control gear.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
It features a glass zoom optic offering an exceptional beam range of 9.5° to 57.7° providing precision illumination in sensitive or highly focused applications.
With CRI values up to 98 and output up to 1197lm, it ensures high colour fidelity and excellent beam consistency.
Key Features
• Precision glass zoom optics: exceptionally narrow beam control from 9.5° to 57.7°, optimised for precise lighting tasks.
• Sustainable by design: constructed from recycled aluminium and designed for reusability and repair.
• Outstanding colour performance: up to 98 CRI, R9: 99, and excellent TM-30 scores.
• Flexible mounting: designed for use with 3-circuit mains track systems across global standards.

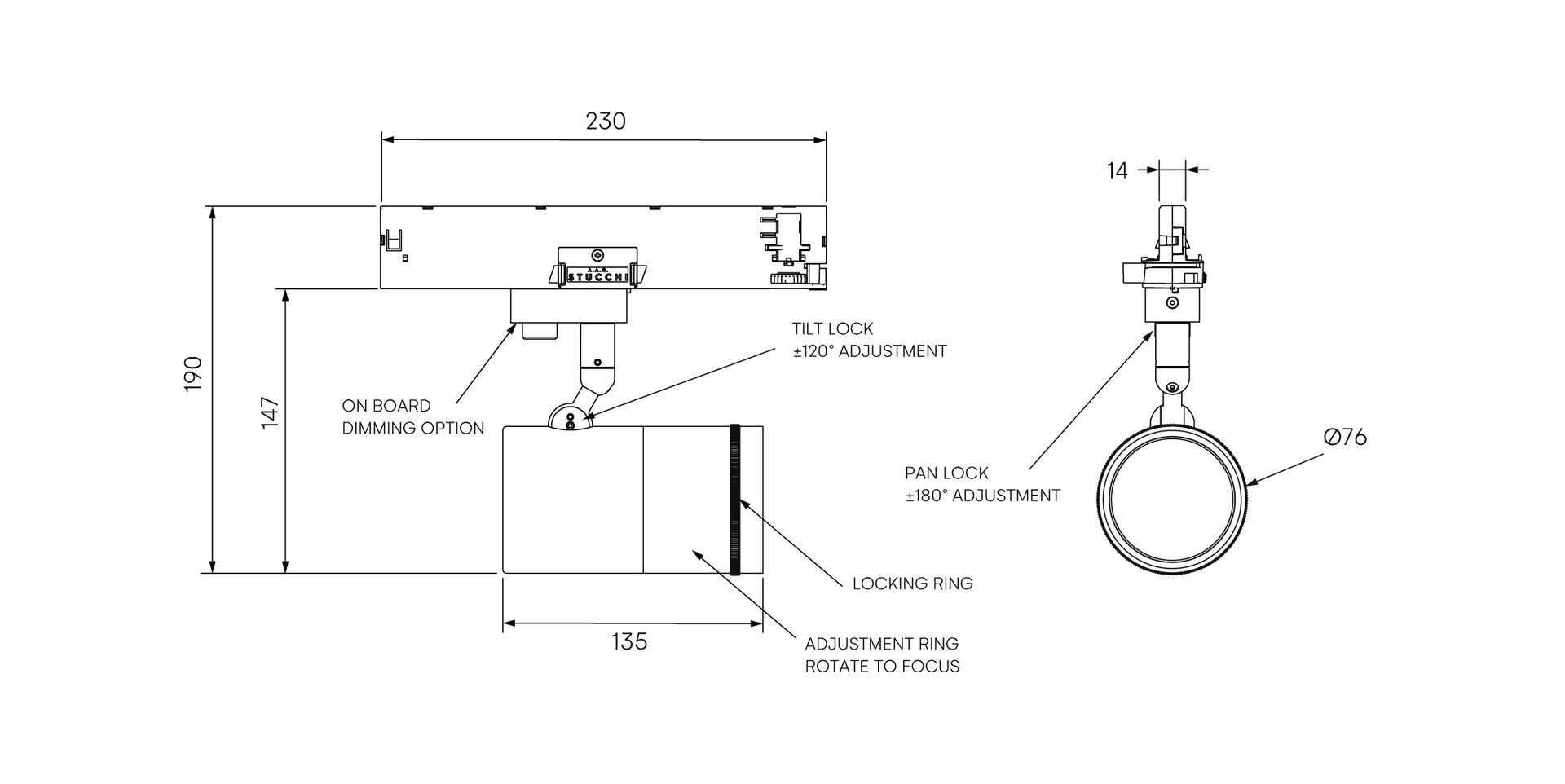

• Smooth adjustability: 363° pan and 130° tilt with lockable positioning.
• Full dimming capability: supports local dim, DALI, 0–10V, and Wireless dimming down to 0.1%.
• Accessory-ready: can accept up to two lens accessories and other optical attachments.
• Ceiling mounting only: for ceiling-mounted mains track applications.
Learn more about sl90 and sl98
Download:
ZTA.70 zoom product brochure
Modular high-performance, mains track-mounted spotlight system, ideal for precise architectural lighting in Museums, Galleries, Retail and Workplace environments. Developed with long-term sustainability and reusability in mind, this spotlight achieves high technical performance without compromising environmental values.
Product Description
ZTA.70.Mains Track.Zoom.VN is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Compatible with 3-circuit adapters for 120-277V Stucchi, Eutrac, Global Pulse, and other track systems, this spotlight includes integral dimming control gear.
The spotlight can accommodate up to two lens accessories and multiple attachments, making it highly customisable for various lighting needs.
It features a glass zoom optic offering an exceptional beam range of 9.5° to 57.7° providing precision illumination in sensitive or highly focused applications.
With CRI values up to 98 and output up to 1197lm, it ensures high colour fidelity and excellent beam consistency.
Key Features
• Precision glass zoom optics: exceptionally narrow beam control from 9.5° to 57.7°, optimised for precise lighting tasks.
• Sustainable by design: constructed from recycled aluminium and designed for reusability and repair.
• Outstanding colour performance: up to 98 CRI, R9: 99, and excellent TM-30 scores.
• Flexible mounting: designed for use with 3-circuit mains track systems across global standards.
• Smooth adjustability: 363° pan and 130° tilt with lockable positioning.
• Full dimming capability: supports local dim, DALI, 0–10V, and Wireless dimming down to 0.1%.
• Accessory-ready: can accept up to two lens accessories and other optical attachments.
• Ceiling mounting only: for ceiling-mounted mains track applications.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
ZTA.70.mains track.zoom.vn
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
6mm LES COB
Initial output
SL90 13.6W 34Vf at 400mA
2700K • 1641lm • 121lm/W
3000K • 1710lm • 126lm/W
3500K • 1727lm • 127lm/W
4000K • 1773lm • 130lm/W
SL98 14.5W 36.4Vf at 400mA
2700K • 1313lm • 90lm/W
3000K • 1403lm • 97lm/W
3500K • 1403lm • 97lm/W
4000K • 1481lm • 102lm/W
Light distribution
Narrow zoom extent 9.5°
Wide Flood zoom extent 57.7°
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
1kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
SL90 (1710lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000392
Soft spread lens to product a soft elliptical beam
Order no. ITY-000430
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000431
Diffuser lens used for softening and widening beams
Order no. ITY-000429
Clear lens can be used as protection from dirt/debris
Order no. ITY-000433
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000434
This product can accept one of the following attachments:
Removeable barn doors used to crop beams
Order no. STD-000302

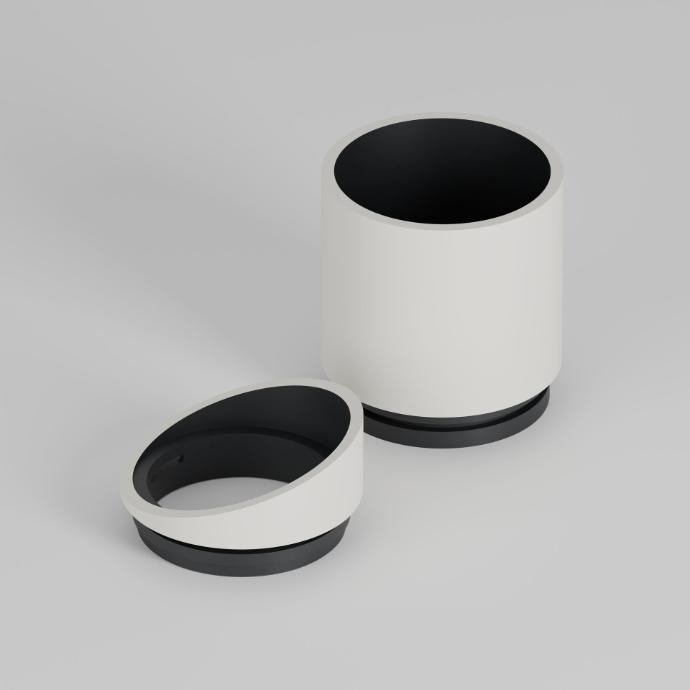

Removeable straight cut or slash cut snoot.
Order no. STD-000612
