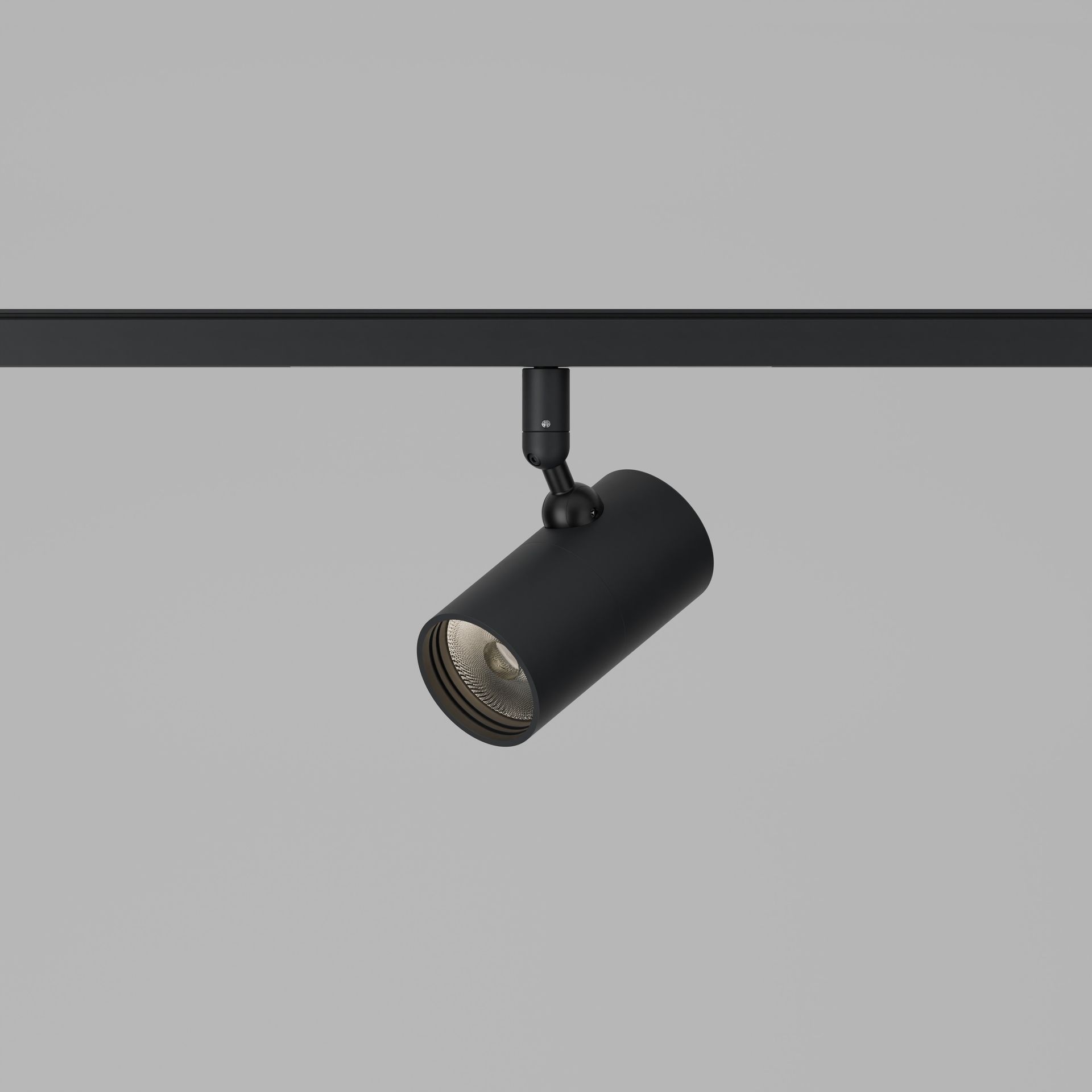

ZTA.50.LV Track.Zoom
Modular high-performance, mains track-mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Product Description
ZTA.50.Mains Track.Zoom is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics. Easily interchangeable between fixed optic, Wall Wash and Framing projector options.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Zoom optics can be easily swapped to Fixed, Wall Wash and additional framer attachments.

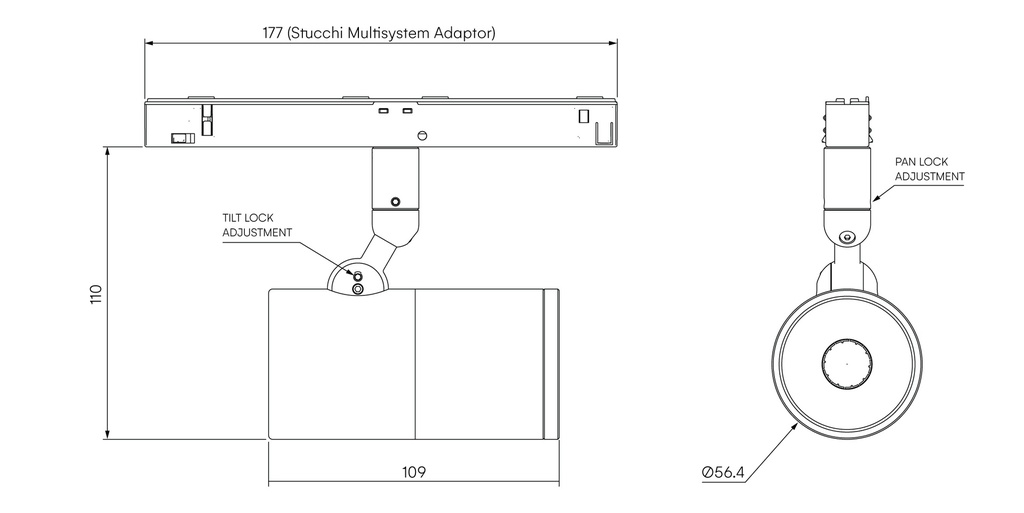

• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• Broad compatibility: 3-circuit adapter supports multiple track systems (Stucchi, Eutrac, Global Pulse).
• Advanced dimming options: On-board, DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: Up to 98 CRI LEDs with interchangeable optical systems.
• Customisable accessories: can house up to one lens accessory and various attachments.
• Ceiling mounting only: designed exclusively for ceiling installations.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.50.SURFACE - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Service Commitment
Electrical
Supply
48V supply to Stucchi Multisystem EVO track
Power
7.9W
31.6Vf
Technical
Light Source
6mm LES COB
90 CRI 250mA
840lm initial output at 2700K 107lm/W
873lm initial output at 3000K 111lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W
95 CRI 250mA
751lm initial output at 2700K 95lm/W
798lm initial output at 3000K 101lm/W
859lm initial output at 3500K 109lm/W
895lm initial output at 4000K 113lm/W
Light Distribution
Zoom 13.7° - 48.1º
Lumen Maintenance L70 B0 F0 50,000 hours
Colour Consistency 1 x 2 SDCM
Colour Maintenance ± 0.003 ∆u’v’
IP Rating IP20
Weight 0.45kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.45kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
90 CRI (873lm initial output)
Very Narrow Extent 13.7°
Flood Extent 48.1º
95 CRI (798lm initial output)
Very Narrow Extent 13.7°
Flood Extent 48.1º
Photometry
To access our photometry files please view this page from a desktop device.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000394

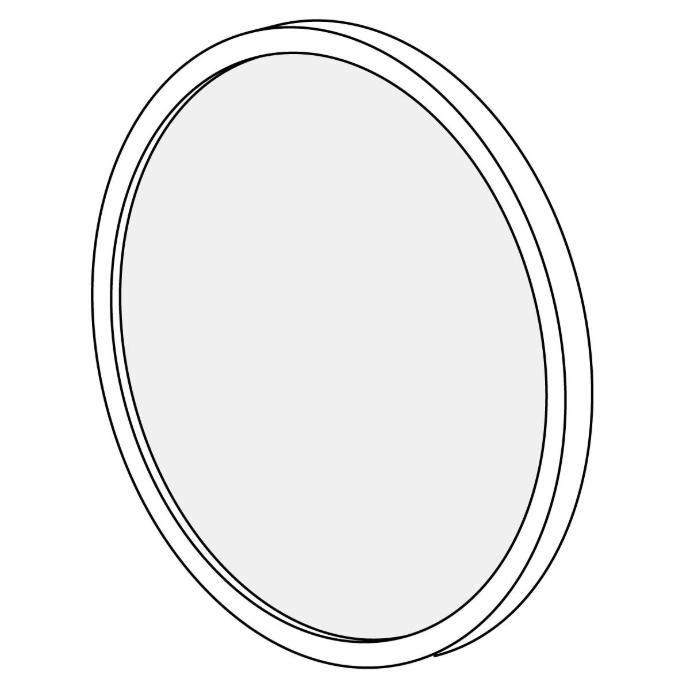

Soft spread lens to product a soft elliptical beam
Order no. ITY-000439
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000437
Diffuser lens used for softening and widening beams
Order no. ITY-000438
Clear lens can be used as protection from dirt/debris
Order no. ITY-000436
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000441
This product can accept one of the following attachments:
Framing attachment for precisely framing pieces of artwork. See here for full product configurator.
Order no. Framing attachment.fixed or adjustable.
Removeable barn doors used to crop beams
Order no. ZTA.50.LV Track.Zoom.Barn doors.
