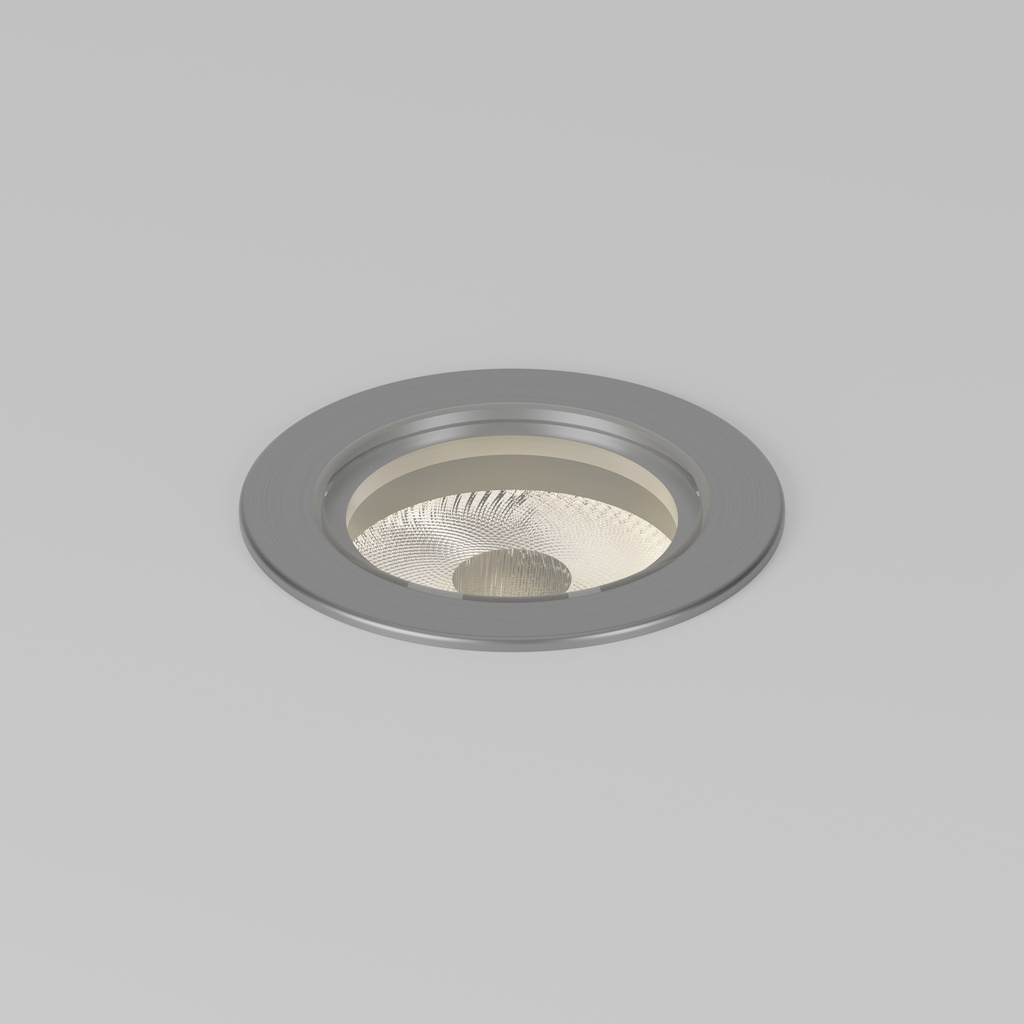

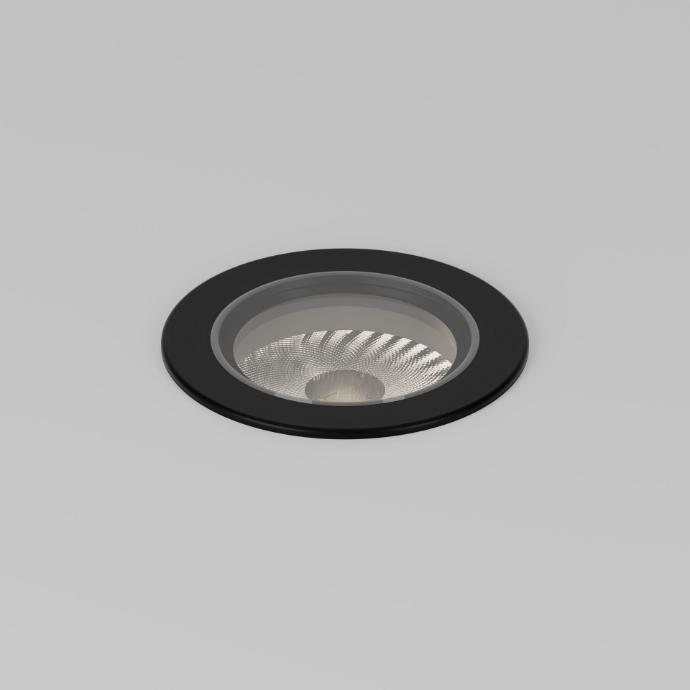

Vole
Exterior in-ground recessed fixed uplighter, for enhancing architectural details, gardens and pathways.
Product Description
The Vole is an IP66 rated fixed exterior up light, designed to highlight textures, add depth to trees, sculptures, facades and other outdoor features. Perfect for both commercial and residential applications, ideal for bringing landscapes to life after dark. Machined from recycled aluminium with an anodised finish for enhanced durability and a toughened glass lens.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Interchangeable optics to allow Very Narrow to Wide Flood with the addition of secondary lenses to create elliptical beam options.
Optional asymmetric anti-glare accessory available.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
• First fix installation sleeve available for mounting.
Learn more about sl90 and sl98
Exterior in-ground recessed fixed uplighter, for enhancing architectural details, gardens and pathways.
Product Description
The Vole is an IP66 rated fixed exterior up light, designed to highlight textures, add depth to trees, sculptures, facades and other outdoor features. Perfect for both commercial and residential applications, ideal for bringing landscapes to life after dark. Machined from recycled aluminium with an anodised finish for enhanced durability and a toughened glass lens.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Interchangeable optics to allow Very Narrow to Wide Flood with the addition of secondary lenses to create elliptical beam options. Optional asymmetric anti-glare accessory available.
• Advanced dimming options: DALI, 0-10V, and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
• First fix installation sleeve available for mounting.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
VOLE
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
6mm LES COB
Initial output
SL90 8W 32Vf at 250mA
2700K • 1087lm • 136lm/W
3000K • 1133lm • 141lm/W
3500K • 1144lm • 143lm/W
4000K • 1175lm • 147lm/W
SL98 8.6W 34.4Vf at 250mA
2700K • 863lm • 100lm/W
3000K • 923lm • 107lm/W
3500K • 923lm • 107lm/W
4000K • 974lm • 113lm/W
Light distribution
Very Narrow 13.3°
Narrow 14.3º
Medium 24.1º
Flood 36.8º
Wide Flood 50.1º
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP66
Weight
0.5kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP66
Weight: 0.5kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
SL90 (1133lm initial output at 3000K)
6mm LES COB
SL98 (923lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000394
Soft spread lens to product a soft elliptical beam
Order no. ITY-000439
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000437
Diffuser lens used for softening and widening beams
Order no. ITY-000438
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000441
