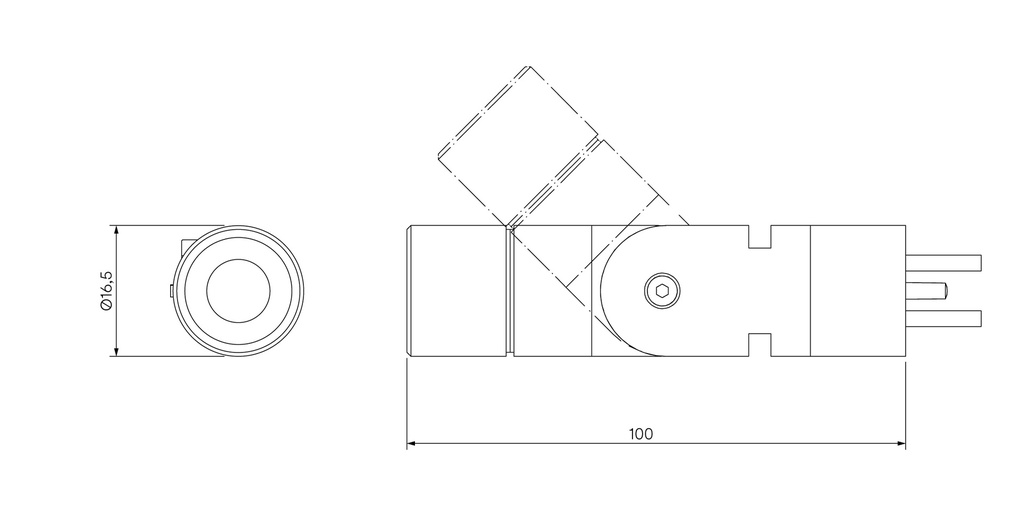

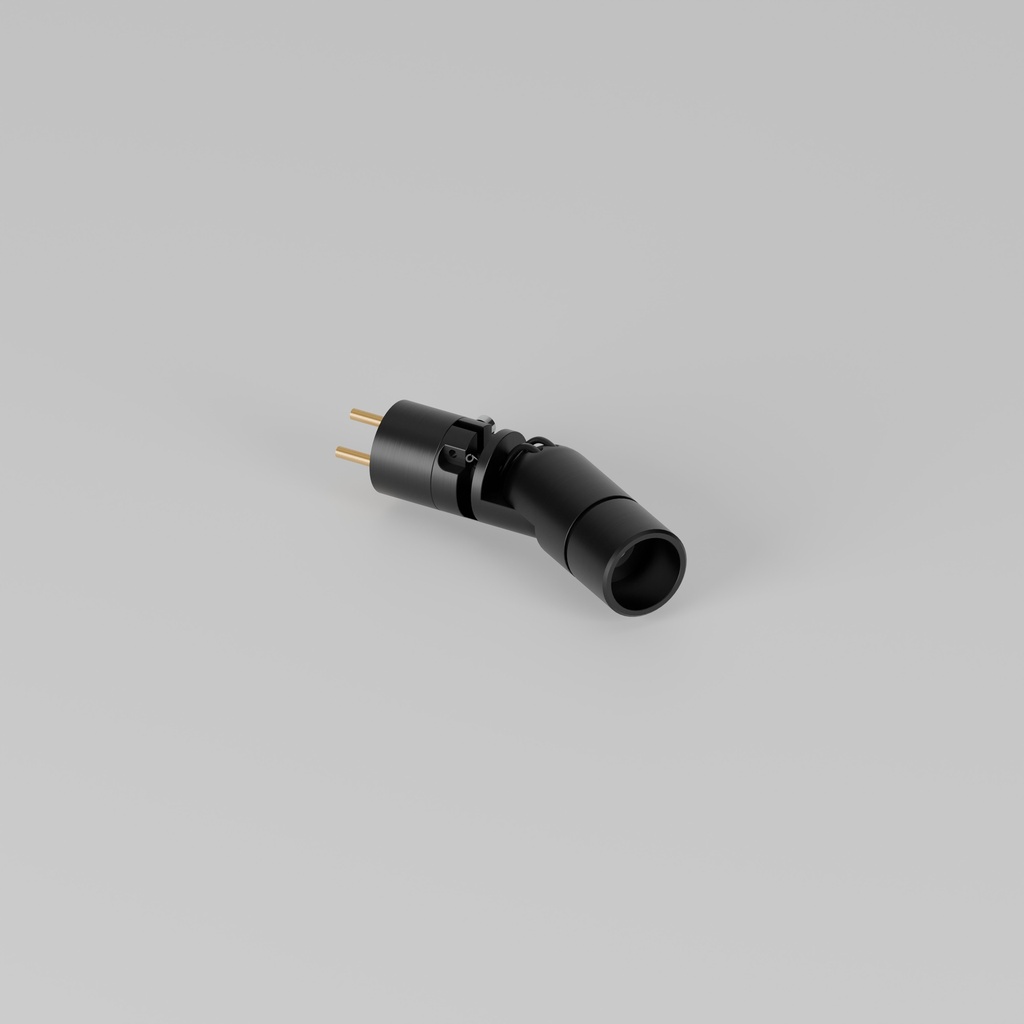

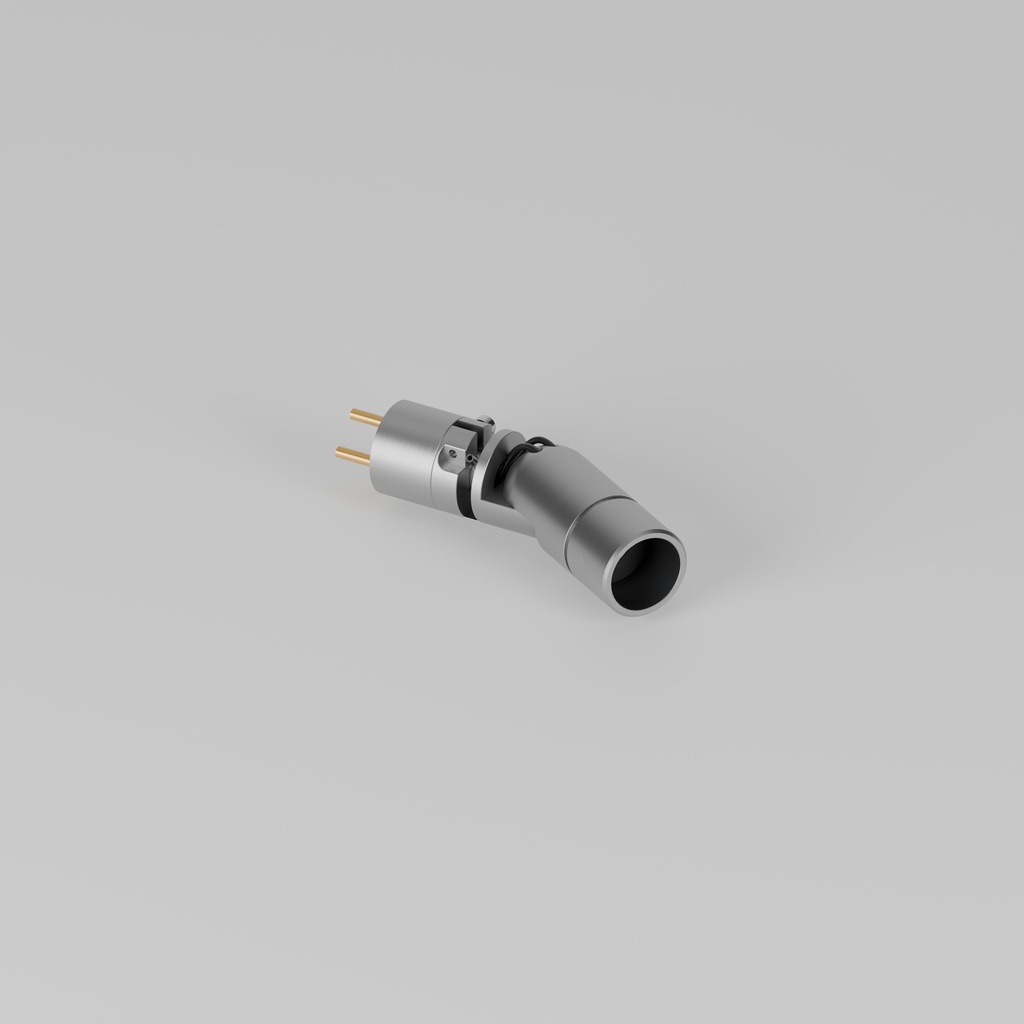

Plug-In Surf S Head
Miniature plug in lighting fixture for Museum, Gallery and Retail displays. For use with our Surf S Tree and Plug-in Surf S Channel systems.
Product Description
The Plug-in Surf S Head is a compact adjustable and highly efficient miniature fixture designed to provide precise illumination for Museum, Gallery and Retail applications.
Constructed from precision-machined recycled aluminium, the system features an anodised finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed interchangeable optics available ranging from Very narrow to Wide Flood to elliptical beam options.

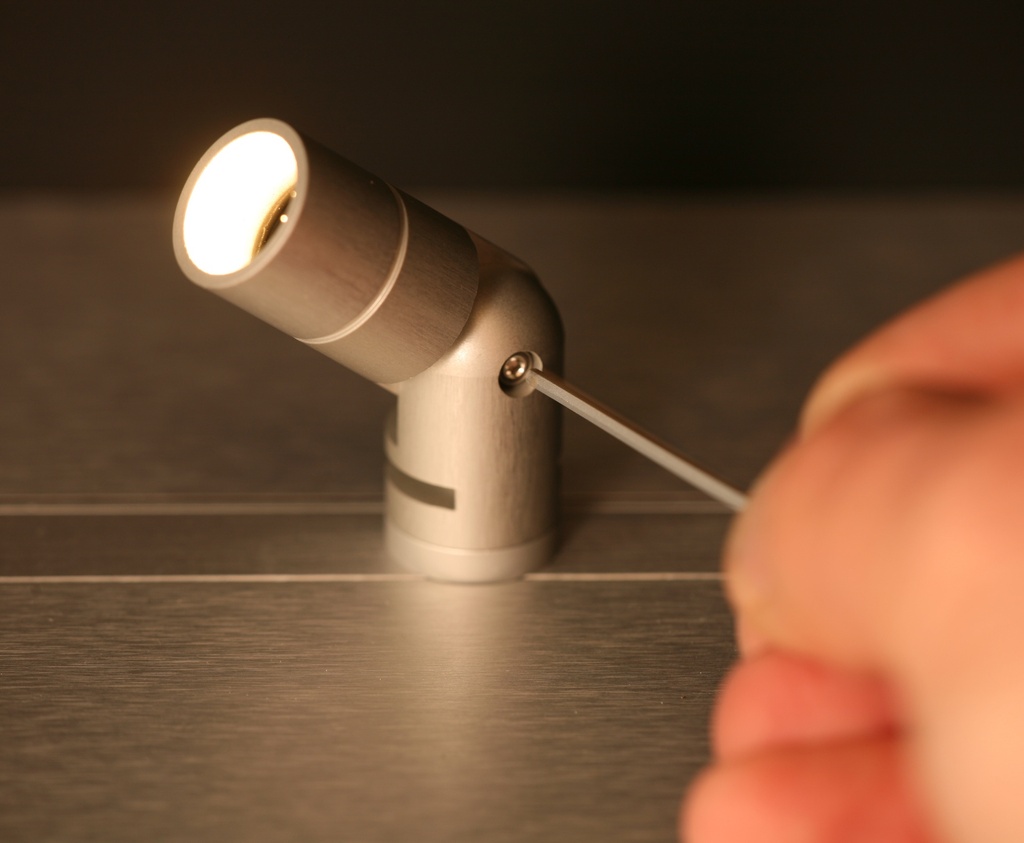

• Lockable Tilt and Pan mechanisms.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs
Plug-in Systems
The Plug-in Surf S Heads can be specified either in a Channel or vertical "Tree".

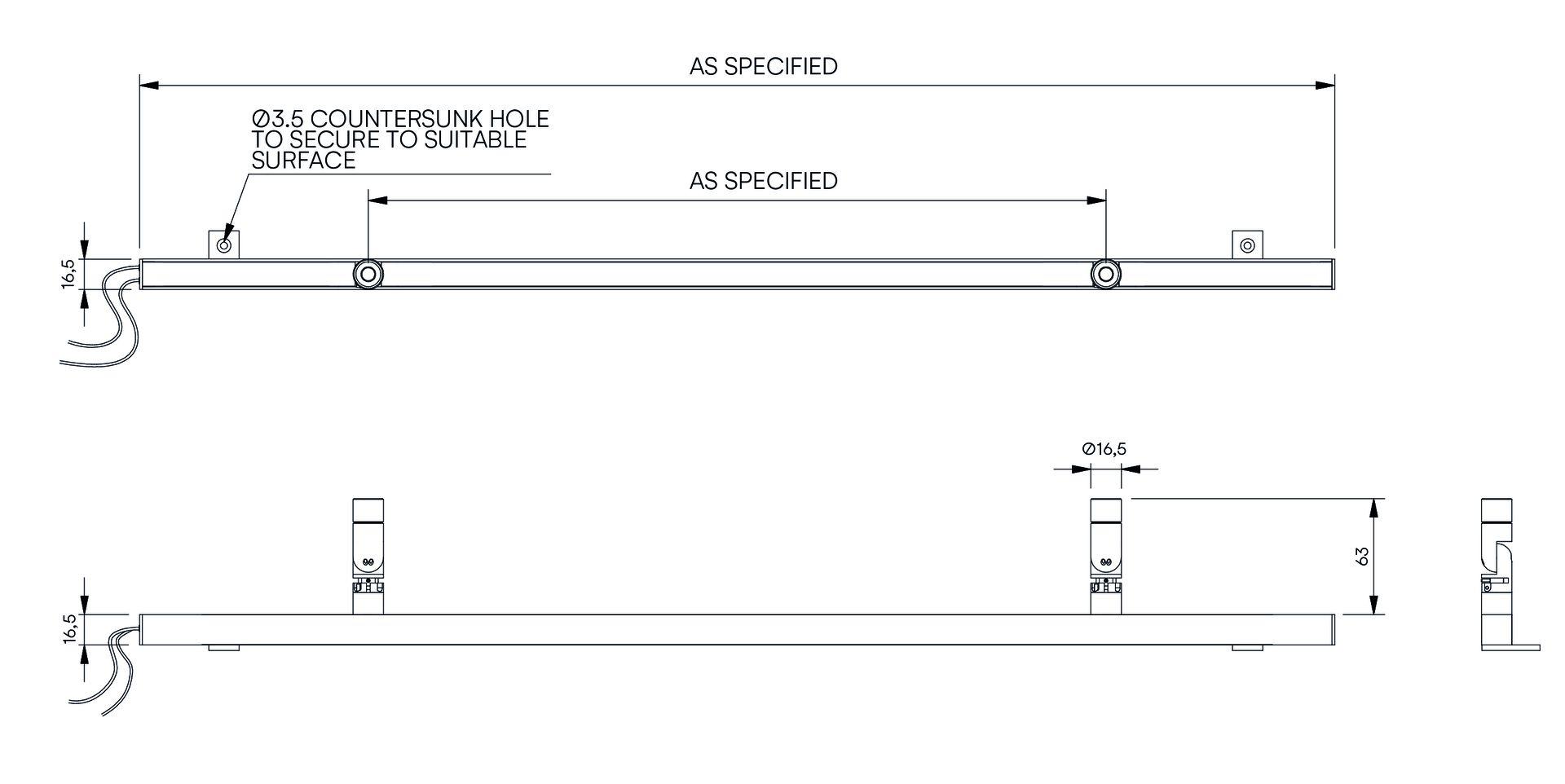

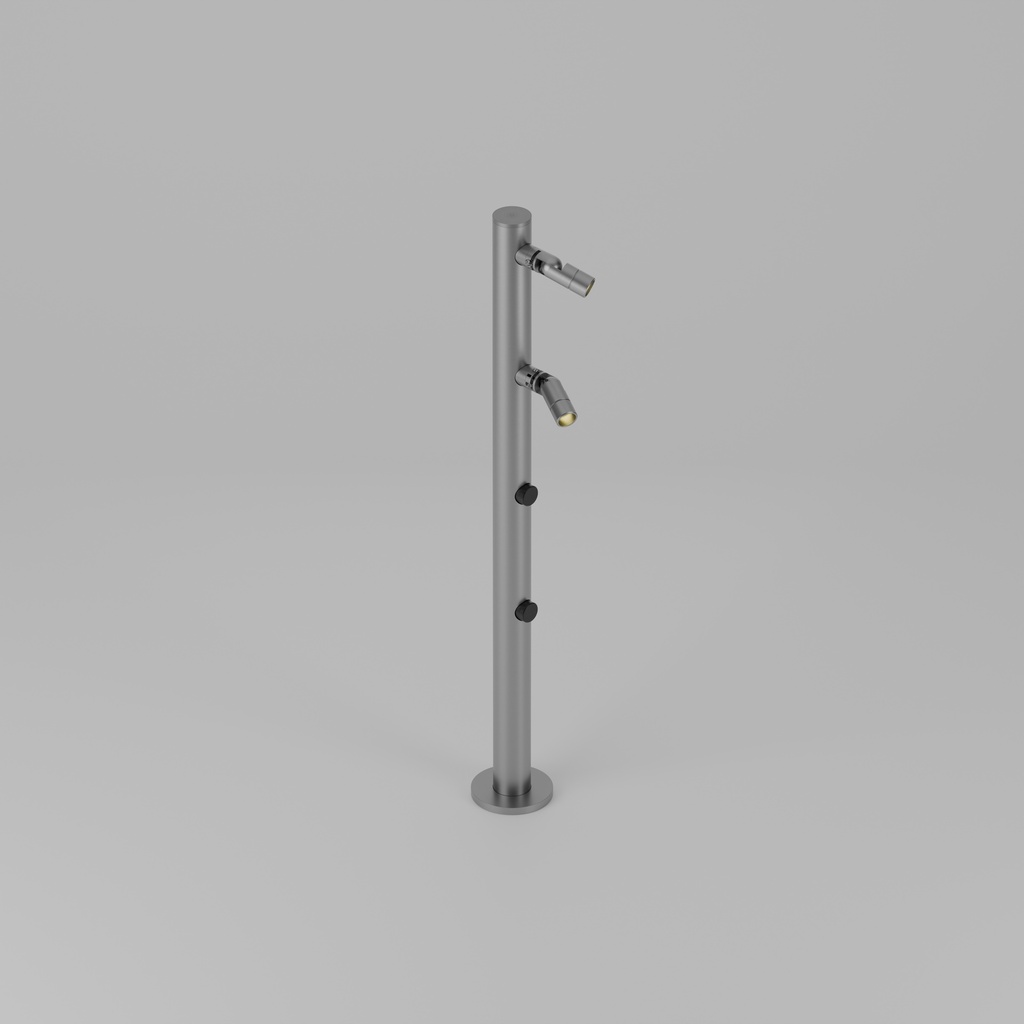

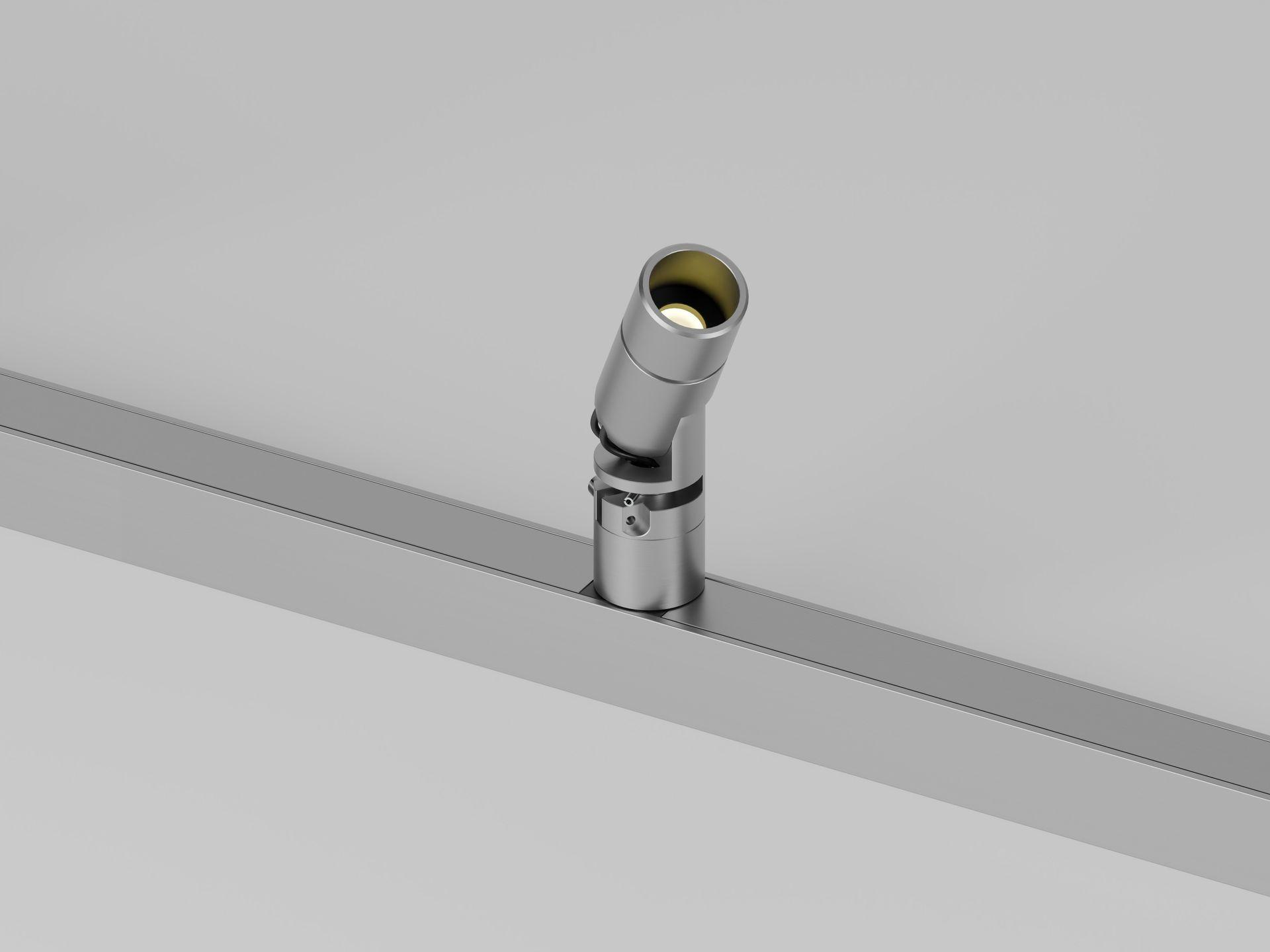

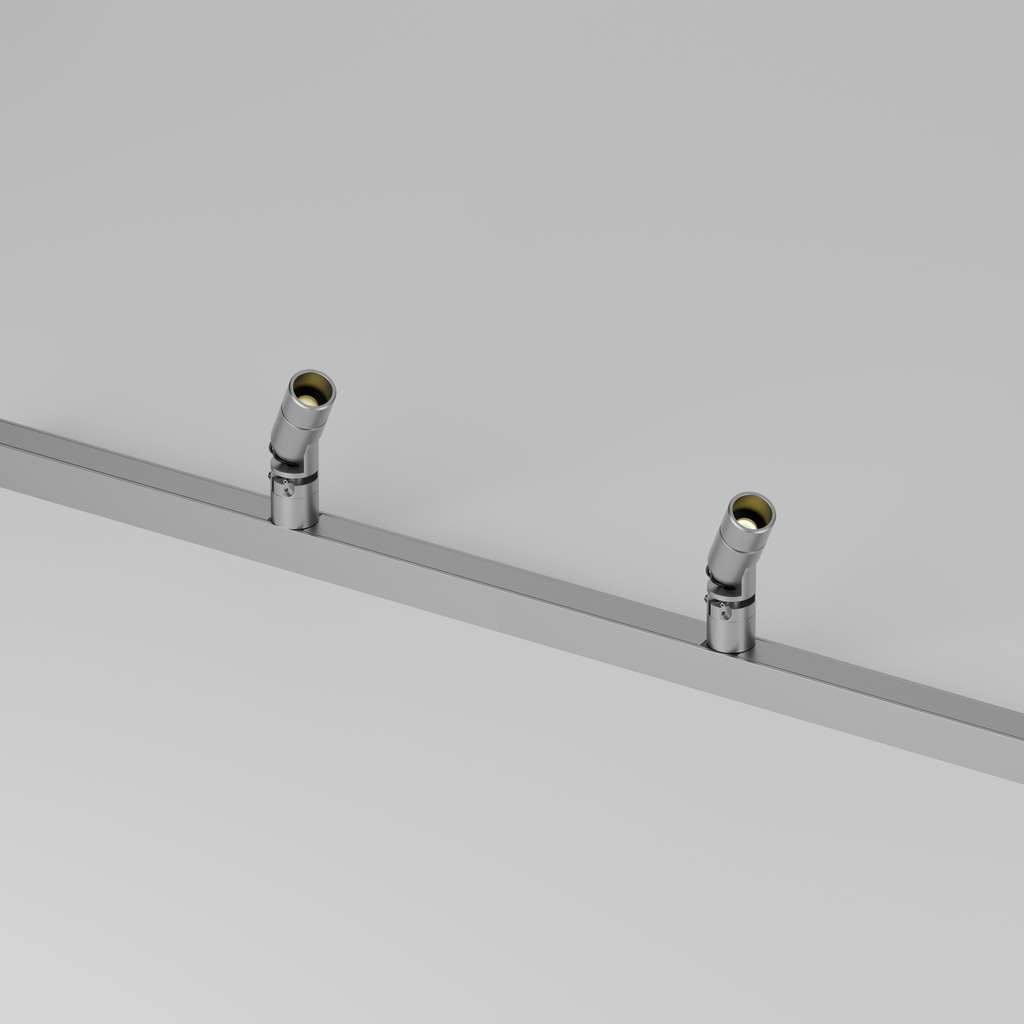

Plug-in Surf S Channel is a linear extrusion measuring 16.5mm x 16.5mm and can be surface mounted or recessed into architectural details, or showcases, horizontally or vertically. Surf S Tree is typically surface mounted standing vertically within sealed showcases.
Plug-in Surf S Channel
Specify channel length, number of apertures and finish for your channel here:

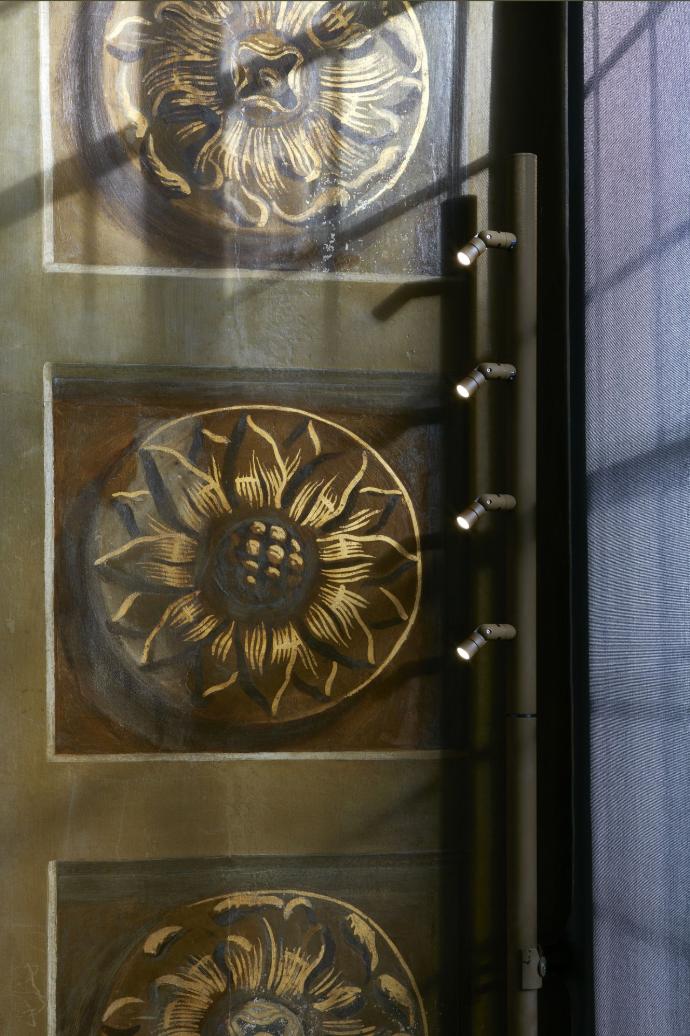

Surf S Tree
Specify tree length, number of apertures and finish for your channel here:
Miniature plug in lighting fixture for Museum, Gallery and Retail displays. For use with our Surf S Tree and Plug-in Surf S Channel systems.
Plug-in Surf S Channelis a linear extrusion measuring 16.5mm x 16.5mm and can be surface mounted or recessed into architectural details, or showcases, horizontally or vertically. Surf S Treeis typically surface mounted standing vertically within sealed showcases.
Product Description
The Plug-in Surf S Head is a compact adjustable and highly efficient miniature fixture designed to provide precise illumination for Museum, Gallery and Retail applications.
Constructed from precision-machined recycled aluminium, the system features an anodised finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised finish. Specialist finishes available on request.
• Fixed interchangeable optics available ranging from Very narrow to Wide Flood to elliptical beam options.
• Lockable Tilt and Pan mechanisms.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
plug-in surf type s head - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Type S
Initial output
95 CRI 1.4W 2.75Vf at 500mA
2700K • 139lm • 99lm/W
3000K • 148lm • 105lm/W
3500K • 158lm • 112lm/W
4000K • 169lm • 120lm/W
Light distribution
Very Narrow 12.5º
Narrow 15.7º
Medium 22.3º
Flood 40º
Wide Flood 54º
Elliptical 19.8º x 33.9º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.034kg
Lumen Maintenance: L70 B50 >66,000 hours
IP Rating: IP20
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (148lm initial output at 3000K)
