CLP

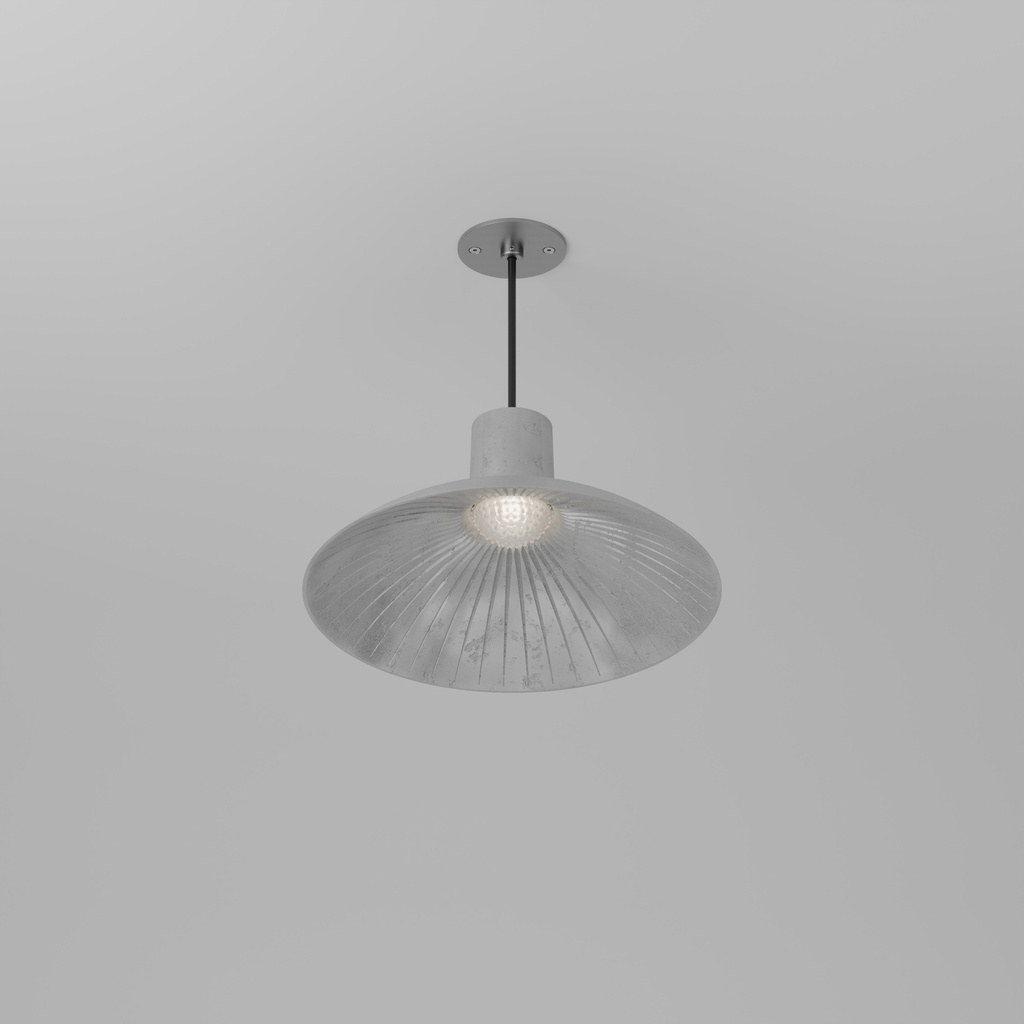

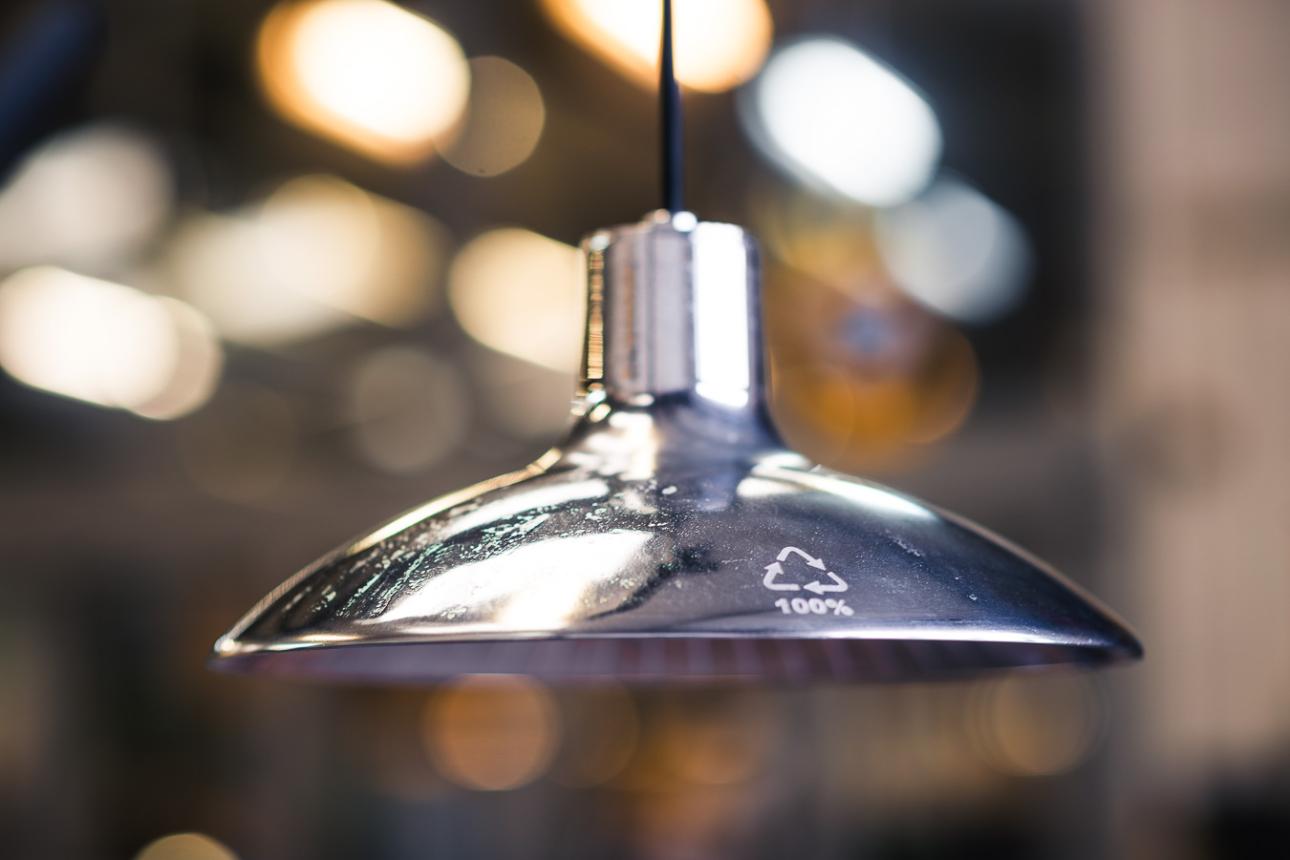

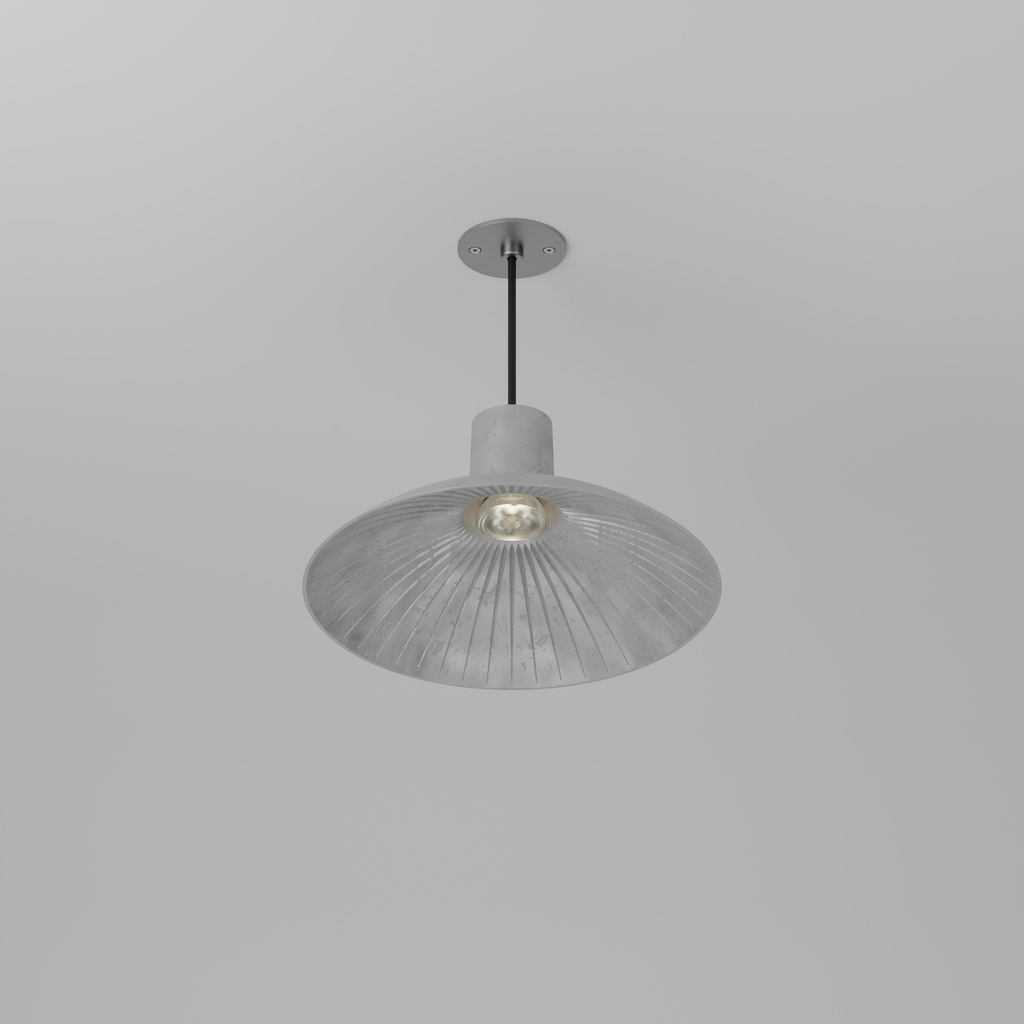

Pendant shade manufactured from recycled aluminium, for enhancing dining, workspace and feature areas.
Product Description
The Cast Light Pendant (CLP) is manufactured entirely from Stoane Lighting's recycled waste aluminium stream, avoiding the need for off-site recycling and manufactured entirely in house.

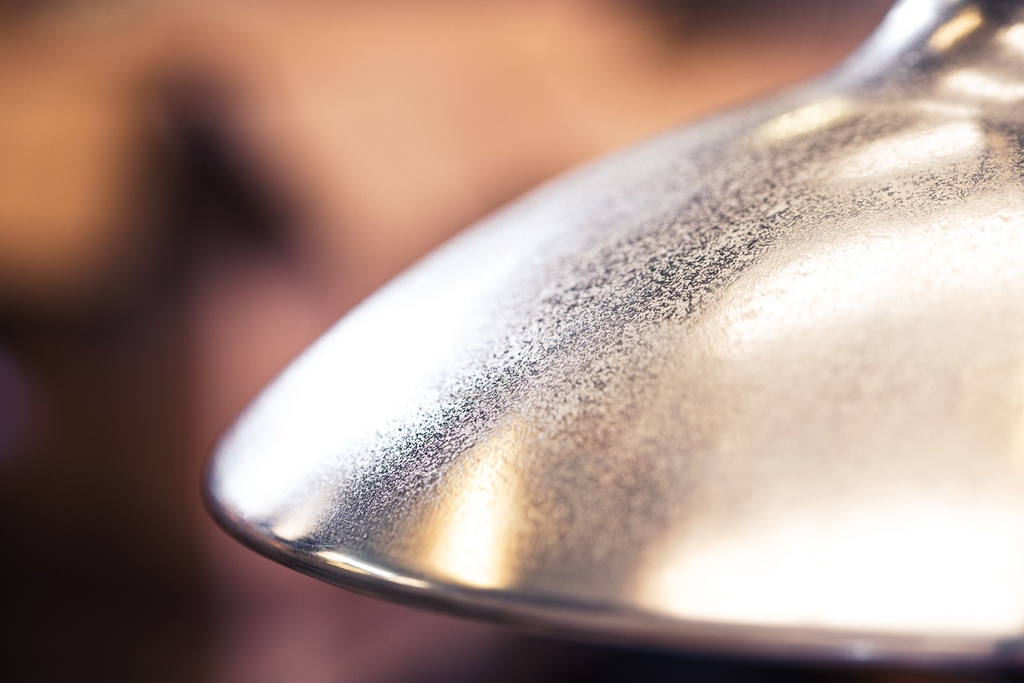

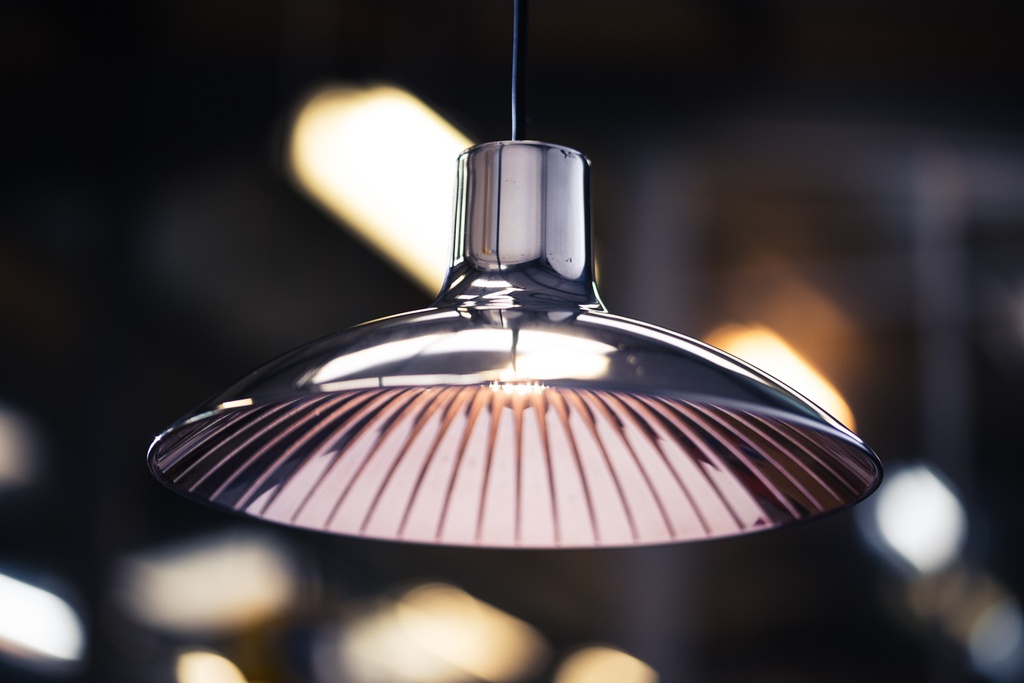

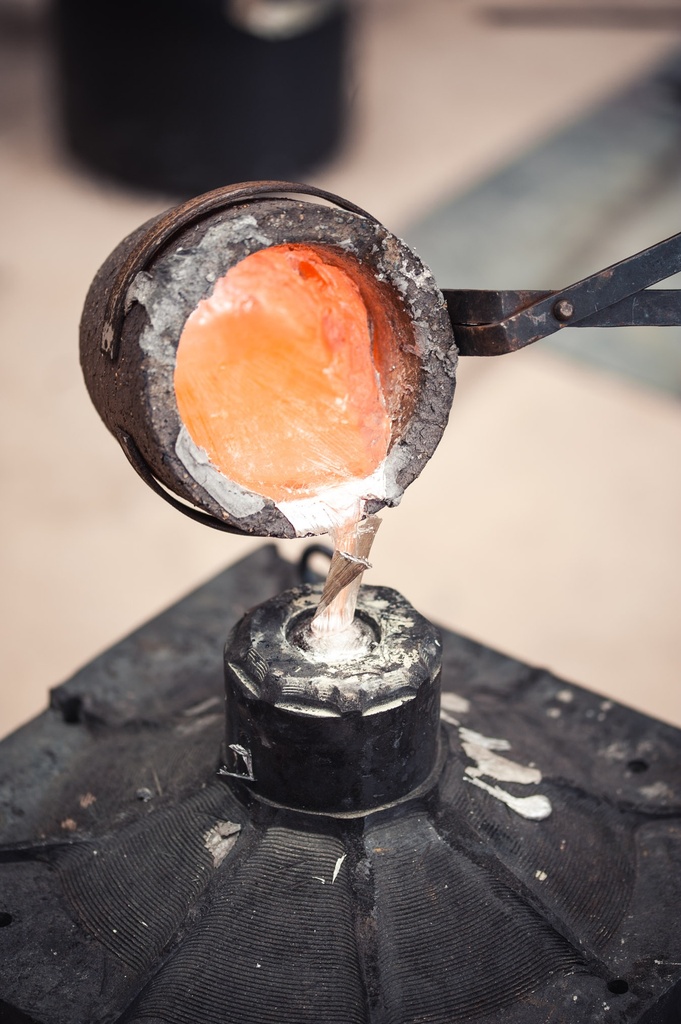

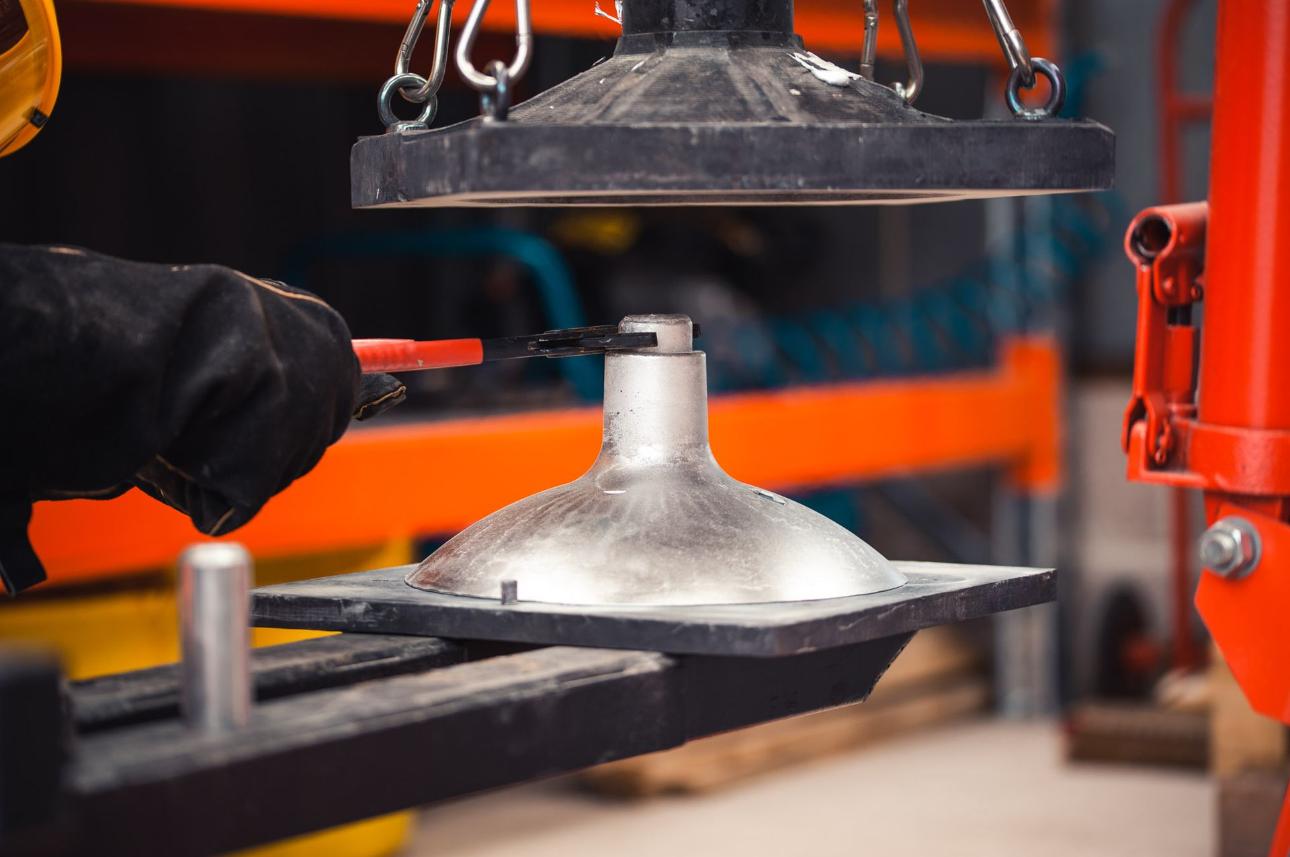

Cast and machined, the product marries artisanal craftsmanship with a contemporary design, the innovative shade allows for both technical and decorative optics, additionally more traditional E27 light sources.
It can be used individually or in clusters to create dynamic lighting arrangements.
Key Features

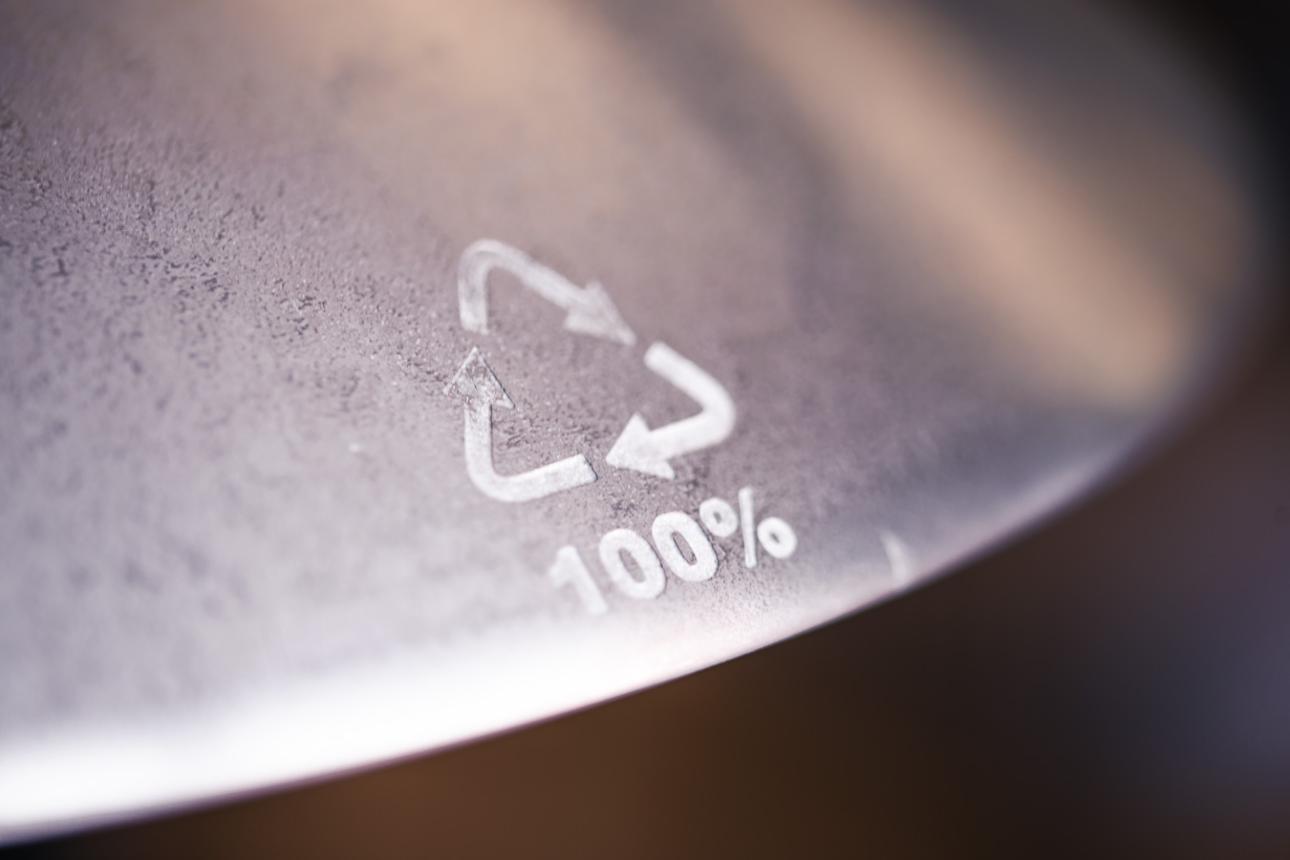

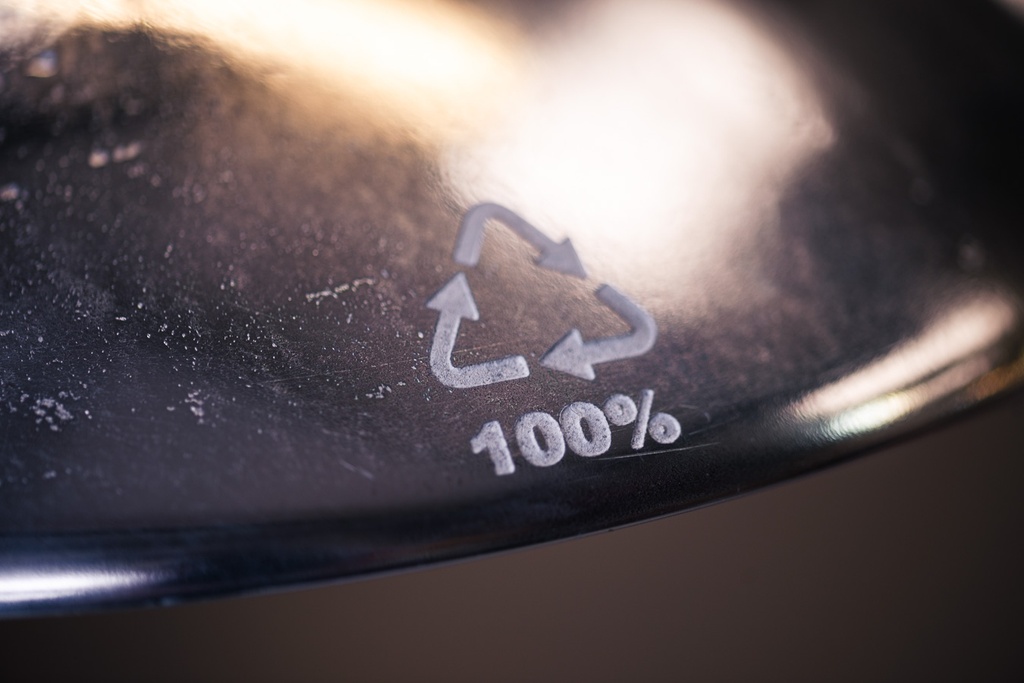

• Sustainable construction: made from recycled aluminium.

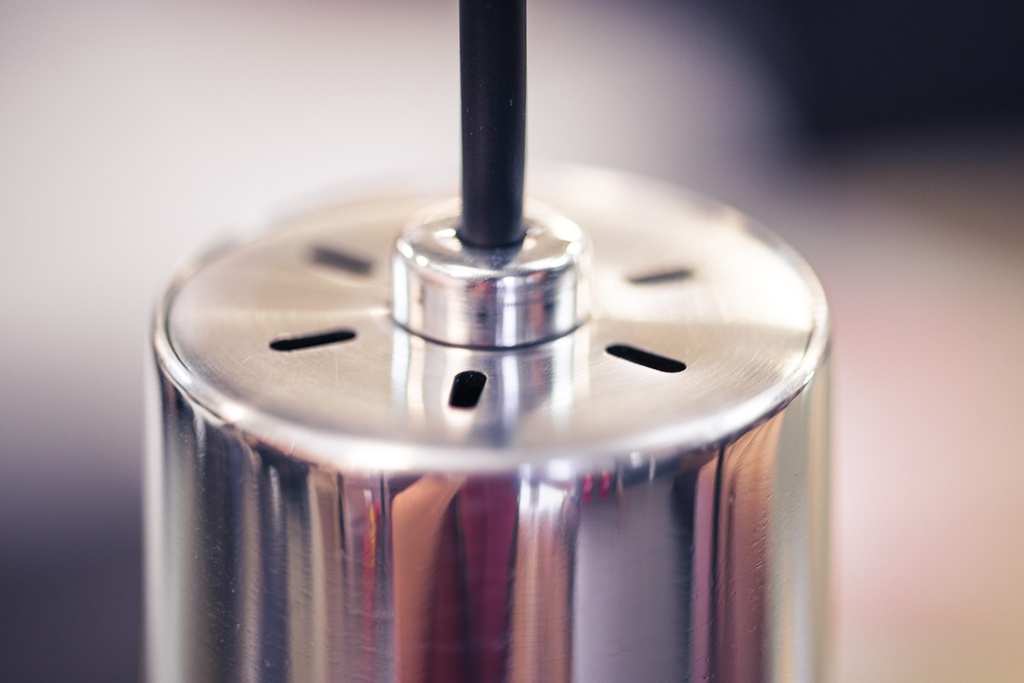

• Height adjustable suspension with various cable colour options.
• Static and warm dim LED options available with technical optics providing Very Narrow to Wide Flood beam distributions.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
Pendant shade manufactured from recycled aluminium, for enhancing dining, workspace and feature areas.
Product Description
The Cast Light Pendant (CLP) is manufactured entirely from Stoane Lighting's recycled waste aluminium stream, avoiding the need for off-site recycling and manufactured entirely in house.
Cast and machined, the product marries artisanal craftsmanship with a contemporary design, the innovative shade allows for both technical and decorative optics, additionally more traditional E27 light sources.
It can be used individually or in clusters to create dynamic lighting arrangements.
Key Features
• Sustainable construction: made from recycled aluminium.
• Height adjustable suspension with various cable colour options.
• Static and warm dim LED options available with technical optics providing Very Narrow to Wide Flood beam distributions.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
CLP
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions. Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
9mm LES COB
Warm Dim
Initial output
SL90 11.8W 33.8Vf at 350mA
2700K • 1822lm • 154lm/W
3000K • 1908lm • 161lm/W
3500K • 1929lm • 163lm/W
4000K • 1919lm • 162lm/W
SL98 10.6W 30.4Vf at 350mA
2400K • 1085lm • 102lm/W
2700K • 1205lm • 113lm/W
3000K • 1288lm • 121lm/W
3500K • 1313lm • 124lm/W
4000K • 1352lm • 127lm/W
90 CRI 8.6W 34.7Vf at 250mA
3000K • 864lm • 94.9lm/W
Light distribution
Very Narrow 17º
Narrow 18.6°
Medium 26.1º
Flood 36.2º
Wide Flood 45.5º
Full 129.1º
Very Narrow 17.7º
Narrow 18.4°
Medium 25.8º
Flood 36.7º
Wide Flood 47.2º
Full 130º
Lumen maintenance
L90 B0 in excess of 94,000 hours (9mm LES COB)
Colour consistency
2 SDCM (9mm LES COB), 3 SDCM (Warm Dim)
IP rating
IP20
Weight
1kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 1Kg
Weight: 0.39kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
9mm LES COB
SL90 (1908lm initial output at 3000K)
9mm LES COB
SL98 (1288lm initial output at 3000K)
Warm Dim
95 CRI (864lm initial output at 3000K)
Photometry
To access our photometry files please view this page from a desktop device.
