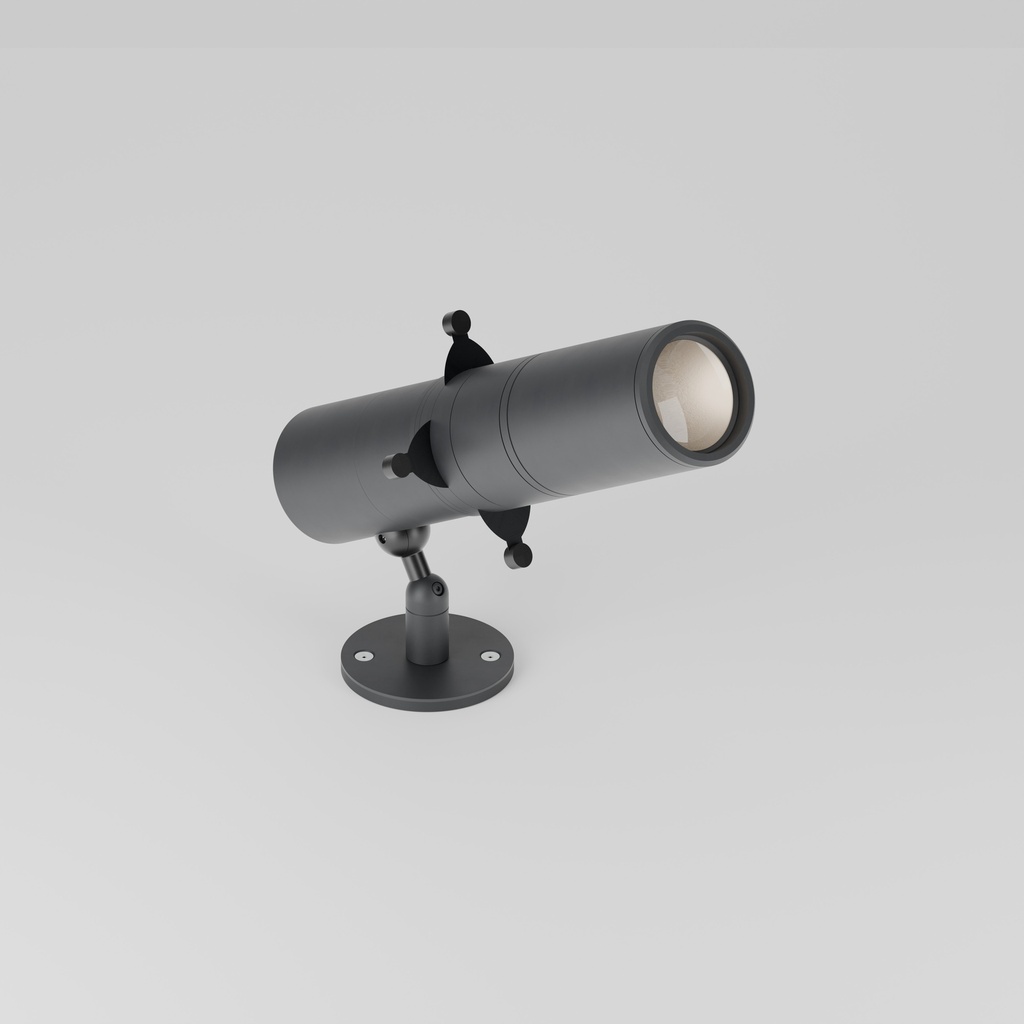

ZTA.50.Surface.Framer
Modular
high-performance, surface mounted spotlight system, for interior architectural
applications such as Museums, Galleries and Retail. Engineered for exceptional
durability, maintainability, re-manufacturability, and recyclability, this
spotlight sets a new standard for sustainable design.
Product
Description
ZTA.50.Surface.Framer
is constructed from extruded and precision-machined recycled aluminium, the
spotlight features an anodised and powder-coated finish for enhanced durability
and aesthetics. Easily interchangeable between Framing projector, fixed
optic, Wall Wash and Zoom options.
Fixed uses a
Wide Flood spread for long throws. Adjustable uses a Zoom lens to allow the
user to narrow in on very fine details. Both are capable of holding a gobo.
Key Features
• Sustainable
construction: made from recycled aluminium with a long-lasting anodised and
powder-coated finish.
• Framing
attachment can be easily swapped to fixed optics, Zoom and Wall Wash.
• The
easy-to-adjust fins allow for precision positioning to sharply define light on
pieces of artwork.
• Versatile
adjustment: 363° pan rotation and 130° tilt with a lockable spot.
•
High-performance lighting: up to 98 CRI LEDs with interchangeable optical
systems.
• Advanced
dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Learn more about sl90 and sl98
Modular
high-performance, surface mounted spotlight system, for interior architectural
applications such as Museums, Galleries and Retail. Engineered for exceptional
durability, maintainability, re-manufacturability, and recyclability, this
spotlight sets a new standard for sustainable design.
Product Description
ZTA.50.Surface.Framer
is constructed from extruded and precision-machined recycled aluminium, the
spotlight features an anodised and powder-coated finish for enhanced durability
and aesthetics. Easily interchangeable between Framing projector, fixed
optic, Wall Wash and Zoom options.
Fixed uses a
Wide Flood spread for long throws. Adjustable uses a Zoom lens to allow the
user to narrow in on very fine details. Both are capable of holding a gobo.
Key Features
• Sustainable
construction: made from recycled aluminium with a long-lasting anodised and
powder-coated finish.
• Framing
attachment can be easily swapped to fixed optics, Zoom and Wall Wash.
• The
easy-to-adjust fins allow for precision positioning to sharply define light on
pieces of artwork.
• Versatile
adjustment: 363° pan rotation and 130° tilt with a lockable spot.
•
High-performance lighting: up to 98 CRI LEDs with interchangeable optical
systems.
• Advanced
dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
ZTA.50 products are easily interchangeable between fixed focus optic, Wall Wash, Zoom and Framing projectors:
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.50.SURFACE - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Technical
Supply
Remote constant current LED driver required
Light source
9mm LES COB
Initial output
SL98 10.6W 30.4Vf at 350mA
2700K • 1205lm • 113lm/W
3000K • 1288lm • 121lm/W
3500K • 1313lm • 124lm/W
4000K • 1352lm • 127lm/W
Light distribution
Adjustable 10° to 28.9°
Fixed 49.3°
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
1kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 1kg
Beam Information
These files represent the highest available initial output for each light source in 3000K. Other CRI and colour temperatures are available.
While this product is optimised for use with a 9mm LES light source, it can also be attached to a ZTA.50 product with a 6mm LES light source as an accessory/attachment:
