ZTA.35.Surface.Framer
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Easily interchangeable between fixed, Zoom optics and framer attachments.
Product Description
ZTA.35.Surface.Framer is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Fixed uses a Wide Flood spread for long throws. Adjustable uses a Zoom lens to allow the user to narrow in on very fine details. Both are capable of holding a gobo.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish.
• Framing attachment can be easily swapped to fixed optics, Zoom and Wall Wash.

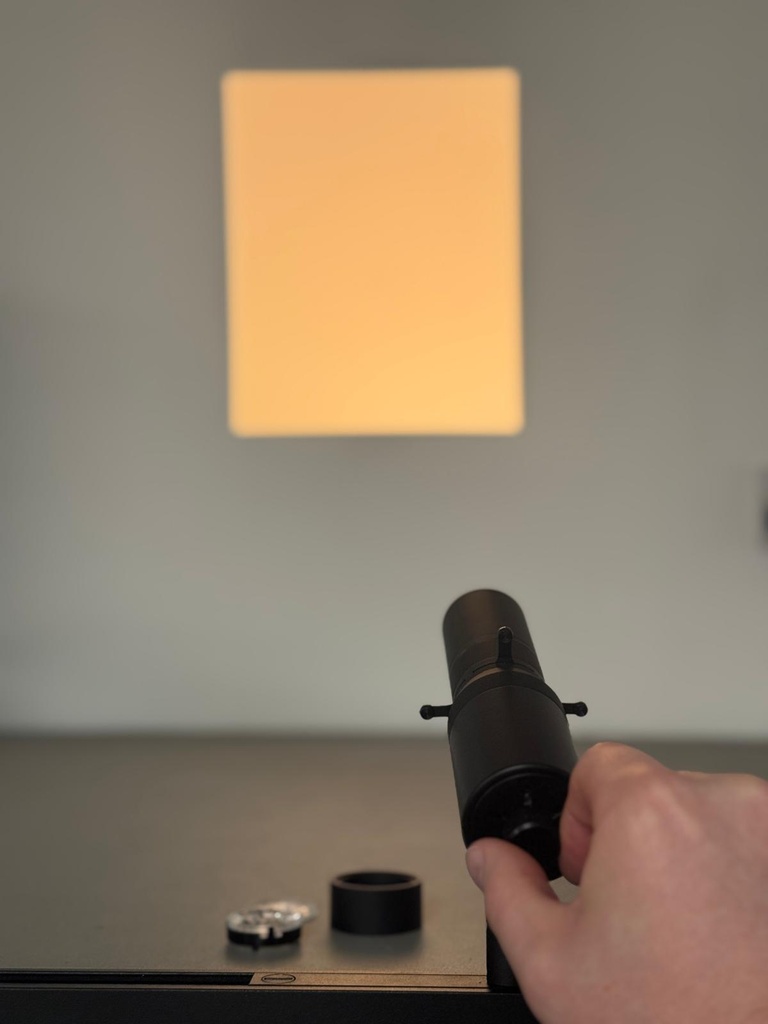

• The easy-to-adjust fins allow for precision positioning to sharply define light on pieces of artwork.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Learn more about sl90 and sl98
Modular high-performance, surface mounted spotlight system, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this spotlight sets a new standard for sustainable design.
Easily interchangeable between fixed, Zoom optics and framer attachments.
Product Description
ZTA.35.Surface.Framer is constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Fixed uses a Wide Flood spread for long throws. Adjustable uses a Zoom lens to allow the user to narrow in on very fine details. Both are capable of holding a gobo.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish.
• Framing attachment can be easily swapped to fixed optics, Zoom and Wall Wash.
• The easy-to-adjust fins allow for precision positioning to sharply define light on pieces of artwork.
• Versatile adjustment: 363° pan rotation and 130° tilt with a lockable spot.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.

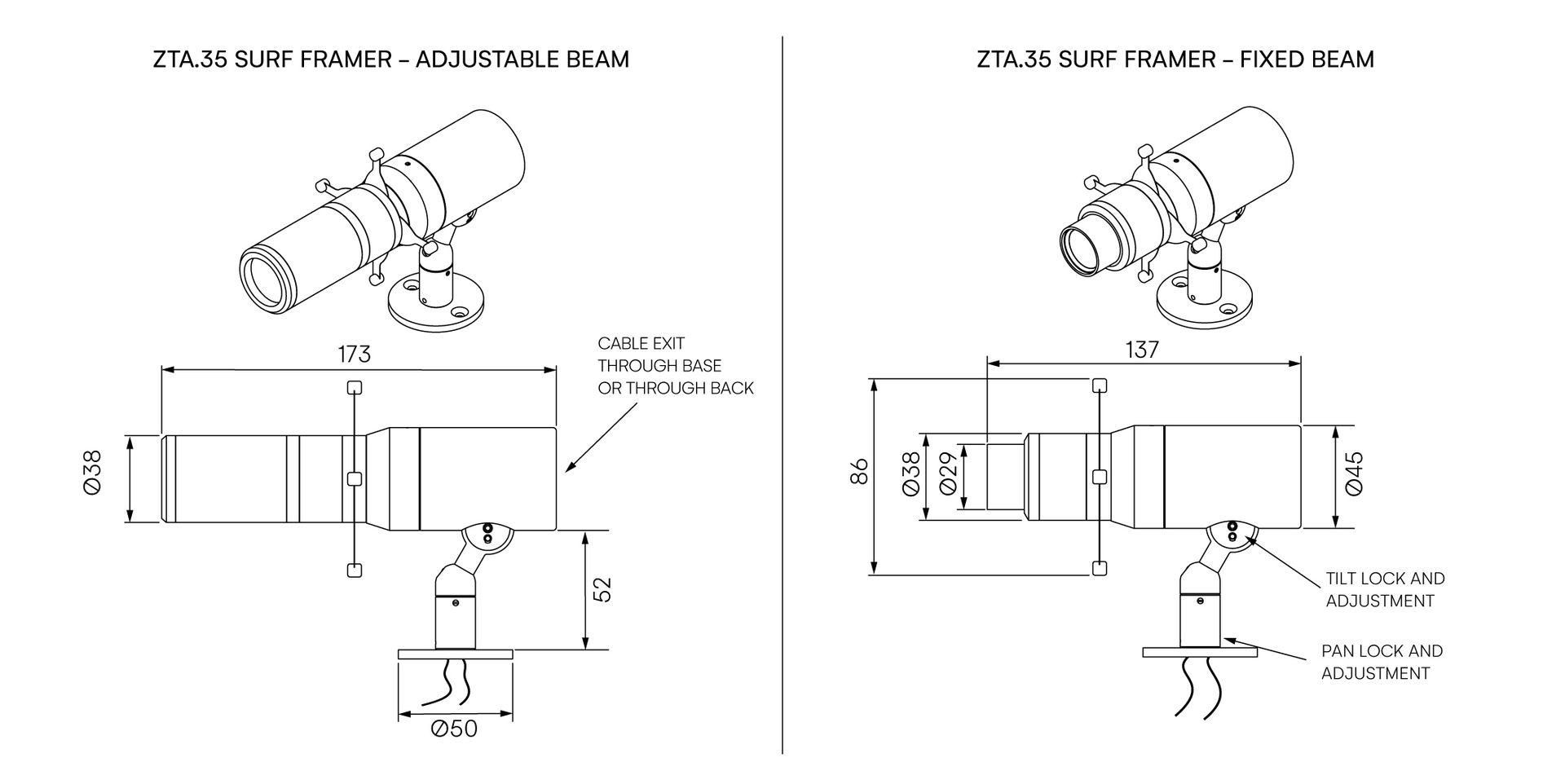

ZTA.35 products are easily interchangeable between fixed focus optic, Zoom and Framing projectors:
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
ZTA.35.SURFACE.framer (adjustable)
zta.35.mains track.framer (fixed)
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
ZTA.35.SURFACE - 2.6
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
4mm LES COB
6mm LES COB
Initial output
SL98 4.3W 17.2Vf at 250mA
2700K • 418lm • 97lm/W
3000K • 446lm • 104lm/W
3500K • 446lm • 104lm/W
4000K • 471lm • 110lm/W
SL98 8.6W 34.4Vf at 250mA
2700K • 863lm • 100lm/W
3000K • 923lm • 107lm/W
3500K • 923lm • 107lm/W
4000K • 974lm • 113lm/W
Light distribution
Adjustable 15.7º - 32.5º
Fixed 50.2°
Adjustable 15.6º - 31.7º
Fixed 50°
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.51kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.31kg
Beam Information
These files represent the highest available initial output for each light source in 3000K. Other CRI and other colour temperatures are available.
Accessories
Customisable Gobo
Logo size: Ø14mm max
Order no. ITY-017769 (holder)
Please download the data sheet
here for more information.
Gel diffuser used for softening beam
Order no. ITY-017787 (gel)
Order no. ITY-017787 (holder)
Photometry
To access our photometry files please view this page from a desktop device.
