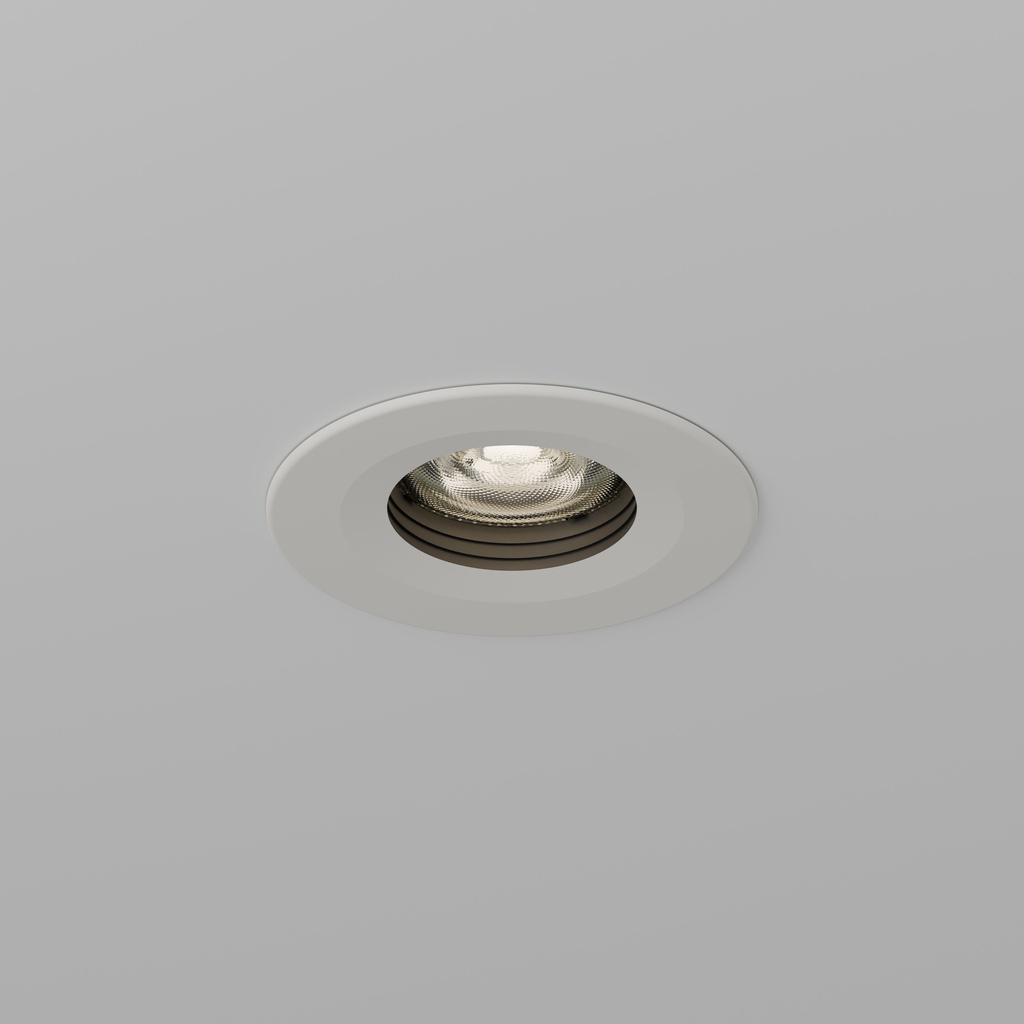

LI.DL
Modular
high-performance, recessed fixed downlight, for interior architectural
applications such as Museums, Galleries, Retail and
Workplace environments. Engineered for exceptional durability,
maintainability, re-manufacturability, and recyclability, this downlight sets a
new standard for sustainable design.
Product
Description
Lowering the
impact of manufacturing: revisiting arguably the most ubiquitous luminaire, the
downlight.
LI.DL is the
result of our mission to better ways to make the best equipment possible whilst

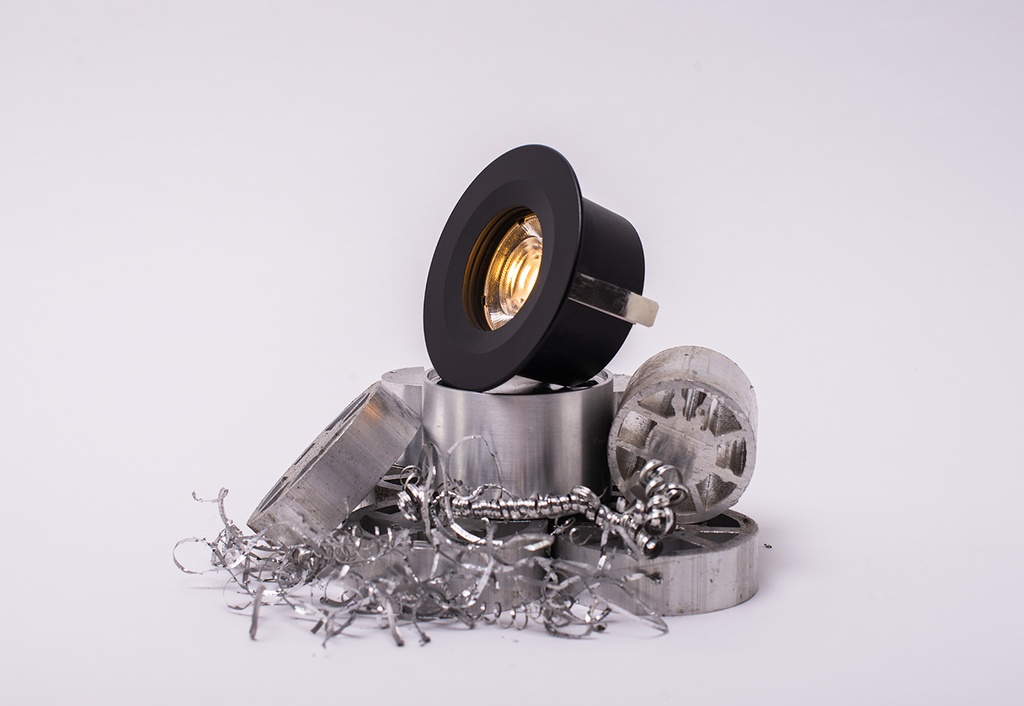

doing the least harm. It is recast in our in-house forge from unavoidable
workshop offcuts.
Designed with
purpose, and first seen at LiGHT24 and featured in the COOLKITLIST 2024, we believe
we have created a luminaire that represents a significant step forward
in responsible lighting manufacture.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and
powder-coated finish. Specialist finishes available on request.
•
High-performance lighting: up to 98 CRI LEDs with interchangeable optical
systems.
• Customisable accessories: can house up to two lens accessories.
• Advanced
dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Learn more about sl90 and sl98
Modular high-performance, recessed fixed downlight, for interior architectural applications such as Museums, Galleries, Retail and Workplace environments. Engineered for exceptional durability, maintainability, re-manufacturability, and recyclability, this downlight sets a new standard for sustainable design.
Product Description
Lowering the
impact of manufacturing: revisiting arguably the most ubiquitous luminaire, the
downlight.
LI.DL is the
result of our mission to better ways to make the best equipment possible whilst
doing the least harm. It is recast in our in-house forge from unavoidable
workshop offcuts.
Designed with
purpose, and first seen at LiGHT24 and featured in the COOLKITLIST 2024, we believe
we have created a luminaire that represents a significant step forward
in responsible lighting manufacture.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and
powder-coated finish. Specialist finishes available on request.
•
High-performance lighting: up to 98 CRI LEDs with interchangeable optical
systems.
• Customisable accessories: can house up to two lens accessories.
• Advanced
dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
li.dL
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LI.DL - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
li.dl (lca)
Technical
Supply
Remote constant current LED driver required
Light source
9mm LES COB
Initial output
SL90 8.2W 33Vf at 250mA
2700K • 1329lm • 161lm/W
3000K • 1392lm • 169lm/W
3500K • 1408lm • 171lm/W
4000K • 1400lm • 170lm/W
SL98 7.4W 29.6Vf at 250mA
2700K • 882lm • 1119lm/W
3000K • 943lm • 127lm/W
3500K • 961lm • 130lm/W
4000K • 990lm • 134lm/W
Light distribution
Narrow 15.6°
Narrow 2 15.7º
Narrow 3 19.6º
Medium 26.8º
Flood 35º
Wide Flood 58º
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.45kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
9mm LES COB
SL90 (1392lm initial output at 3000K)
9mm LES COB
SL98 (943lm initial output at 3000K)
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.45kg
Accessories and Attachments
This product can accept up to 2 x lenses and louvres:
Honeycomb louvre for glare control
Order no. ITY-000394
Soft spread lens to product a soft elliptical beam
Order no. ITY-000439
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000437
Diffuser lens used for softening and widening beams
Order no. ITY-000438
Clear lens can be used as protection from dirt/debris
Order no. ITY-000436
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000441
