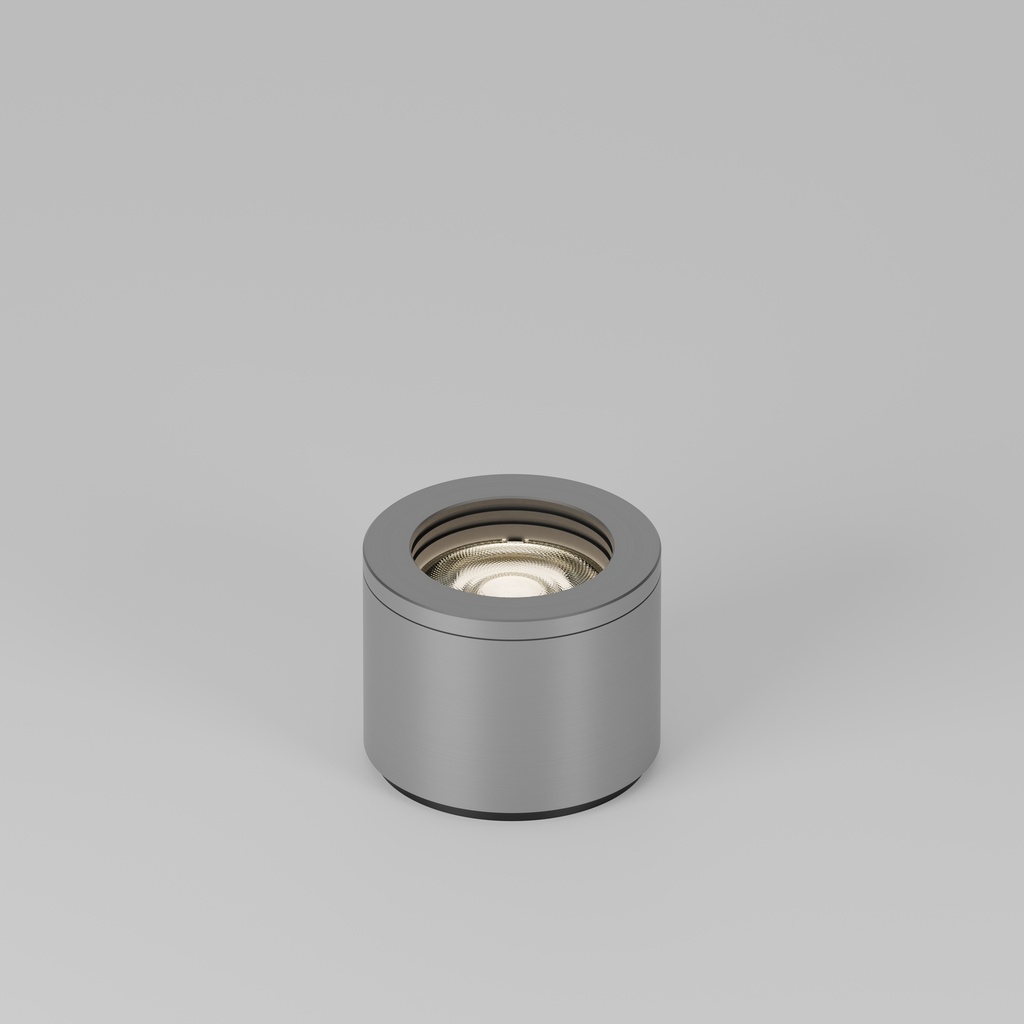

BPX
Modular, high-performance spotlight system, for ceiling, wall and tabletop lighting applications.
Product Description
The BPX is a compact, minimal and modular lighting system that can be easily adapted. BPX is often the building block from which custom fittings are built.
Engineered to accommodate both fixed interchangeable optics with additional lensing accessories, or decorative frosted diffuser options.
Constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed optics can be easily swapped to decorative frosted diffuser options.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Capable of ceiling, wall and table mounting.
6mm LES output up to 1175lm initial
9mm LES output up to 1929lm initial
learn more about sl90 and sl98
Modular, high-performance spotlight system, for ceiling, wall and tabletop lighting applications.
Product Description
The BPX is a compact, minimal and modular lighting system that can be easily adapted. BPX is often the building block from which custom fittings are built.
Engineered to accommodate both fixed interchangeable optics with additional lensing accessories, or decorative frosted diffuser options.
Constructed from extruded and precision-machined recycled aluminium, the spotlight features an anodised and powder-coated finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a long-lasting anodised and powder-coated finish. Specialist finishes available on request.
• Fixed optics can be easily swapped to decorative frosted diffuser options.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 98 CRI LEDs with interchangeable optical systems.
• Capable of ceiling, wall and table mounting.
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
6mm LES COB
9mm LES COB
Initial output
SL90 8W 32Vf at 250mA
2700K • 1087lm • 136lm/W
3000K • 1133lm • 141lm/W
3500K • 1144lm • 143lm/W
4000K • 1175lm • 147lm/W
SL98 8.6W 34.4Vf at 250mA
2700K • 863lm • 100lm/W
3000K • 923lm • 107lm/W
3500K • 923lm • 107lm/W
4000K • 974lm • 113lm/W
SL90 11.8W 33.8Vf at 350mA
2700K • 1822lm • 100lm/W
3000K • 1908lm • 107lm/W
3500K • 1929lm • 107lm/W
4000K • 1919lm • 113lm/W
SL98 10.6W 30.4Vf at 350mA
2700K • 1205lm • 113lm/W
3000K • 1288lm • 121lm/W
3500K • 1313lm • 124lm/W
4000K • 1352lm • 127lm/W
Light distribution
Narrow 12.5°
Narrow 2 13.8º
Medium 25.4º
Flood 36.5º
Wide Flood 56º

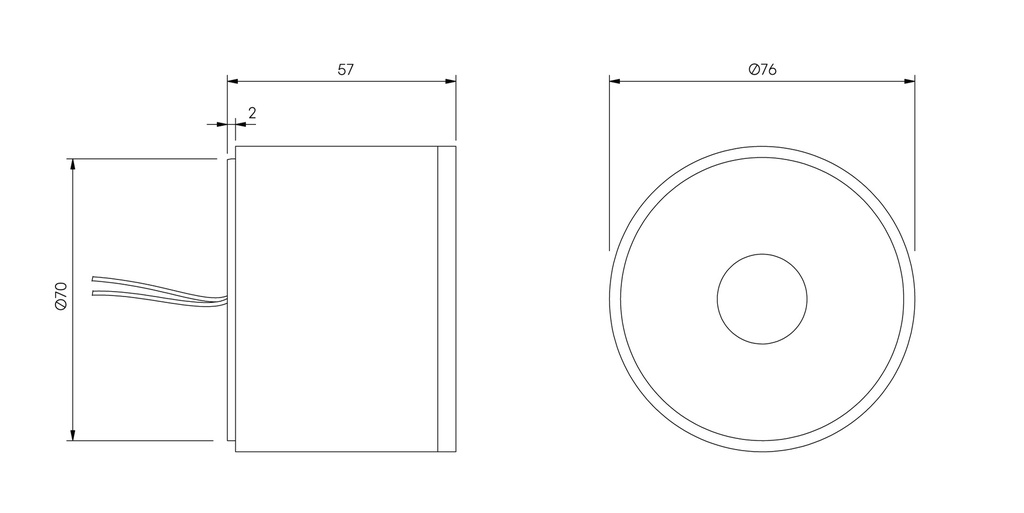

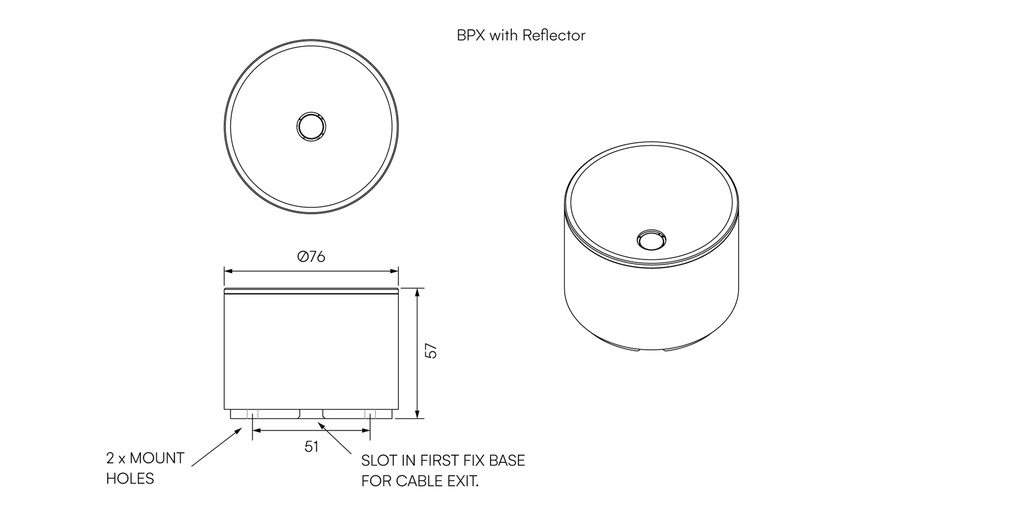

Plain reflector 104.3º
Accessory reflector 105º
Narrow 16.1°
Medium 20.2º
Medium 2 27.4º
Flood 35.1º
Wide Flood 57.2º
Plain reflector 103.2º
Accessory reflector 103.7º

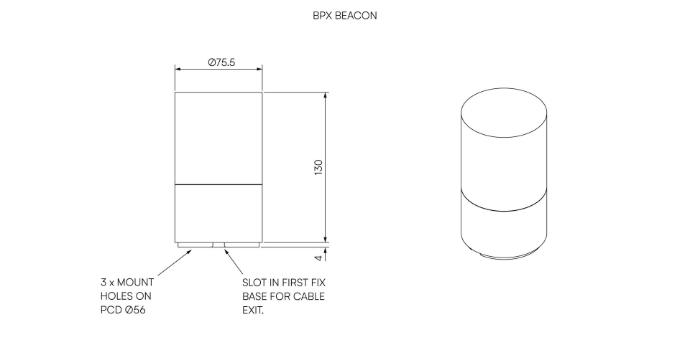

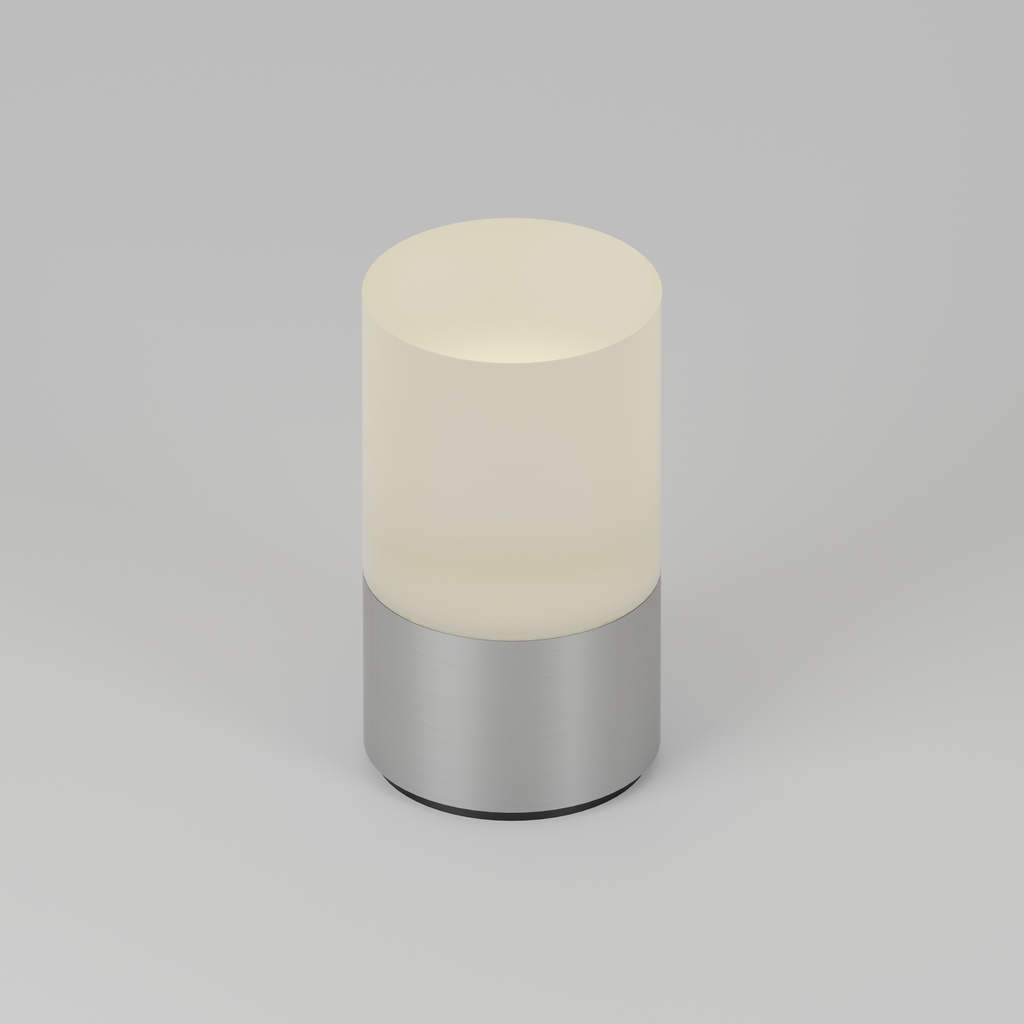

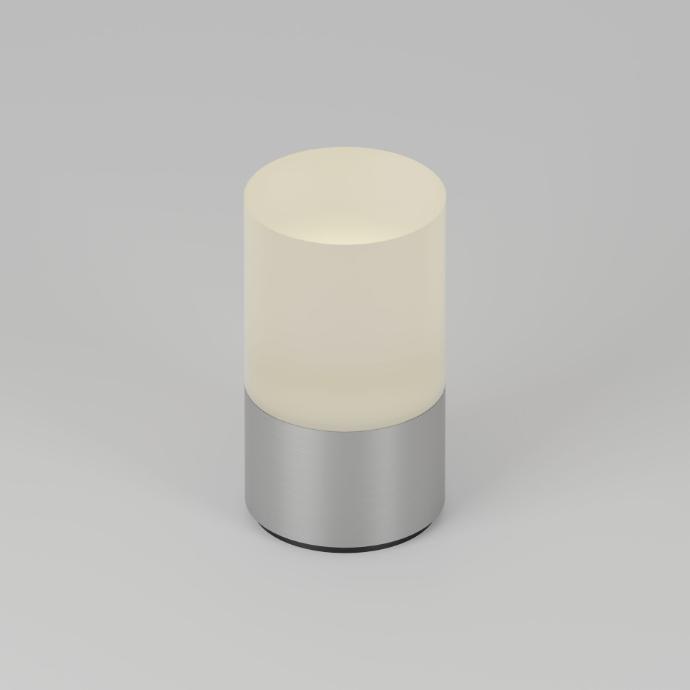

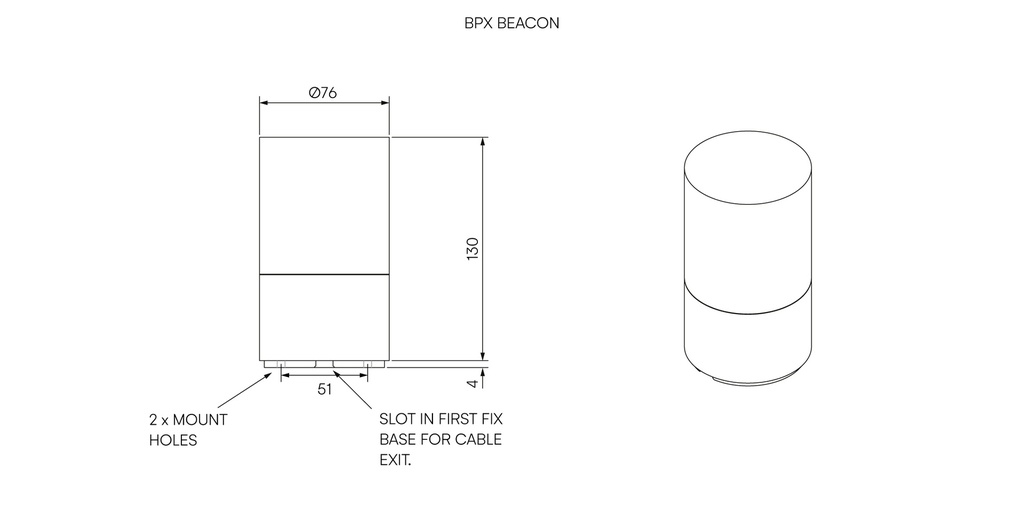

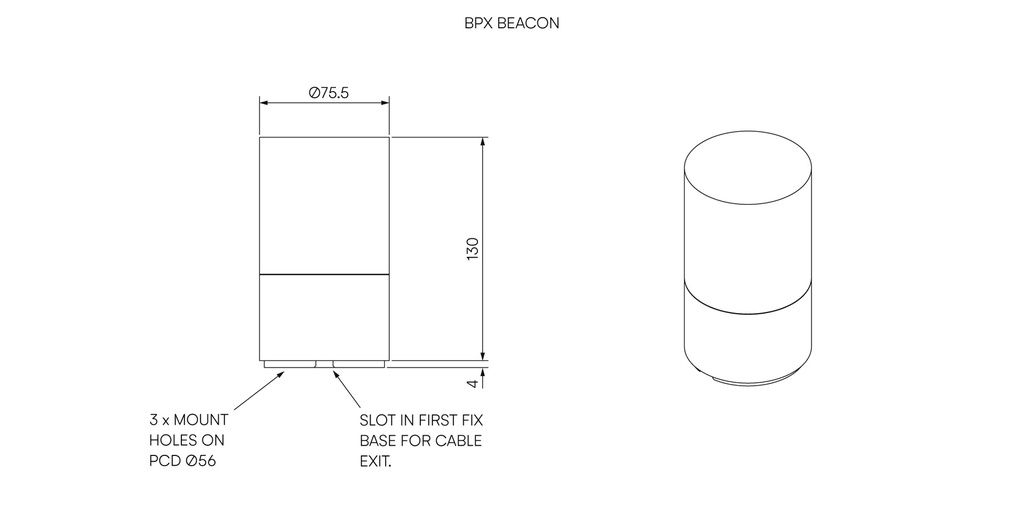

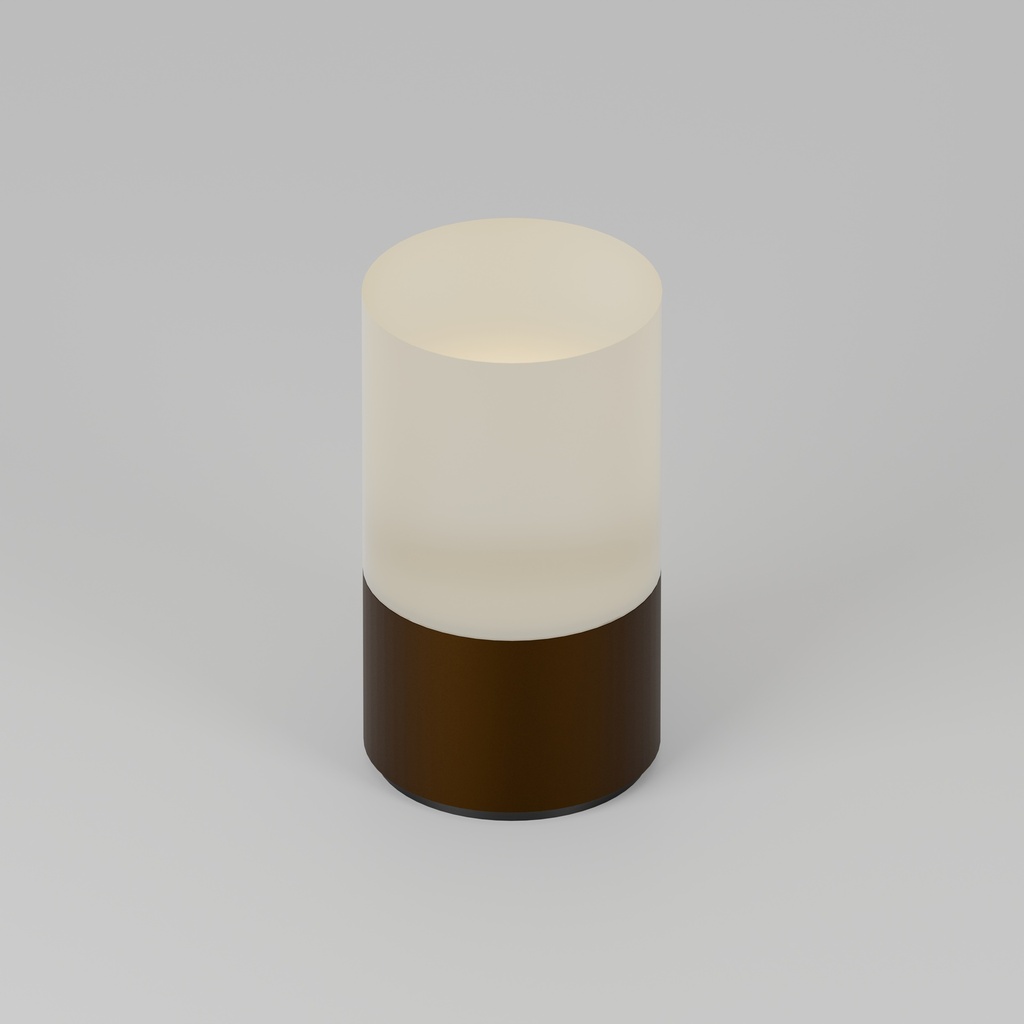

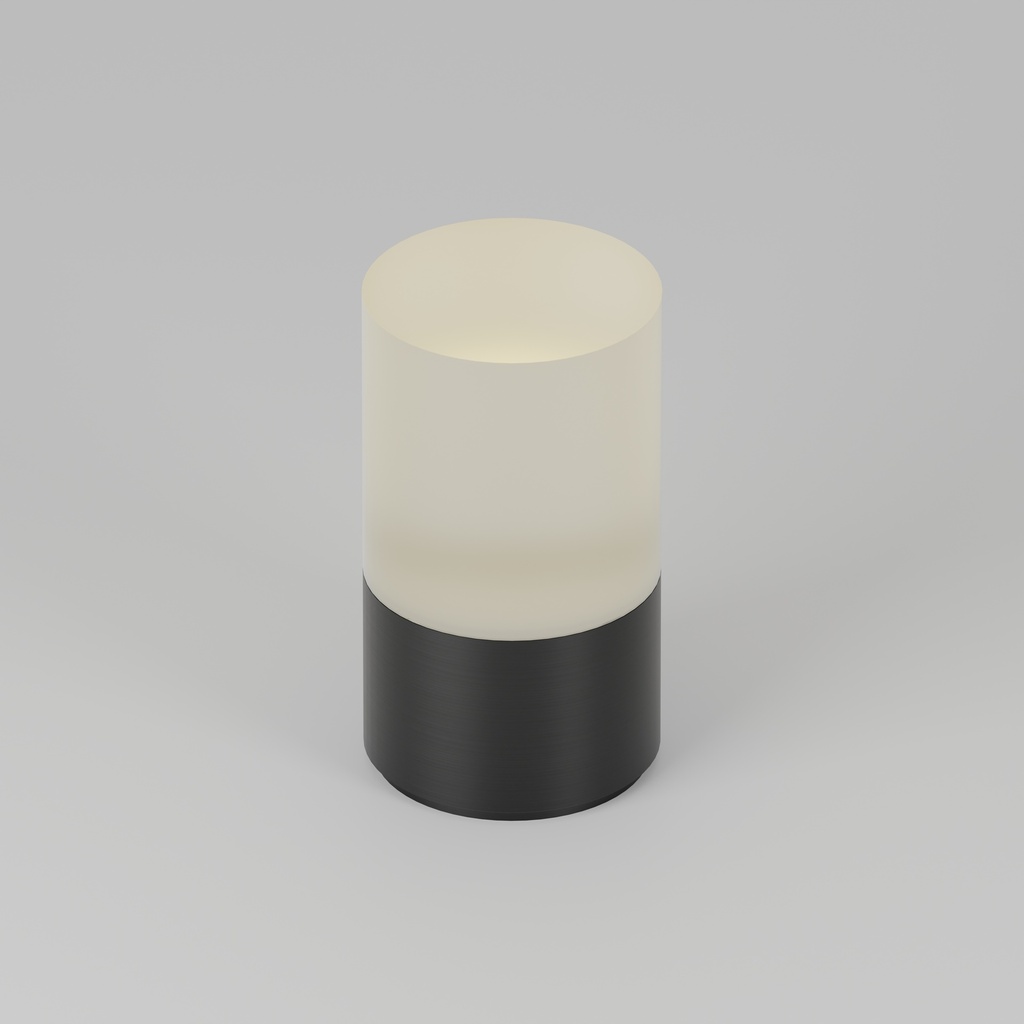

Frosted Beacon
Opalised Beacon
Lumen maintenance
L90 B0 in excess of 94,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP20
Weight
0.4kg
Lumen
Maintenance: L70 B0 F0 50,000 hours
Colour
Consistency: 1 x 2 SDCM
Colour Maintenance: ± 0.003 ∆u’v’
IP Rating: IP20
Weight: 0.4kg
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
6mm LES COB
SL90 (1133lm initial output at 3000K)
6mm LES COB
SL98 (923lm initial output at 3000K)
9mm LES COB
SL90 (1908lm initial output at 3000K)
9mm LES COB
SL98 (1288lm initial output at 3000K)

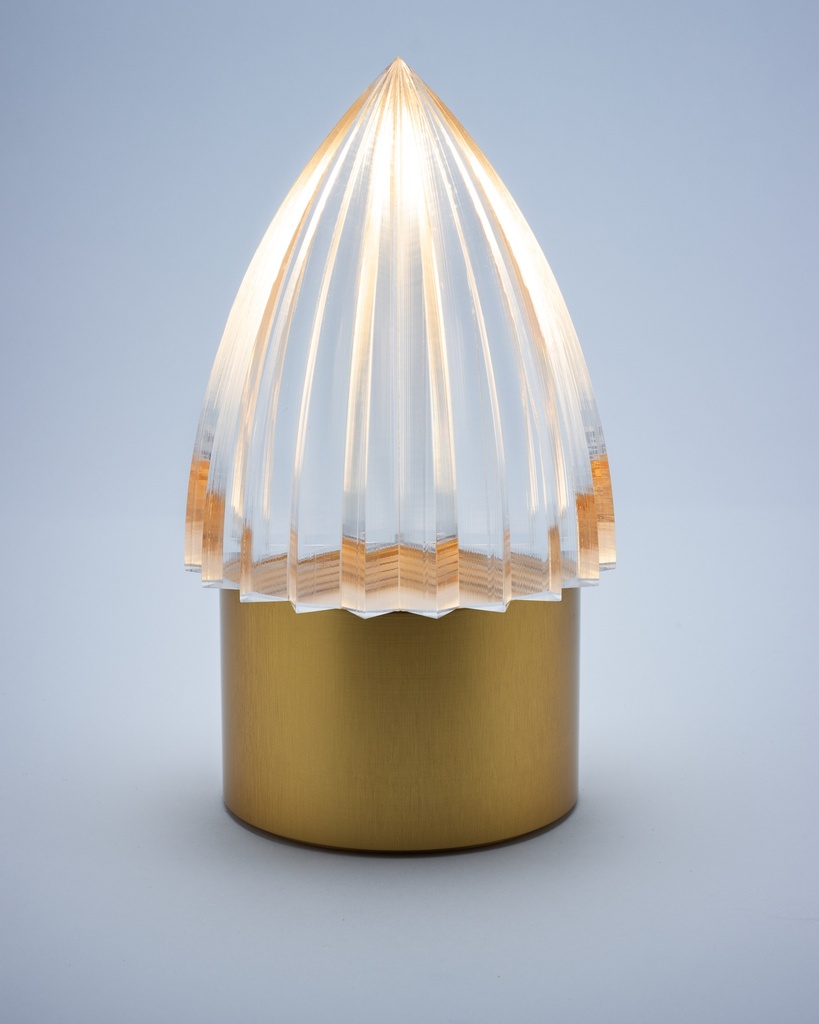

Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
Photometry
To access our photometry files please view this page from a desktop device.
Accessories

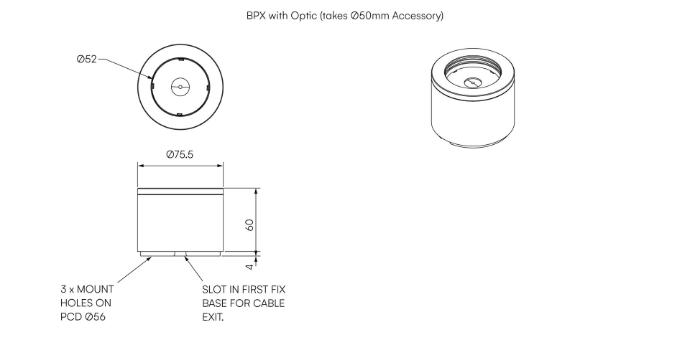

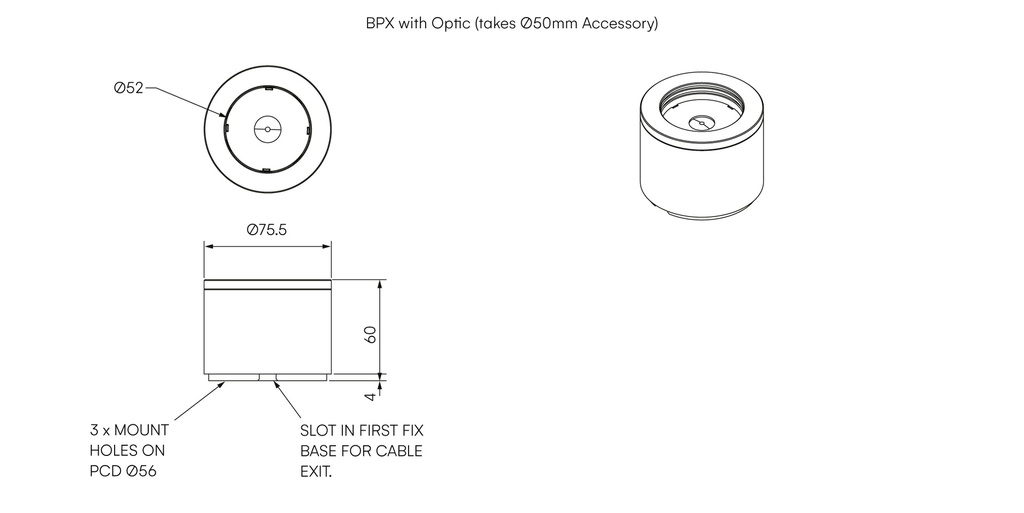

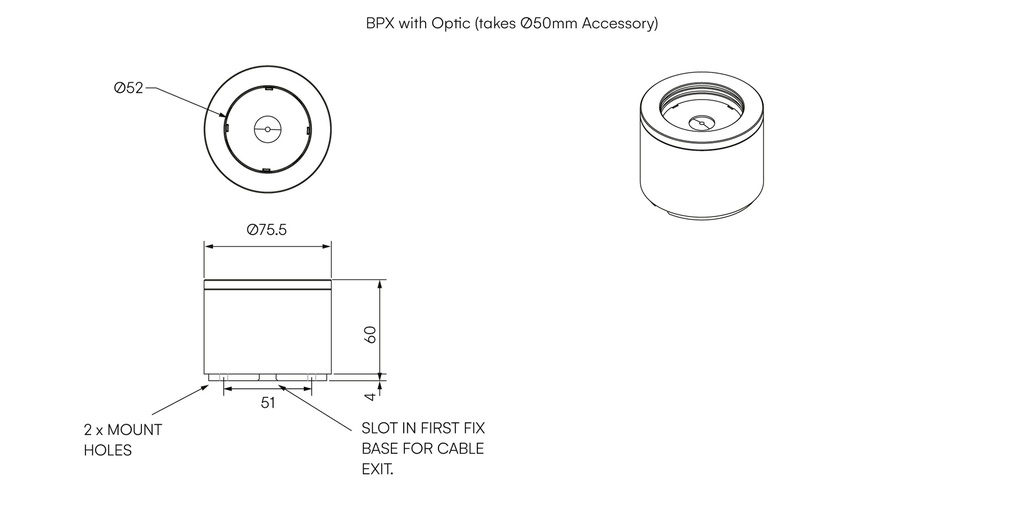

This product can accept 1 x Ø50mm lens or louvre on version with optics:
Honeycomb louvre for glare control
Order no. ITY-000394
Soft spread lens to product a soft elliptical beam
Order no. ITY-000439
Sharp spread lens to produce a pronounced elliptical beam
Order no. ITY-000437
Diffuser lens used for softening and widening beams
Order no. ITY-000438
Clear lens can be used as protection from dirt/debris
Order no. ITY-000436
Stipple lens used for softening beams and removing lens artifacts
Order no. ITY-000441
