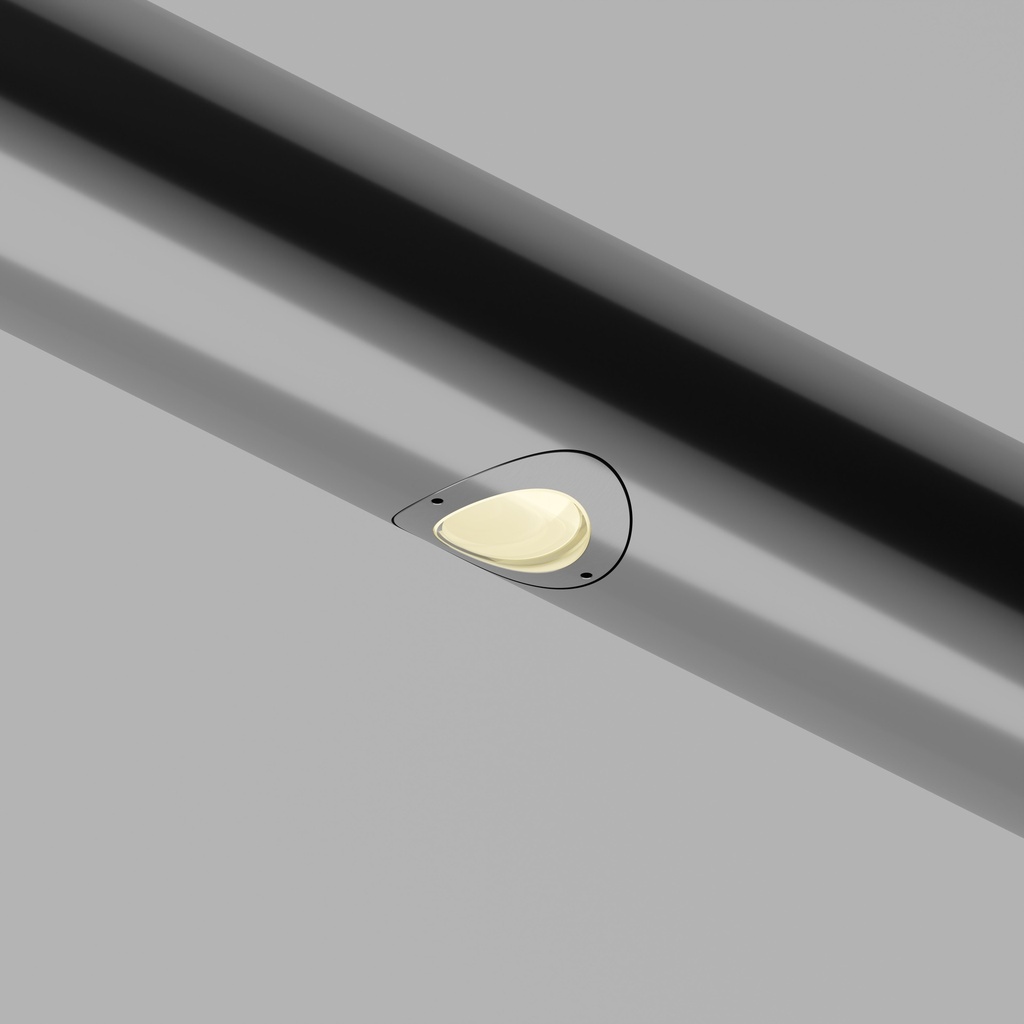

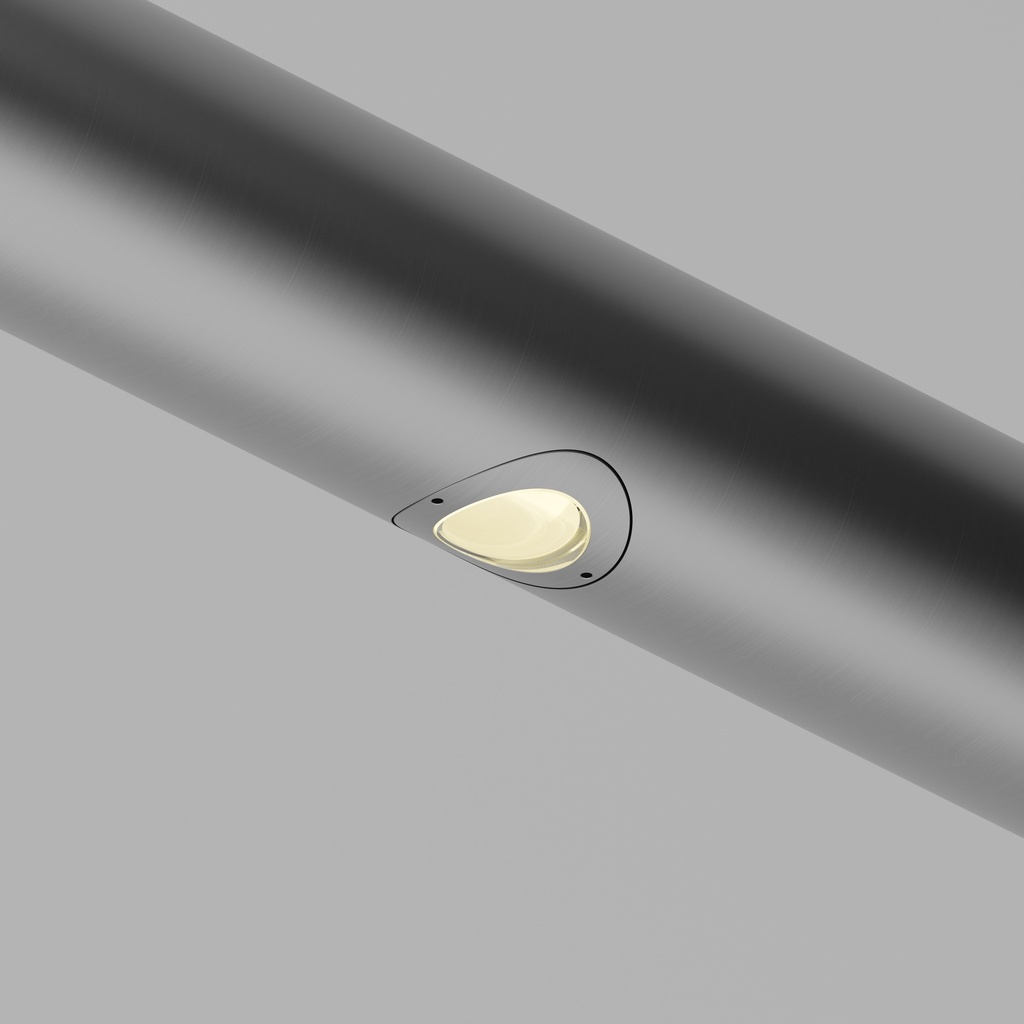

Indehandrail Module

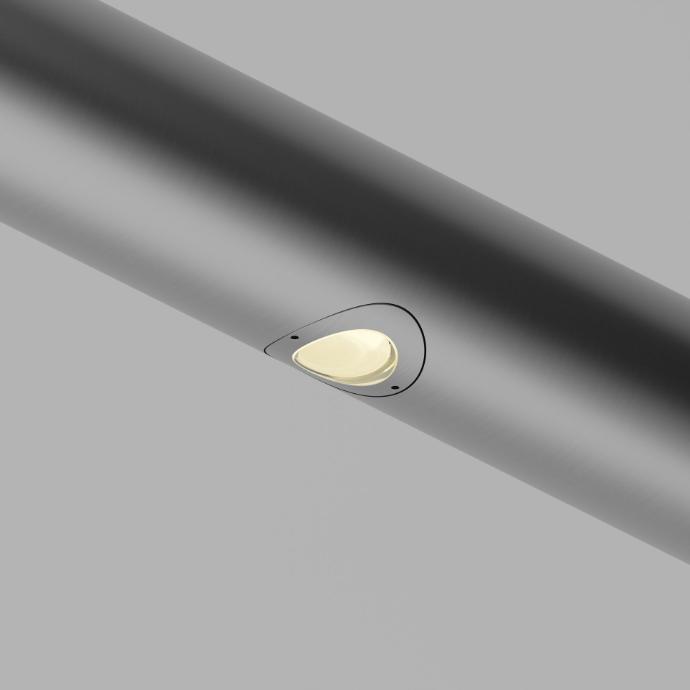

Compact LED module designed to be integrated into a handrail, providing safe and effective pathway illumination.
Product Description

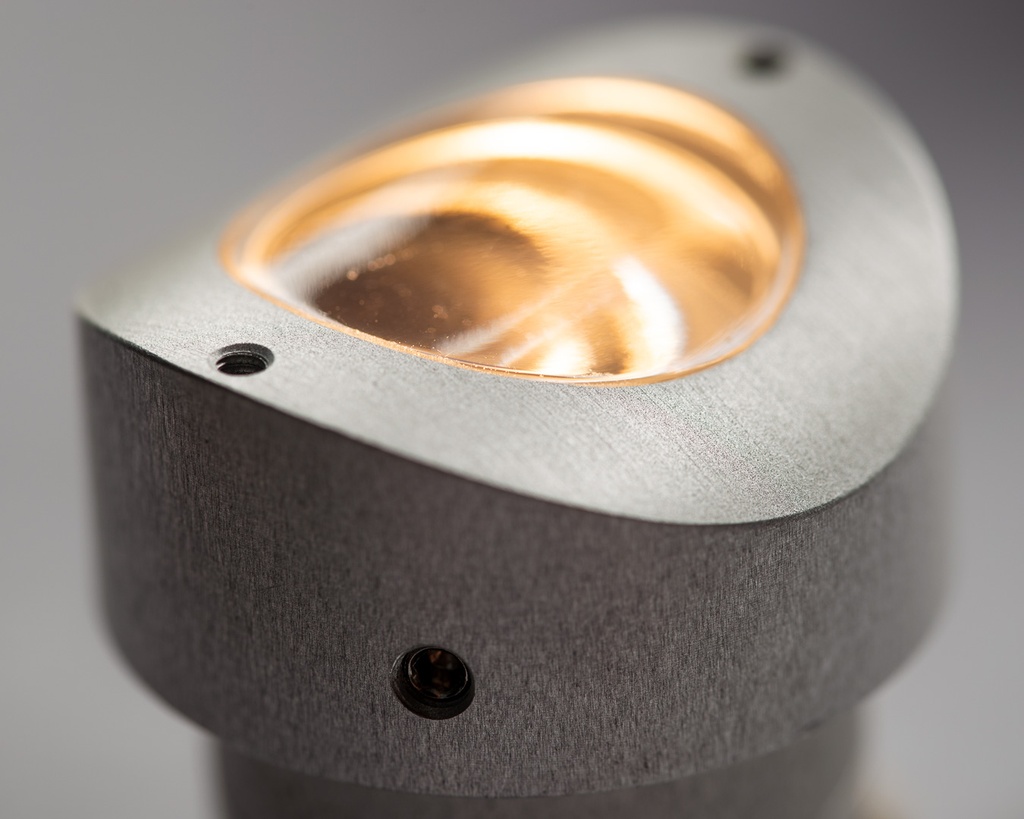

The Indehandrail Module is a low-profile, high-performance lighting component with customised glass optics to provide a soft beam of light. Also available with a mask accessory to avoid light spill onto walls or balustrades.
Constructed from precision-machined recycled aluminium, the system features an anodised and powder-coated finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised finish. Specialist finishes available on request.
• Stainless Steel, Brass and Bronze bezel options available on request.
• Specialist glass lenses for soft wide distribution and additional shield option to limit spill light.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs
Compact LED module designed to be integrated into a handrail, providing safe and effective pathway illumination.
Product Description
The Indehandrail Module is a low-profile, high-performance lighting component with customised glass optics to provide a soft beam of light. Also available with a mask accessory to avoid light spill onto walls or balustrades.
Constructed from precision-machined recycled aluminium, the system features an anodised and powder-coated finish for enhanced durability and aesthetics.
Key Features
• Sustainable construction: made from recycled aluminium with a weather resistant long-lasting anodised finish. Specialist finishes available on request.
• Stainless Steel, Brass and Bronze bezel options available on request.
• Specialist glass lenses for soft wide distribution and additional shield option to limit spill light.
• Advanced dimming options: DALI, 0-10V, DMX and Wireless dimming, down to 0.1%.
• High-performance lighting: up to 97 CRI LEDs
Compliance
Environmental
TM65.2
CIBSE’s TM65.2 provides a calculation methodology to assess the embodied carbon in lighting products.
TM66
CIBSE’s TM66 includes a calculator called the Circular Economy Assessment Method (CEAM). An independent metric assessing a luminaire’s Circular Economy credentials in terms of product design, materials, manufacturing and ecosystem.
Indehandrail Module - 2.7
LCA and EPD
A report containing Life Cycle Assessment results, including environmental impacts across the full life cycle of the product. Impacts cover a wide range of effects on the environment, in addition to carbon emissions.
Please contact the Specifier Support team should your project have a requirement for additional environmental reporting. For more information, please click here.
Technical
Supply
Remote constant current LED driver required
Light source
SL Star
Initial output
95 CRI 2W 2.8Vf at 700mA
2700K • 179lm • 90lm/W
3000K • 192lm • 96lm/W
3500K • 204lm • 102lm/W
4000K • 219lm • 110lm/W
Light distribution
Clear glass, no mask 71.4º x 93.4°
Clear glass, with mask 63.2° x 92.8º
Diffused glass, no mask 74° x 85.4º
Diffused glass, with mask 68.6° x 85.3º
Lumen maintenance
L70 B50 >66,000 hours
Colour consistency
2 SDCM
Colour maintenance
± 0.007 ∆u’v’
IP rating
IP66
Weight

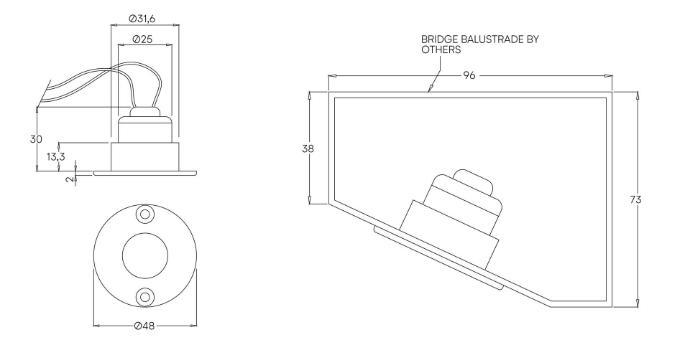

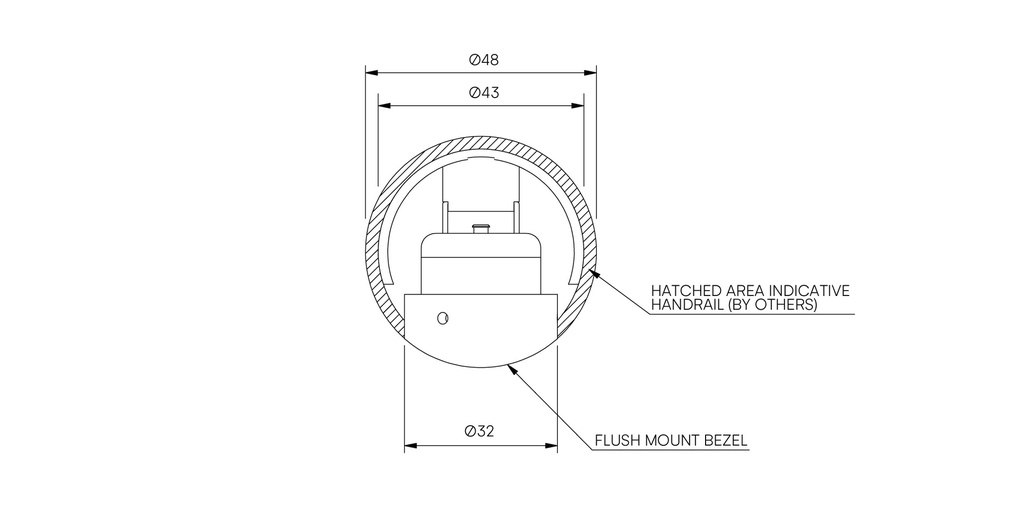

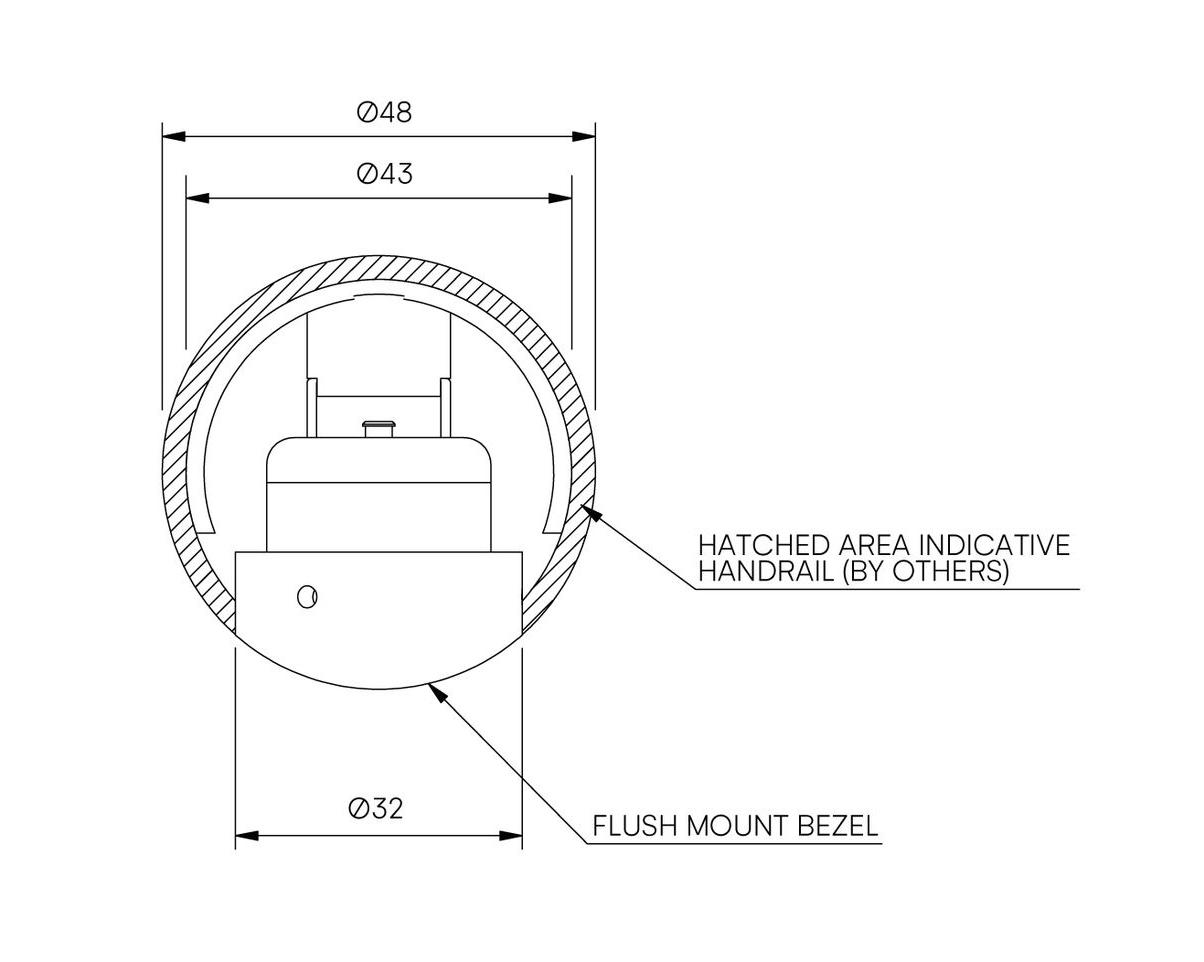

Cut out
0.07kg
Ø33mm
Lumen Maintenance: L70 B 50 >66,000 hours
IP Rating: IP66
Weight: 0.07kg
Cut out: Ø33mm
Photometry
These files represent the highest available initial output for each light source in 3000K. Lower outputs and other colour temperatures are available.
95 CRI (192lm initial output at 3000K)
BUG Report
The BUG rating is used to describe distribution and intensity of light from a luminaire. It is often used to establish performance of exterior luminaires and to provide specifications for luminaires on lighting schemes.
Clear glass, no mask
Clear glass, with mask
Diffused glass, no mask
Diffused glass, with mask
Photometry
To access our photometry files please view this page from a desktop device.
Derivatives
We can adapt our fittings to suit your specific needs, here are some examples of what we have done before.
Related Projects

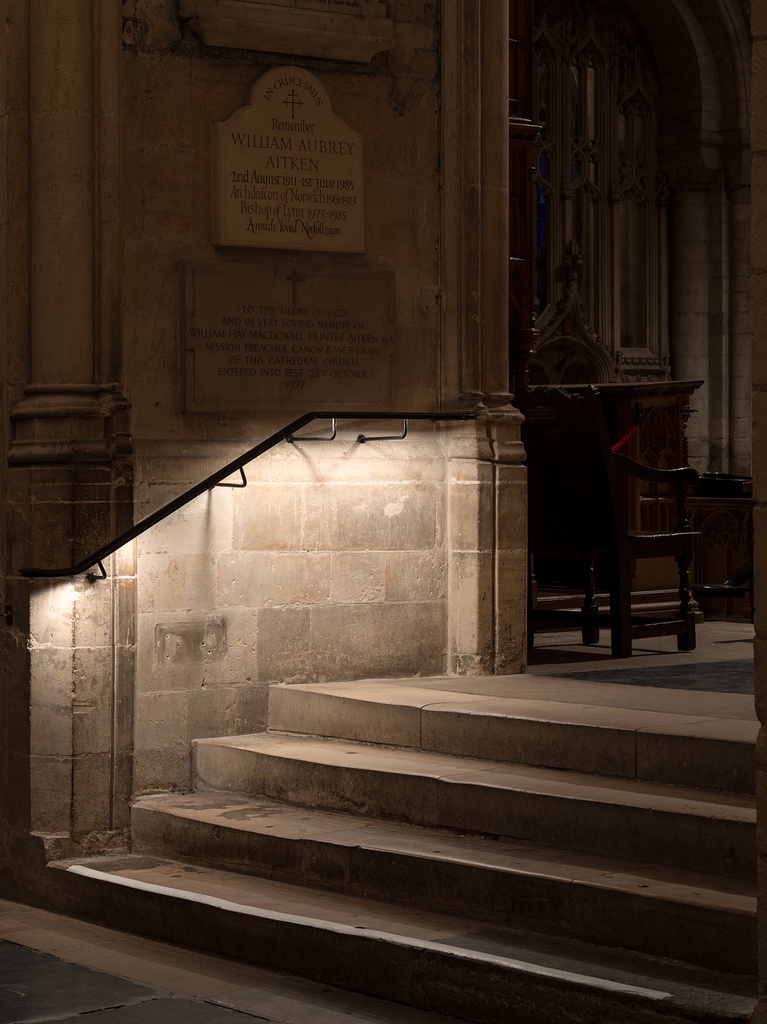

Norwich Cathedral
Lighting Design: Speirs Major
Photography: James Newton Photographs
